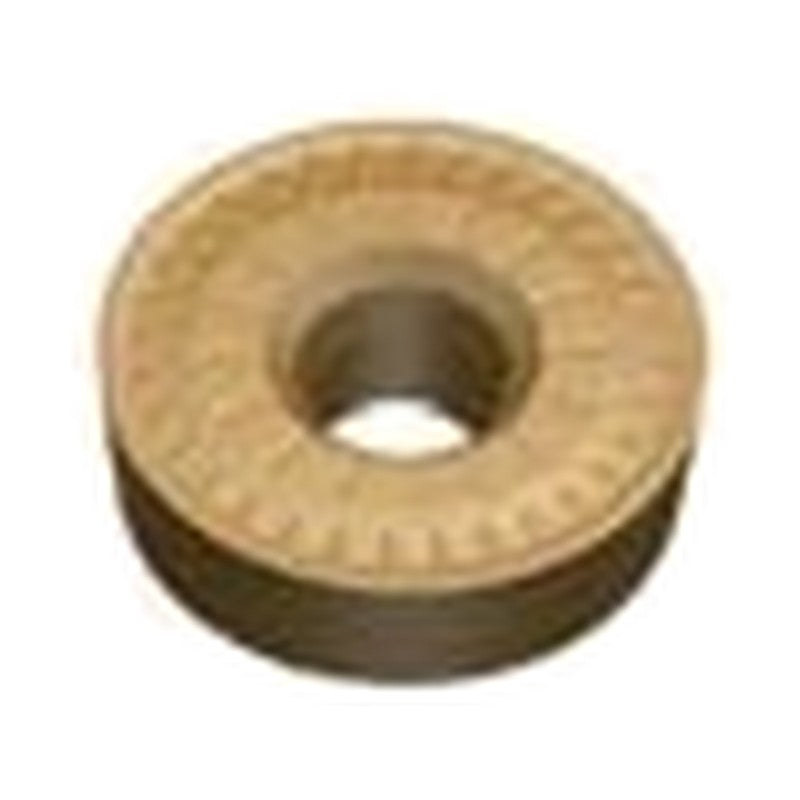

Korloy Round Turning Insert RCMX

Korloy Round Turning Insert RCMX

Round insert for heavy duty external and profile turning of railway wheels.

Key features

  • Heavy duty profile turning of railway wheels
  • Standard and HV chip breaker

Specifications

Application Railway components
Coating Coated
RCMX2507M0 NC6315 IC (mm): 25.0 | S (mm): 7.94 | D1 (mm): 7.25 | Feed fn (mm/rev): 0.15 ~ 1.15 | Depth of cut ap (mm): 4.0 ~ 12.0 | Grade: NC6315 | Stock: Not marked
RCMX2507M0 NC3215P IC (mm): 25.0 | S (mm): 7.94 | D1 (mm): 7.25 | Feed fn (mm/rev): 0.15 ~ 1.15 | Depth of cut ap (mm): 4.0 ~ 12.0 | Grade: NC3215P | Stock: Not marked
RCMX2507M0 NC3225P IC (mm): 25.0 | S (mm): 7.94 | D1 (mm): 7.25 | Feed fn (mm/rev): 0.15 ~ 1.15 | Depth of cut ap (mm): 4.0 ~ 12.0 | Grade: NC3225P | Stock: Not marked
RCMX3209M0 NC6315 IC (mm): 32.0 | S (mm): 9.52 | D1 (mm): 9.55 | Feed fn (mm/rev): 0.6 ~ 1.45 | Depth of cut ap (mm): 5.0 ~ 14.5 | Grade: NC6315 | Stock: Not marked
RCMX3209M0 NC3215P IC (mm): 32.0 | S (mm): 9.52 | D1 (mm): 9.55 | Feed fn (mm/rev): 0.6 ~ 1.45 | Depth of cut ap (mm): 5.0 ~ 14.5 | Grade: NC3215P | Stock: Not marked
RCMX3209M0 NC3225P IC (mm): 32.0 | S (mm): 9.52 | D1 (mm): 9.55 | Feed fn (mm/rev): 0.6 ~ 1.45 | Depth of cut ap (mm): 5.0 ~ 14.5 | Grade: NC3225P | Stock: Not marked
RCMX2507M0-HV NC6315 IC (mm): 25.0 | S (mm): 7.94 | D1 (mm): 7.25 | Feed fn (mm/rev): 0.55 ~ 1.2 | Depth of cut ap (mm): 4.5 ~ 12.5 | Grade: NC6315 | Stock: Not marked
RCMX2507M0-HV NC3215P IC (mm): 25.0 | S (mm): 7.94 | D1 (mm): 7.25 | Feed fn (mm/rev): 0.55 ~ 1.2 | Depth of cut ap (mm): 4.5 ~ 12.5 | Grade: NC3215P | Stock: Not marked
RCMX2507M0-HV NC3225P IC (mm): 25.0 | S (mm): 7.94 | D1 (mm): 7.25 | Feed fn (mm/rev): 0.55 ~ 1.2 | Depth of cut ap (mm): 4.5 ~ 12.5 | Grade: NC3225P | Stock: Not marked
RCMX3209M0-HV NC6315 IC (mm): 32.0 | S (mm): 9.52 | D1 (mm): 9.55 | Feed fn (mm/rev): 0.65 ~ 1.5 | Depth of cut ap (mm): 5.5 ~ 15.5 | Grade: NC6315 | Stock: Not marked
RCMX3209M0-HV NC3215P IC (mm): 32.0 | S (mm): 9.52 | D1 (mm): 9.55 | Feed fn (mm/rev): 0.65 ~ 1.5 | Depth of cut ap (mm): 5.5 ~ 15.5 | Grade: NC3215P | Stock: Not marked
RCMX3209M0-HV NC3225P IC (mm): 32.0 | S (mm): 9.52 | D1 (mm): 9.55 | Feed fn (mm/rev): 0.65 ~ 1.5 | Depth of cut ap (mm): 5.5 ~ 15.5 | Grade: NC3225P | Stock: Not marked
Turning InsertsKorloy
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Round Turning Insert RCMX

Brand Korloy·Turning Inserts

Available part numbers (12)

RCMX2507M0 NC6315, RCMX2507M0 NC3215P, RCMX2507M0 NC3225P, RCMX3209M0 NC6315, RCMX3209M0 NC3215P, RCMX3209M0 NC3225P, RCMX2507M0-HV NC6315, RCMX2507M0-HV NC3215P, RCMX2507M0-HV NC3225P, RCMX3209M0-HV NC6315 + 2 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
RCMX2507M0 NC6315IC (mm): 25.0 | S (mm): 7.94 | D1 (mm): 7.25 | Feed fn (mm/rev): 0.15 ~ 1.15 | Depth of cut ap (mm): 4.0 ~ 12.0 | Grade: NC6315 | Stock: Not marked
RCMX2507M0 NC3215PIC (mm): 25.0 | S (mm): 7.94 | D1 (mm): 7.25 | Feed fn (mm/rev): 0.15 ~ 1.15 | Depth of cut ap (mm): 4.0 ~ 12.0 | Grade: NC3215P | Stock: Not marked
RCMX2507M0 NC3225PIC (mm): 25.0 | S (mm): 7.94 | D1 (mm): 7.25 | Feed fn (mm/rev): 0.15 ~ 1.15 | Depth of cut ap (mm): 4.0 ~ 12.0 | Grade: NC3225P | Stock: Not marked
RCMX3209M0 NC6315IC (mm): 32.0 | S (mm): 9.52 | D1 (mm): 9.55 | Feed fn (mm/rev): 0.6 ~ 1.45 | Depth of cut ap (mm): 5.0 ~ 14.5 | Grade: NC6315 | Stock: Not marked
RCMX3209M0 NC3215PIC (mm): 32.0 | S (mm): 9.52 | D1 (mm): 9.55 | Feed fn (mm/rev): 0.6 ~ 1.45 | Depth of cut ap (mm): 5.0 ~ 14.5 | Grade: NC3215P | Stock: Not marked
RCMX3209M0 NC3225PIC (mm): 32.0 | S (mm): 9.52 | D1 (mm): 9.55 | Feed fn (mm/rev): 0.6 ~ 1.45 | Depth of cut ap (mm): 5.0 ~ 14.5 | Grade: NC3225P | Stock: Not marked
RCMX2507M0-HV NC6315IC (mm): 25.0 | S (mm): 7.94 | D1 (mm): 7.25 | Feed fn (mm/rev): 0.55 ~ 1.2 | Depth of cut ap (mm): 4.5 ~ 12.5 | Grade: NC6315 | Stock: Not marked
RCMX2507M0-HV NC3215PIC (mm): 25.0 | S (mm): 7.94 | D1 (mm): 7.25 | Feed fn (mm/rev): 0.55 ~ 1.2 | Depth of cut ap (mm): 4.5 ~ 12.5 | Grade: NC3215P | Stock: Not marked
RCMX2507M0-HV NC3225PIC (mm): 25.0 | S (mm): 7.94 | D1 (mm): 7.25 | Feed fn (mm/rev): 0.55 ~ 1.2 | Depth of cut ap (mm): 4.5 ~ 12.5 | Grade: NC3225P | Stock: Not marked
RCMX3209M0-HV NC6315IC (mm): 32.0 | S (mm): 9.52 | D1 (mm): 9.55 | Feed fn (mm/rev): 0.65 ~ 1.5 | Depth of cut ap (mm): 5.5 ~ 15.5 | Grade: NC6315 | Stock: Not marked
RCMX3209M0-HV NC3215PIC (mm): 32.0 | S (mm): 9.52 | D1 (mm): 9.55 | Feed fn (mm/rev): 0.65 ~ 1.5 | Depth of cut ap (mm): 5.5 ~ 15.5 | Grade: NC3215P | Stock: Not marked
RCMX3209M0-HV NC3225PIC (mm): 32.0 | S (mm): 9.52 | D1 (mm): 9.55 | Feed fn (mm/rev): 0.65 ~ 1.5 | Depth of cut ap (mm): 5.5 ~ 15.5 | Grade: NC3225P | Stock: Not marked
