• Korloy Shank Adaptor for Modular Head MAT-C (Carbide Shank)
1 1

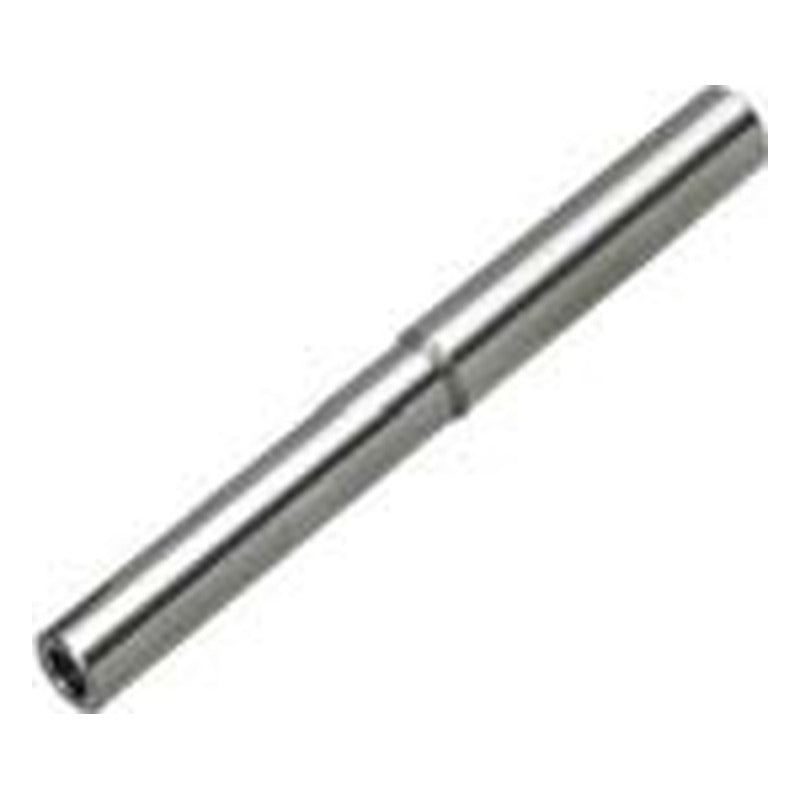

Korloy Shank Adaptor for Modular Head MAT-C (Carbide Shank)

Korloy Shank Adaptor for Modular Head MAT-C (Carbide Shank)

Carbide shank adaptor for screw-in modular milling heads (HFMM, FMRM, LBE, PAM, PAXM, AMM, RM4PM, RM4ZM, HRMM, HRMDM, GBEM).

Key features

  • Compatible with HFMM, FMRM, LBE, PAM, PAXM, AMM, RM4PM, RM4ZM, HRMM, HRMDM, GBEM heads

Specifications

Shank Carbide
MAT-M06-030-S10S-C-80 Connection thread: M6 | Shank dia (mm): 10 | Shank: Carbide | Neck: Straight | Overall length (mm): 80
MAT-M06-050-S10S-C-100 Connection thread: M6 | Shank dia (mm): 10 | Shank: Carbide | Neck: Straight | Overall length (mm): 100
MAT-M06-080-S10S-C-130 Connection thread: M6 | Shank dia (mm): 10 | Shank: Carbide | Neck: Straight | Overall length (mm): 130
MAT-M6B-030-S10S-C-80 Connection thread: M6 (B) | Shank dia (mm): 10 | Shank: Carbide | Neck: Straight | Overall length (mm): 80
MAT-M6B-050-S10S-C-100 Connection thread: M6 (B) | Shank dia (mm): 10 | Shank: Carbide | Neck: Straight | Overall length (mm): 100
MAT-M6B-080-S10S-C-130 Connection thread: M6 (B) | Shank dia (mm): 10 | Shank: Carbide | Neck: Straight | Overall length (mm): 130
MAT-M08-010-S16S-C-150 Connection thread: M8 | Shank dia (mm): 16 | Shank: Carbide | Neck: Straight | Overall length (mm): 150
MAT-M08-010-S16S-C-180 Connection thread: M8 | Shank dia (mm): 16 | Shank: Carbide | Neck: Straight | Overall length (mm): 180
MAT-M08-010-S16S-C-250 Connection thread: M8 | Shank dia (mm): 16 | Shank: Carbide | Neck: Straight | Overall length (mm): 250
MAT-M10-010-S20S-C-170 Connection thread: M10 | Shank dia (mm): 20 | Shank: Carbide | Neck: Straight | Overall length (mm): 170
MAT-M10-010-S20S-C-200 Connection thread: M10 | Shank dia (mm): 20 | Shank: Carbide | Neck: Straight | Overall length (mm): 200
MAT-M10-010-S20S-C-300 Connection thread: M10 | Shank dia (mm): 20 | Shank: Carbide | Neck: Straight | Overall length (mm): 300
MAT-M12-015-S25S-C-170 Connection thread: M12 | Shank dia (mm): 25 | Shank: Carbide | Neck: Straight | Overall length (mm): 170
MAT-M12-015-S25S-C-200 Connection thread: M12 | Shank dia (mm): 25 | Shank: Carbide | Neck: Straight | Overall length (mm): 200
MAT-M12-015-S25S-C-300 Connection thread: M12 | Shank dia (mm): 25 | Shank: Carbide | Neck: Straight | Overall length (mm): 300
MAT-M16-020-S32S-C-180 Connection thread: M16 | Shank dia (mm): 32 | Shank: Carbide | Neck: Straight | Overall length (mm): 180
MAT-M16-020-S32S-C-210 Connection thread: M16 | Shank dia (mm): 32 | Shank: Carbide | Neck: Straight | Overall length (mm): 210
MAT-M16-020-S32S-C-300 Connection thread: M16 | Shank dia (mm): 32 | Shank: Carbide | Neck: Straight | Overall length (mm): 300
MAT-M08-080-S16S-C Connection thread: M8 | Shank dia (mm): 16 | Shank: Carbide | Neck: Straight
MAT-M08-110-S16S-C Connection thread: M8 | Shank dia (mm): 16 | Shank: Carbide | Neck: Straight
MAT-M08-150-S16S-C Connection thread: M8 | Shank dia (mm): 16 | Shank: Carbide | Neck: Straight
MAT-M10-090-S20S-C Connection thread: M10 | Shank dia (mm): 20 | Shank: Carbide | Neck: Straight
MAT-M10-110-S20S-C Connection thread: M10 | Shank dia (mm): 20 | Shank: Carbide | Neck: Straight
MAT-M10-175-S20S-C Connection thread: M10 | Shank dia (mm): 20 | Shank: Carbide | Neck: Straight
MAT-M12-090-S25S-C Connection thread: M12 | Shank dia (mm): 25 | Shank: Carbide | Neck: Straight
MAT-M12-110-S25S-C Connection thread: M12 | Shank dia (mm): 25 | Shank: Carbide | Neck: Straight
MAT-M12-175-S25S-C Connection thread: M12 | Shank dia (mm): 25 | Shank: Carbide | Neck: Straight
MAT-M16-090-S32S-C Connection thread: M16 | Shank dia (mm): 32 | Shank: Carbide | Neck: Straight
MAT-M16-120-S32S-C Connection thread: M16 | Shank dia (mm): 32 | Shank: Carbide | Neck: Straight
MAT-M16-175-S32S-C Connection thread: M16 | Shank dia (mm): 32 | Shank: Carbide | Neck: Straight
Milling CuttersKorloy
30 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Shank Adaptor for Modular Head MAT-C (Carbide Shank)

Brand Korloy·Milling Cutters

Available part numbers (30)

MAT-M06-030-S10S-C-80, MAT-M06-050-S10S-C-100, MAT-M06-080-S10S-C-130, MAT-M6B-030-S10S-C-80, MAT-M6B-050-S10S-C-100, MAT-M6B-080-S10S-C-130, MAT-M08-010-S16S-C-150, MAT-M08-010-S16S-C-180, MAT-M08-010-S16S-C-250, MAT-M10-010-S20S-C-170 + 20 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
MAT-M06-030-S10S-C-80Connection thread: M6 | Shank dia (mm): 10 | Shank: Carbide | Neck: Straight | Overall length (mm): 80
MAT-M06-050-S10S-C-100Connection thread: M6 | Shank dia (mm): 10 | Shank: Carbide | Neck: Straight | Overall length (mm): 100
MAT-M06-080-S10S-C-130Connection thread: M6 | Shank dia (mm): 10 | Shank: Carbide | Neck: Straight | Overall length (mm): 130
MAT-M6B-030-S10S-C-80Connection thread: M6 (B) | Shank dia (mm): 10 | Shank: Carbide | Neck: Straight | Overall length (mm): 80
MAT-M6B-050-S10S-C-100Connection thread: M6 (B) | Shank dia (mm): 10 | Shank: Carbide | Neck: Straight | Overall length (mm): 100
MAT-M6B-080-S10S-C-130Connection thread: M6 (B) | Shank dia (mm): 10 | Shank: Carbide | Neck: Straight | Overall length (mm): 130
MAT-M08-010-S16S-C-150Connection thread: M8 | Shank dia (mm): 16 | Shank: Carbide | Neck: Straight | Overall length (mm): 150
MAT-M08-010-S16S-C-180Connection thread: M8 | Shank dia (mm): 16 | Shank: Carbide | Neck: Straight | Overall length (mm): 180
MAT-M08-010-S16S-C-250Connection thread: M8 | Shank dia (mm): 16 | Shank: Carbide | Neck: Straight | Overall length (mm): 250
MAT-M10-010-S20S-C-170Connection thread: M10 | Shank dia (mm): 20 | Shank: Carbide | Neck: Straight | Overall length (mm): 170
MAT-M10-010-S20S-C-200Connection thread: M10 | Shank dia (mm): 20 | Shank: Carbide | Neck: Straight | Overall length (mm): 200
MAT-M10-010-S20S-C-300Connection thread: M10 | Shank dia (mm): 20 | Shank: Carbide | Neck: Straight | Overall length (mm): 300
MAT-M12-015-S25S-C-170Connection thread: M12 | Shank dia (mm): 25 | Shank: Carbide | Neck: Straight | Overall length (mm): 170
MAT-M12-015-S25S-C-200Connection thread: M12 | Shank dia (mm): 25 | Shank: Carbide | Neck: Straight | Overall length (mm): 200
MAT-M12-015-S25S-C-300Connection thread: M12 | Shank dia (mm): 25 | Shank: Carbide | Neck: Straight | Overall length (mm): 300
MAT-M16-020-S32S-C-180Connection thread: M16 | Shank dia (mm): 32 | Shank: Carbide | Neck: Straight | Overall length (mm): 180
MAT-M16-020-S32S-C-210Connection thread: M16 | Shank dia (mm): 32 | Shank: Carbide | Neck: Straight | Overall length (mm): 210
MAT-M16-020-S32S-C-300Connection thread: M16 | Shank dia (mm): 32 | Shank: Carbide | Neck: Straight | Overall length (mm): 300
MAT-M08-080-S16S-CConnection thread: M8 | Shank dia (mm): 16 | Shank: Carbide | Neck: Straight
MAT-M08-110-S16S-CConnection thread: M8 | Shank dia (mm): 16 | Shank: Carbide | Neck: Straight
MAT-M08-150-S16S-CConnection thread: M8 | Shank dia (mm): 16 | Shank: Carbide | Neck: Straight
MAT-M10-090-S20S-CConnection thread: M10 | Shank dia (mm): 20 | Shank: Carbide | Neck: Straight
MAT-M10-110-S20S-CConnection thread: M10 | Shank dia (mm): 20 | Shank: Carbide | Neck: Straight
MAT-M10-175-S20S-CConnection thread: M10 | Shank dia (mm): 20 | Shank: Carbide | Neck: Straight
MAT-M12-090-S25S-CConnection thread: M12 | Shank dia (mm): 25 | Shank: Carbide | Neck: Straight
MAT-M12-110-S25S-CConnection thread: M12 | Shank dia (mm): 25 | Shank: Carbide | Neck: Straight
MAT-M12-175-S25S-CConnection thread: M12 | Shank dia (mm): 25 | Shank: Carbide | Neck: Straight
MAT-M16-090-S32S-CConnection thread: M16 | Shank dia (mm): 32 | Shank: Carbide | Neck: Straight
MAT-M16-120-S32S-CConnection thread: M16 | Shank dia (mm): 32 | Shank: Carbide | Neck: Straight
MAT-M16-175-S32S-CConnection thread: M16 | Shank dia (mm): 32 | Shank: Carbide | Neck: Straight
