Korloy Solid Centering and Chamfering End Mill CET

Korloy Solid Centering and Chamfering End Mill CET

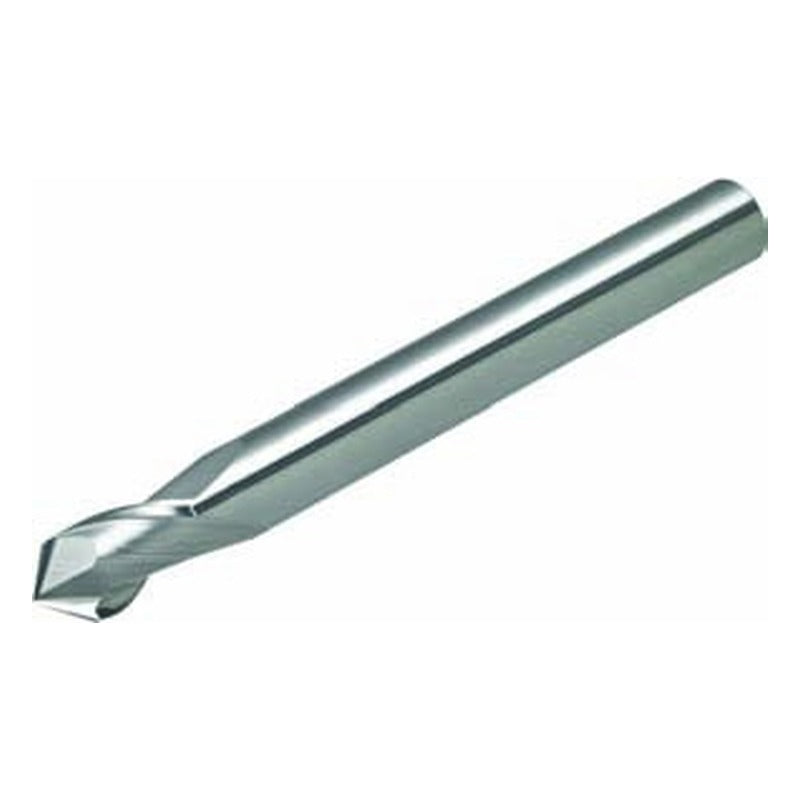

Solid carbide centering and chamfering end mill for internal chamfering up to 0.5 mm, also usable for side milling.

Key features

  • Chamfer angles 60, 90 and 120 degrees
  • Solid carbide
  • Internal chamfering up to 0.5 mm
  • Applicable to side milling and easy to regrind

Specifications

Material Solid carbide
CET060-030 D (mm): 3 | Shank dia. d (mm): 3 | l (mm): 5.5 | L (mm): 50 | Chamfer angle: 60°
CET060-040 D (mm): 4 | Shank dia. d (mm): 4 | l (mm): 7 | L (mm): 50 | Chamfer angle: 60°
CET060-060 D (mm): 6 | Shank dia. d (mm): 6 | l (mm): 10 | L (mm): 60 | Chamfer angle: 60°
CET060-080 D (mm): 8 | Shank dia. d (mm): 8 | l (mm): 13 | L (mm): 70 | Chamfer angle: 60°
CET060-100 D (mm): 10 | Shank dia. d (mm): 10 | l (mm): 16 | L (mm): 70 | Chamfer angle: 60°
CET060-120 D (mm): 12 | Shank dia. d (mm): 12 | l (mm): 18 | L (mm): 75 | Chamfer angle: 60°
CET060-160 D (mm): 16 | Shank dia. d (mm): 16 | l (mm): 24 | L (mm): 100 | Chamfer angle: 60°
CET090-030 D (mm): 3 | Shank dia. d (mm): 3 | l (mm): 5.5 | L (mm): 50 | Chamfer angle: 90°
CET090-040 D (mm): 4 | Shank dia. d (mm): 4 | l (mm): 7 | L (mm): 50 | Chamfer angle: 90°
CET090-060 D (mm): 6 | Shank dia. d (mm): 6 | l (mm): 10 | L (mm): 60 | Chamfer angle: 90°
CET090-080 D (mm): 8 | Shank dia. d (mm): 8 | l (mm): 13 | L (mm): 70 | Chamfer angle: 90°
CET090-100 D (mm): 10 | Shank dia. d (mm): 10 | l (mm): 16 | L (mm): 70 | Chamfer angle: 90°
CET090-120 D (mm): 12 | Shank dia. d (mm): 12 | l (mm): 18 | L (mm): 75 | Chamfer angle: 90°
CET090-160 D (mm): 16 | Shank dia. d (mm): 16 | l (mm): 24 | L (mm): 100 | Chamfer angle: 90°
CET120-030 D (mm): 3 | Shank dia. d (mm): 3 | l (mm): 5.5 | L (mm): 50 | Chamfer angle: 120°
CET120-040 D (mm): 4 | Shank dia. d (mm): 4 | l (mm): 7 | L (mm): 50 | Chamfer angle: 120°
CET120-060 D (mm): 6 | Shank dia. d (mm): 6 | l (mm): 10 | L (mm): 60 | Chamfer angle: 120°
CET120-080 D (mm): 8 | Shank dia. d (mm): 8 | l (mm): 13 | L (mm): 70 | Chamfer angle: 120°
CET120-100 D (mm): 10 | Shank dia. d (mm): 10 | l (mm): 16 | L (mm): 70 | Chamfer angle: 120°
CET120-120 D (mm): 12 | Shank dia. d (mm): 12 | l (mm): 18 | L (mm): 75 | Chamfer angle: 120°
CET120-160 D (mm): 16 | Shank dia. d (mm): 16 | l (mm): 24 | L (mm): 100 | Chamfer angle: 120°
Chamfer ToolsKorloy
21 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Solid Centering and Chamfering End Mill CET

Brand Korloy·Chamfer Tools

Available part numbers (21)

CET060-030, CET060-040, CET060-060, CET060-080, CET060-100, CET060-120, CET060-160, CET090-030, CET090-040, CET090-060 + 11 more — see full table ↓
