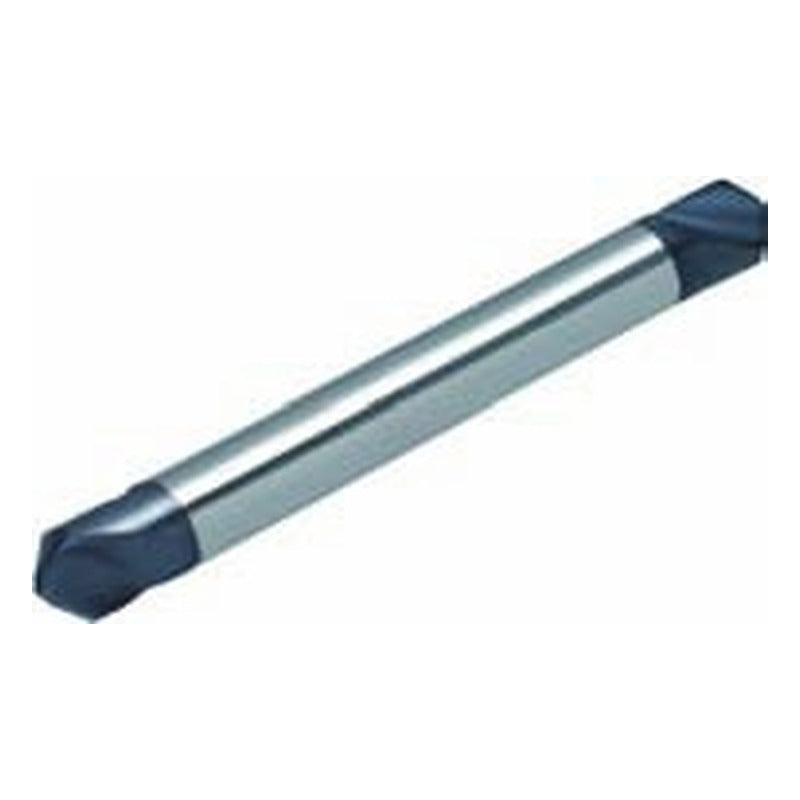

Korloy Solid Centering and Chamfering Tool CCT

Korloy Solid Centering and Chamfering Tool CCT

Solid carbide centering and chamfering tool in single, twin and long types with 60, 90 and 120 degree angles.

Key features

  • Chamfer angles 60, 90 and 120 degrees
  • Solid carbide
  • Single, twin and long types
  • Double point angle for chipping resistance at high speed
  • Web thinning lowers cutting load

Specifications

Material Solid carbide
CCT060-030 D = d (mm): 3 | D1 (mm): 1.0 | L (mm): 40 | Point angle: 60° | Type: Single | Fig.: 1
CCT060-040 D = d (mm): 4 | D1 (mm): 1.5 | L (mm): 40 | Point angle: 60° | Type: Single | Fig.: 1
CCT060-060 D = d (mm): 6 | D1 (mm): 2.0 | L (mm): 50 | Point angle: 60° | Type: Single | Fig.: 1
CCT060-080 D = d (mm): 8 | D1 (mm): 2.5 | L (mm): 60 | Point angle: 60° | Type: Single | Fig.: 1
CCT060-100 D = d (mm): 10 | D1 (mm): 3.0 | L (mm): 70 | Point angle: 60° | Type: Single | Fig.: 1
CCT060-120 D = d (mm): 12 | D1 (mm): 4.0 | L (mm): 80 | Point angle: 60° | Type: Single | Fig.: 1
CCT060-160 D = d (mm): 16 | D1 (mm): 5.0 | L (mm): 100 | Point angle: 60° | Type: Single | Fig.: 1
CCT060T-030 D = d (mm): 3 | D1 (mm): 1.0 | L (mm): 40 | Point angle: 60° | Type: Twin | Fig.: 2
CCT060T-040 D = d (mm): 4 | D1 (mm): 1.5 | L (mm): 40 | Point angle: 60° | Type: Twin | Fig.: 2
CCT060T-060 D = d (mm): 6 | D1 (mm): 2.0 | L (mm): 50 | Point angle: 60° | Type: Twin | Fig.: 2
CCT060T-080 D = d (mm): 8 | D1 (mm): 2.5 | L (mm): 60 | Point angle: 60° | Type: Twin | Fig.: 2
CCT060T-100 D = d (mm): 10 | D1 (mm): 3.0 | L (mm): 70 | Point angle: 60° | Type: Twin | Fig.: 2
CCT060T-120 D = d (mm): 12 | D1 (mm): 4.0 | L (mm): 80 | Point angle: 60° | Type: Twin | Fig.: 2
CCT060T-160 D = d (mm): 16 | D1 (mm): 5.0 | L (mm): 100 | Point angle: 60° | Type: Twin | Fig.: 2
CCT060T-030L D = d (mm): 3 | D1 (mm): 1.0 | L (mm): 100 | Point angle: 60° | Type: Twin long | Fig.: 2
CCT060T-040L D = d (mm): 4 | D1 (mm): 1.5 | L (mm): 100 | Point angle: 60° | Type: Twin long | Fig.: 2
CCT060T-060L D = d (mm): 6 | D1 (mm): 2.0 | L (mm): 100 | Point angle: 60° | Type: Twin long | Fig.: 2
CCT060T-080L D = d (mm): 8 | D1 (mm): 2.5 | L (mm): 120 | Point angle: 60° | Type: Twin long | Fig.: 2
CCT060T-100L D = d (mm): 10 | D1 (mm): 3.0 | L (mm): 120 | Point angle: 60° | Type: Twin long | Fig.: 2
CCT060T-120L D = d (mm): 12 | D1 (mm): 4.0 | L (mm): 150 | Point angle: 60° | Type: Twin long | Fig.: 2
CCT090-030 D = d (mm): 3 | D1 (mm): 1.0 | L (mm): 40 | Point angle: 90° | Type: Single | Fig.: 1
CCT090-040 D = d (mm): 4 | D1 (mm): 1.5 | L (mm): 40 | Point angle: 90° | Type: Single | Fig.: 1
CCT090-060 D = d (mm): 6 | D1 (mm): 2.0 | L (mm): 50 | Point angle: 90° | Type: Single | Fig.: 1
CCT090-080 D = d (mm): 8 | D1 (mm): 2.5 | L (mm): 60 | Point angle: 90° | Type: Single | Fig.: 1
CCT090-100 D = d (mm): 10 | D1 (mm): 3.0 | L (mm): 70 | Point angle: 90° | Type: Single | Fig.: 1
CCT090-120 D = d (mm): 12 | D1 (mm): 4.0 | L (mm): 80 | Point angle: 90° | Type: Single | Fig.: 1
CCT090-160 D = d (mm): 16 | D1 (mm): 5.0 | L (mm): 100 | Point angle: 90° | Type: Single | Fig.: 1
CCT090T-030 D = d (mm): 3 | D1 (mm): 1.0 | L (mm): 40 | Point angle: 90° | Type: Twin | Fig.: 2
CCT090T-040 D = d (mm): 4 | D1 (mm): 1.5 | L (mm): 40 | Point angle: 90° | Type: Twin | Fig.: 2
CCT090T-060 D = d (mm): 6 | D1 (mm): 2.0 | L (mm): 50 | Point angle: 90° | Type: Twin | Fig.: 2
CCT090T-080 D = d (mm): 8 | D1 (mm): 2.5 | L (mm): 60 | Point angle: 90° | Type: Twin | Fig.: 2
CCT090T-100 D = d (mm): 10 | D1 (mm): 3.0 | L (mm): 70 | Point angle: 90° | Type: Twin | Fig.: 2
CCT090T-120 D = d (mm): 12 | D1 (mm): 4.0 | L (mm): 80 | Point angle: 90° | Type: Twin | Fig.: 2
CCT090T-160 D = d (mm): 16 | D1 (mm): 5.0 | L (mm): 100 | Point angle: 90° | Type: Twin | Fig.: 2
CCT090T-030L D = d (mm): 3 | D1 (mm): 1.0 | L (mm): 100 | Point angle: 90° | Type: Twin long | Fig.: 2
CCT090T-040L D = d (mm): 4 | D1 (mm): 1.5 | L (mm): 100 | Point angle: 90° | Type: Twin long | Fig.: 2
CCT090T-060L D = d (mm): 6 | D1 (mm): 2.0 | L (mm): 100 | Point angle: 90° | Type: Twin long | Fig.: 2
CCT090T-080L D = d (mm): 8 | D1 (mm): 2.5 | L (mm): 120 | Point angle: 90° | Type: Twin long | Fig.: 2
CCT090T-100L D = d (mm): 10 | D1 (mm): 3.0 | L (mm): 120 | Point angle: 90° | Type: Twin long | Fig.: 2
CCT090T-120L D = d (mm): 12 | D1 (mm): 4.0 | L (mm): 150 | Point angle: 90° | Type: Twin long | Fig.: 2
CCT120-030 D = d (mm): 3 | D1 (mm): 1.0 | L (mm): 40 | Point angle: 120° | Type: Single | Fig.: 1
CCT120-040 D = d (mm): 4 | D1 (mm): 1.5 | L (mm): 40 | Point angle: 120° | Type: Single | Fig.: 1
CCT120-060 D = d (mm): 6 | D1 (mm): 2.0 | L (mm): 50 | Point angle: 120° | Type: Single | Fig.: 1
CCT120-080 D = d (mm): 8 | D1 (mm): 2.5 | L (mm): 60 | Point angle: 120° | Type: Single | Fig.: 1
CCT120-100 D = d (mm): 10 | D1 (mm): 3.0 | L (mm): 70 | Point angle: 120° | Type: Single | Fig.: 1
CCT120-120 D = d (mm): 12 | D1 (mm): 4.0 | L (mm): 80 | Point angle: 120° | Type: Single | Fig.: 1
CCT120-160 D = d (mm): 16 | D1 (mm): 5.0 | L (mm): 100 | Point angle: 120° | Type: Single | Fig.: 1
CCT120T-030 D = d (mm): 3 | D1 (mm): 1.0 | L (mm): 40 | Point angle: 120° | Type: Twin | Fig.: 2
CCT120T-040 D = d (mm): 4 | D1 (mm): 1.5 | L (mm): 40 | Point angle: 120° | Type: Twin | Fig.: 2
CCT120T-060 D = d (mm): 6 | D1 (mm): 2.0 | L (mm): 50 | Point angle: 120° | Type: Twin | Fig.: 2
CCT120T-080 D = d (mm): 8 | D1 (mm): 2.5 | L (mm): 60 | Point angle: 120° | Type: Twin | Fig.: 2
CCT120T-100 D = d (mm): 10 | D1 (mm): 3.0 | L (mm): 70 | Point angle: 120° | Type: Twin | Fig.: 2
CCT120T-120 D = d (mm): 12 | D1 (mm): 4.0 | L (mm): 80 | Point angle: 120° | Type: Twin | Fig.: 2
CCT120T-160 D = d (mm): 16 | D1 (mm): 5.0 | L (mm): 100 | Point angle: 120° | Type: Twin | Fig.: 2
CCT120T-030L D = d (mm): 3 | D1 (mm): 1.0 | L (mm): 100 | Point angle: 120° | Type: Twin long | Fig.: 2
CCT120T-040L D = d (mm): 4 | D1 (mm): 1.5 | L (mm): 100 | Point angle: 120° | Type: Twin long | Fig.: 2
CCT120T-060L D = d (mm): 6 | D1 (mm): 2.0 | L (mm): 100 | Point angle: 120° | Type: Twin long | Fig.: 2
CCT120T-080L D = d (mm): 8 | D1 (mm): 2.5 | L (mm): 120 | Point angle: 120° | Type: Twin long | Fig.: 2
CCT120T-100L D = d (mm): 10 | D1 (mm): 3.0 | L (mm): 120 | Point angle: 120° | Type: Twin long | Fig.: 2
CCT120T-120L D = d (mm): 12 | D1 (mm): 4.0 | L (mm): 150 | Point angle: 120° | Type: Twin long | Fig.: 2
Chamfer ToolsKorloy
60 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Solid Centering and Chamfering Tool CCT

Brand Korloy·Chamfer Tools

Available part numbers (60)

CCT060-030, CCT060-040, CCT060-060, CCT060-080, CCT060-100, CCT060-120, CCT060-160, CCT060T-030, CCT060T-040, CCT060T-060 + 50 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CCT060-030D = d (mm): 3 | D1 (mm): 1.0 | L (mm): 40 | Point angle: 60° | Type: Single | Fig.: 1
CCT060-040D = d (mm): 4 | D1 (mm): 1.5 | L (mm): 40 | Point angle: 60° | Type: Single | Fig.: 1
CCT060-060D = d (mm): 6 | D1 (mm): 2.0 | L (mm): 50 | Point angle: 60° | Type: Single | Fig.: 1
CCT060-080D = d (mm): 8 | D1 (mm): 2.5 | L (mm): 60 | Point angle: 60° | Type: Single | Fig.: 1
CCT060-100D = d (mm): 10 | D1 (mm): 3.0 | L (mm): 70 | Point angle: 60° | Type: Single | Fig.: 1
CCT060-120D = d (mm): 12 | D1 (mm): 4.0 | L (mm): 80 | Point angle: 60° | Type: Single | Fig.: 1
CCT060-160D = d (mm): 16 | D1 (mm): 5.0 | L (mm): 100 | Point angle: 60° | Type: Single | Fig.: 1
CCT060T-030D = d (mm): 3 | D1 (mm): 1.0 | L (mm): 40 | Point angle: 60° | Type: Twin | Fig.: 2
CCT060T-040D = d (mm): 4 | D1 (mm): 1.5 | L (mm): 40 | Point angle: 60° | Type: Twin | Fig.: 2
CCT060T-060D = d (mm): 6 | D1 (mm): 2.0 | L (mm): 50 | Point angle: 60° | Type: Twin | Fig.: 2
CCT060T-080D = d (mm): 8 | D1 (mm): 2.5 | L (mm): 60 | Point angle: 60° | Type: Twin | Fig.: 2
CCT060T-100D = d (mm): 10 | D1 (mm): 3.0 | L (mm): 70 | Point angle: 60° | Type: Twin | Fig.: 2
CCT060T-120D = d (mm): 12 | D1 (mm): 4.0 | L (mm): 80 | Point angle: 60° | Type: Twin | Fig.: 2
CCT060T-160D = d (mm): 16 | D1 (mm): 5.0 | L (mm): 100 | Point angle: 60° | Type: Twin | Fig.: 2
CCT060T-030LD = d (mm): 3 | D1 (mm): 1.0 | L (mm): 100 | Point angle: 60° | Type: Twin long | Fig.: 2
CCT060T-040LD = d (mm): 4 | D1 (mm): 1.5 | L (mm): 100 | Point angle: 60° | Type: Twin long | Fig.: 2
CCT060T-060LD = d (mm): 6 | D1 (mm): 2.0 | L (mm): 100 | Point angle: 60° | Type: Twin long | Fig.: 2
CCT060T-080LD = d (mm): 8 | D1 (mm): 2.5 | L (mm): 120 | Point angle: 60° | Type: Twin long | Fig.: 2
CCT060T-100LD = d (mm): 10 | D1 (mm): 3.0 | L (mm): 120 | Point angle: 60° | Type: Twin long | Fig.: 2
CCT060T-120LD = d (mm): 12 | D1 (mm): 4.0 | L (mm): 150 | Point angle: 60° | Type: Twin long | Fig.: 2
CCT090-030D = d (mm): 3 | D1 (mm): 1.0 | L (mm): 40 | Point angle: 90° | Type: Single | Fig.: 1
CCT090-040D = d (mm): 4 | D1 (mm): 1.5 | L (mm): 40 | Point angle: 90° | Type: Single | Fig.: 1
CCT090-060D = d (mm): 6 | D1 (mm): 2.0 | L (mm): 50 | Point angle: 90° | Type: Single | Fig.: 1
CCT090-080D = d (mm): 8 | D1 (mm): 2.5 | L (mm): 60 | Point angle: 90° | Type: Single | Fig.: 1
CCT090-100D = d (mm): 10 | D1 (mm): 3.0 | L (mm): 70 | Point angle: 90° | Type: Single | Fig.: 1
CCT090-120D = d (mm): 12 | D1 (mm): 4.0 | L (mm): 80 | Point angle: 90° | Type: Single | Fig.: 1
CCT090-160D = d (mm): 16 | D1 (mm): 5.0 | L (mm): 100 | Point angle: 90° | Type: Single | Fig.: 1
CCT090T-030D = d (mm): 3 | D1 (mm): 1.0 | L (mm): 40 | Point angle: 90° | Type: Twin | Fig.: 2
CCT090T-040D = d (mm): 4 | D1 (mm): 1.5 | L (mm): 40 | Point angle: 90° | Type: Twin | Fig.: 2
CCT090T-060D = d (mm): 6 | D1 (mm): 2.0 | L (mm): 50 | Point angle: 90° | Type: Twin | Fig.: 2
CCT090T-080D = d (mm): 8 | D1 (mm): 2.5 | L (mm): 60 | Point angle: 90° | Type: Twin | Fig.: 2
CCT090T-100D = d (mm): 10 | D1 (mm): 3.0 | L (mm): 70 | Point angle: 90° | Type: Twin | Fig.: 2
CCT090T-120D = d (mm): 12 | D1 (mm): 4.0 | L (mm): 80 | Point angle: 90° | Type: Twin | Fig.: 2
CCT090T-160D = d (mm): 16 | D1 (mm): 5.0 | L (mm): 100 | Point angle: 90° | Type: Twin | Fig.: 2
CCT090T-030LD = d (mm): 3 | D1 (mm): 1.0 | L (mm): 100 | Point angle: 90° | Type: Twin long | Fig.: 2
CCT090T-040LD = d (mm): 4 | D1 (mm): 1.5 | L (mm): 100 | Point angle: 90° | Type: Twin long | Fig.: 2
CCT090T-060LD = d (mm): 6 | D1 (mm): 2.0 | L (mm): 100 | Point angle: 90° | Type: Twin long | Fig.: 2
CCT090T-080LD = d (mm): 8 | D1 (mm): 2.5 | L (mm): 120 | Point angle: 90° | Type: Twin long | Fig.: 2
CCT090T-100LD = d (mm): 10 | D1 (mm): 3.0 | L (mm): 120 | Point angle: 90° | Type: Twin long | Fig.: 2
CCT090T-120LD = d (mm): 12 | D1 (mm): 4.0 | L (mm): 150 | Point angle: 90° | Type: Twin long | Fig.: 2
CCT120-030D = d (mm): 3 | D1 (mm): 1.0 | L (mm): 40 | Point angle: 120° | Type: Single | Fig.: 1
CCT120-040D = d (mm): 4 | D1 (mm): 1.5 | L (mm): 40 | Point angle: 120° | Type: Single | Fig.: 1
CCT120-060D = d (mm): 6 | D1 (mm): 2.0 | L (mm): 50 | Point angle: 120° | Type: Single | Fig.: 1
CCT120-080D = d (mm): 8 | D1 (mm): 2.5 | L (mm): 60 | Point angle: 120° | Type: Single | Fig.: 1
CCT120-100D = d (mm): 10 | D1 (mm): 3.0 | L (mm): 70 | Point angle: 120° | Type: Single | Fig.: 1
CCT120-120D = d (mm): 12 | D1 (mm): 4.0 | L (mm): 80 | Point angle: 120° | Type: Single | Fig.: 1
CCT120-160D = d (mm): 16 | D1 (mm): 5.0 | L (mm): 100 | Point angle: 120° | Type: Single | Fig.: 1
CCT120T-030D = d (mm): 3 | D1 (mm): 1.0 | L (mm): 40 | Point angle: 120° | Type: Twin | Fig.: 2
CCT120T-040D = d (mm): 4 | D1 (mm): 1.5 | L (mm): 40 | Point angle: 120° | Type: Twin | Fig.: 2
CCT120T-060D = d (mm): 6 | D1 (mm): 2.0 | L (mm): 50 | Point angle: 120° | Type: Twin | Fig.: 2
CCT120T-080D = d (mm): 8 | D1 (mm): 2.5 | L (mm): 60 | Point angle: 120° | Type: Twin | Fig.: 2
CCT120T-100D = d (mm): 10 | D1 (mm): 3.0 | L (mm): 70 | Point angle: 120° | Type: Twin | Fig.: 2
CCT120T-120D = d (mm): 12 | D1 (mm): 4.0 | L (mm): 80 | Point angle: 120° | Type: Twin | Fig.: 2
CCT120T-160D = d (mm): 16 | D1 (mm): 5.0 | L (mm): 100 | Point angle: 120° | Type: Twin | Fig.: 2
CCT120T-030LD = d (mm): 3 | D1 (mm): 1.0 | L (mm): 100 | Point angle: 120° | Type: Twin long | Fig.: 2
CCT120T-040LD = d (mm): 4 | D1 (mm): 1.5 | L (mm): 100 | Point angle: 120° | Type: Twin long | Fig.: 2
CCT120T-060LD = d (mm): 6 | D1 (mm): 2.0 | L (mm): 100 | Point angle: 120° | Type: Twin long | Fig.: 2
CCT120T-080LD = d (mm): 8 | D1 (mm): 2.5 | L (mm): 120 | Point angle: 120° | Type: Twin long | Fig.: 2
CCT120T-100LD = d (mm): 10 | D1 (mm): 3.0 | L (mm): 120 | Point angle: 120° | Type: Twin long | Fig.: 2
CCT120T-120LD = d (mm): 12 | D1 (mm): 4.0 | L (mm): 150 | Point angle: 120° | Type: Twin long | Fig.: 2
