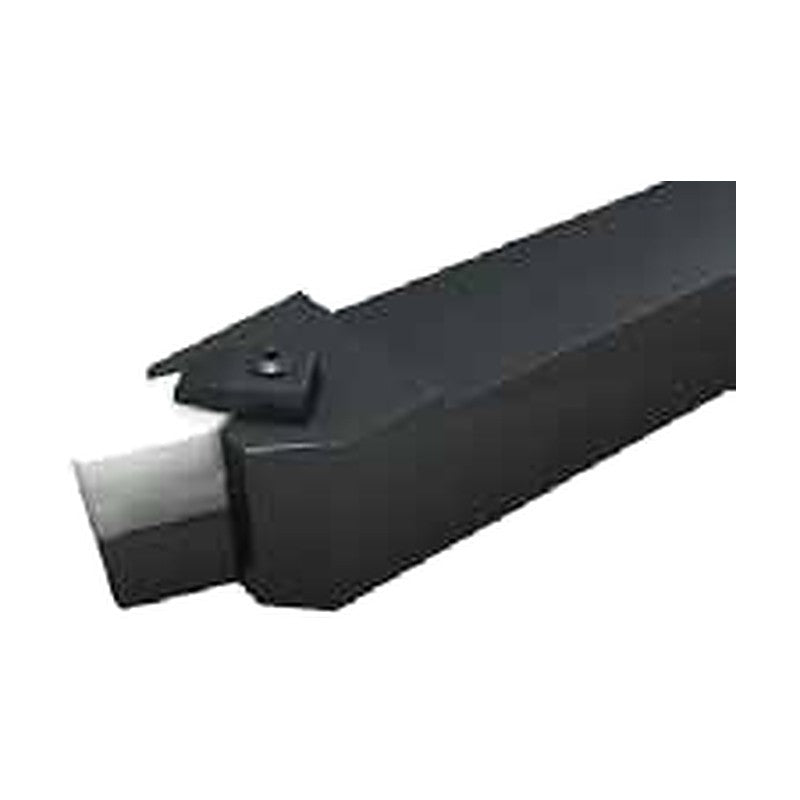

Korloy Special Insert Holder CGVN

Korloy Special Insert Holder CGVN

External toolholder with top clamp and shim for GVGN special ceramic inserts.

Key features

  • Shank sizes: 3232
  • Fits inserts: GVGN34360, GVGN36340, GVGN38320, GVGN38335, GVGN38360

Specifications

Holder type External toolholder
CGVNN3232P38-A7-32 H (mm): 32 | B (mm): 32 | L1 (mm): 170 | L2 (mm): 48 | Insert: GVGN38320 | Clamp & clamp screw: UH1 | Shim: SHGV3832 | Shim screw: FM510 | Wrench: LW4
CGVNN3232P38-A7-33 H (mm): 32 | B (mm): 32 | L1 (mm): 170 | L2 (mm): 46 | Insert: GVGN38335 | Clamp & clamp screw: UH1 | Shim: SHGV3833 | Shim screw: FM510 | Wrench: LW4
CGVNN3232P36-A7-34 H (mm): 32 | B (mm): 32 | L1 (mm): 170 | L2 (mm): 49 | Insert: GVGN36340 | Clamp & clamp screw: UH1 | Shim: SHGV3634 | Shim screw: FM510 | Wrench: LW4
CGVNN3232P38-A7-36 H (mm): 32 | B (mm): 32 | L1 (mm): 170 | L2 (mm): 44 | Insert: GVGN38360 | Clamp & clamp screw: UH1 | Shim: SHGV3836 | Shim screw: FM510 | Wrench: LW4
CGVNN3232P34-A7-36 H (mm): 32 | B (mm): 32 | L1 (mm): 170 | L2 (mm): 44 | Insert: GVGN34360 | Clamp & clamp screw: UH1 | Shim: SHGV3436 | Shim screw: FM510 | Wrench: LW4
Turning HoldersKorloy
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Special Insert Holder CGVN

Brand Korloy·Turning Holders

Available part numbers (5)

CGVNN3232P38-A7-32, CGVNN3232P38-A7-33, CGVNN3232P36-A7-34, CGVNN3232P38-A7-36, CGVNN3232P34-A7-36

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CGVNN3232P38-A7-32H (mm): 32 | B (mm): 32 | L1 (mm): 170 | L2 (mm): 48 | Insert: GVGN38320 | Clamp & clamp screw: UH1 | Shim: SHGV3832 | Shim screw: FM510 | Wrench: LW4
CGVNN3232P38-A7-33H (mm): 32 | B (mm): 32 | L1 (mm): 170 | L2 (mm): 46 | Insert: GVGN38335 | Clamp & clamp screw: UH1 | Shim: SHGV3833 | Shim screw: FM510 | Wrench: LW4
CGVNN3232P36-A7-34H (mm): 32 | B (mm): 32 | L1 (mm): 170 | L2 (mm): 49 | Insert: GVGN36340 | Clamp & clamp screw: UH1 | Shim: SHGV3634 | Shim screw: FM510 | Wrench: LW4
CGVNN3232P38-A7-36H (mm): 32 | B (mm): 32 | L1 (mm): 170 | L2 (mm): 44 | Insert: GVGN38360 | Clamp & clamp screw: UH1 | Shim: SHGV3836 | Shim screw: FM510 | Wrench: LW4
CGVNN3232P34-A7-36H (mm): 32 | B (mm): 32 | L1 (mm): 170 | L2 (mm): 44 | Insert: GVGN34360 | Clamp & clamp screw: UH1 | Shim: SHGV3436 | Shim screw: FM510 | Wrench: LW4
