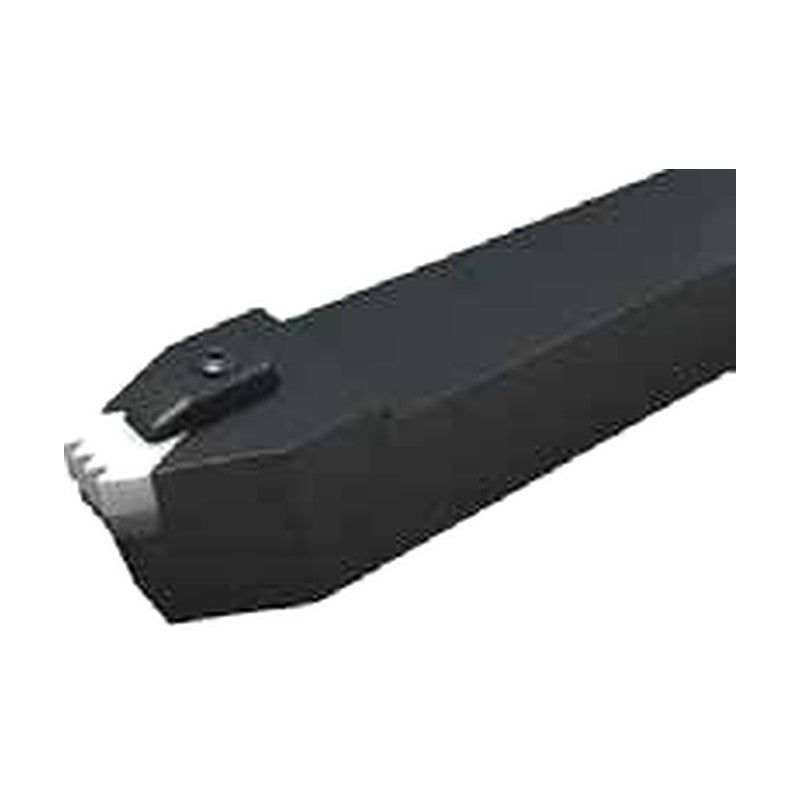

Korloy Special Insert Holder CINN

Korloy Special Insert Holder CINN

External toolholder with top clamp and shim for INGN special ceramic inserts.

Key features

  • Shank sizes: 2525, 3225
  • Fits inserts: INGN160435F3, INGN220435F4

Specifications

Holder type External toolholder
CINNN2525M09-A4-F3 H (mm): 25 | B (mm): 25 | L1 (mm): 150 | L2 (mm): 30 | f (mm): 12.5 | Insert: INGN160435F3 | Clamp & clamp screw: UH1 | Shim: SHIN33F3 | Shim screw: TM3008 | Wrench: LW4
CINNN2525M12-A4-F4 H (mm): 25 | B (mm): 25 | L1 (mm): 150 | L2 (mm): 34 | f (mm): 12.5 | Insert: INGN220435F4 | Clamp & clamp screw: UH1 | Shim: SHIN43F4 | Shim screw: TM4010 | Wrench: LW4
CINNN3225P09-A4-F3 H (mm): 32 | B (mm): 25 | L1 (mm): 170 | L2 (mm): 30 | f (mm): 12.5 | Insert: INGN160435F3 | Clamp & clamp screw: UH1 | Shim: SHIN33F3 | Shim screw: TM3008 | Wrench: LW4
CINNN3225P12-A4-F4 H (mm): 32 | B (mm): 25 | L1 (mm): 170 | L2 (mm): 34 | f (mm): 12.5 | Insert: INGN220435F4 | Clamp & clamp screw: UH1 | Shim: SHIN43F4 | Shim screw: TM4010 | Wrench: LW4
Turning HoldersKorloy
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Special Insert Holder CINN

Brand Korloy·Turning Holders

Available part numbers (4)

CINNN2525M09-A4-F3, CINNN2525M12-A4-F4, CINNN3225P09-A4-F3, CINNN3225P12-A4-F4

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CINNN2525M09-A4-F3H (mm): 25 | B (mm): 25 | L1 (mm): 150 | L2 (mm): 30 | f (mm): 12.5 | Insert: INGN160435F3 | Clamp & clamp screw: UH1 | Shim: SHIN33F3 | Shim screw: TM3008 | Wrench: LW4
CINNN2525M12-A4-F4H (mm): 25 | B (mm): 25 | L1 (mm): 150 | L2 (mm): 34 | f (mm): 12.5 | Insert: INGN220435F4 | Clamp & clamp screw: UH1 | Shim: SHIN43F4 | Shim screw: TM4010 | Wrench: LW4
CINNN3225P09-A4-F3H (mm): 32 | B (mm): 25 | L1 (mm): 170 | L2 (mm): 30 | f (mm): 12.5 | Insert: INGN160435F3 | Clamp & clamp screw: UH1 | Shim: SHIN33F3 | Shim screw: TM3008 | Wrench: LW4
CINNN3225P12-A4-F4H (mm): 32 | B (mm): 25 | L1 (mm): 170 | L2 (mm): 34 | f (mm): 12.5 | Insert: INGN220435F4 | Clamp & clamp screw: UH1 | Shim: SHIN43F4 | Shim screw: TM4010 | Wrench: LW4
