Korloy Special Insert Holder CSVN

Korloy Special Insert Holder CSVN

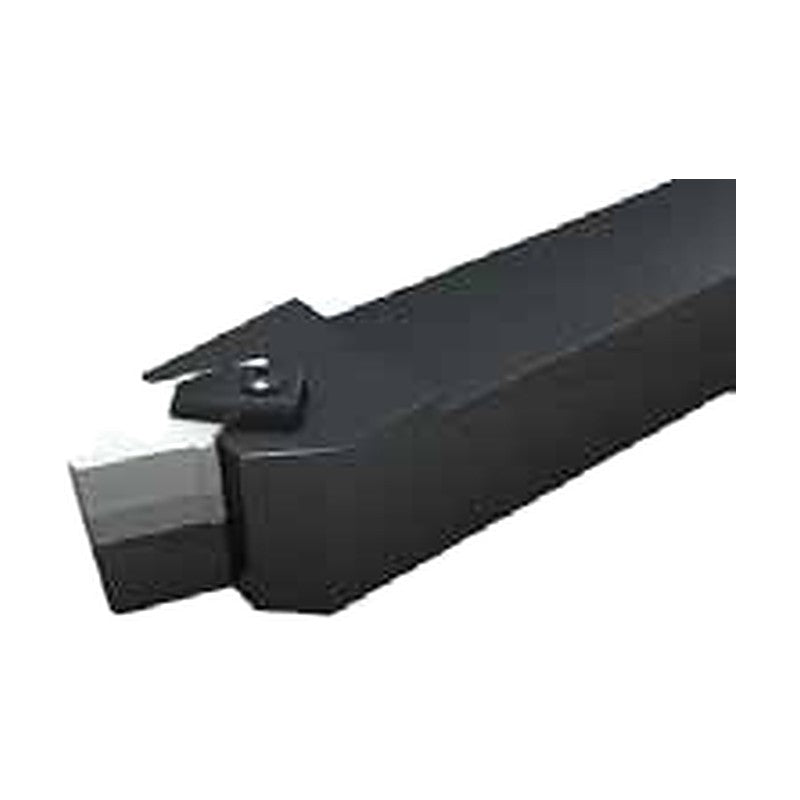

External toolholder with top clamp and shim for SVW special ceramic inserts.

Key features

  • Shank sizes: 3232
  • Fits inserts: SVW34400, SVW38260, SVW38320

Specifications

Holder type External toolholder
CSVNN3232P38-A7-26 H (mm): 32 | B (mm): 32 | L1 (mm): 170 | L2 (mm): 38 | Insert: SVW38260 | Clamp & clamp screw: UH1 | Shim: SHSV3826 | Shim screw: FM510 | Wrench: LW4
CSVNN3232P38-A7-32 H (mm): 32 | B (mm): 32 | L1 (mm): 170 | L2 (mm): 40 | Insert: SVW38320 | Clamp & clamp screw: UH1 | Shim: SHSV3832 | Shim screw: FM510 | Wrench: LW4
CSVNN3232P34-A7-40 H (mm): 32 | B (mm): 32 | L1 (mm): 170 | L2 (mm): 50 | Insert: SVW34400 | Clamp & clamp screw: UH1 | Shim: SHSV3440 | Shim screw: FM510 | Wrench: LW4
Turning HoldersKorloy
3 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Special Insert Holder CSVN

Brand Korloy·Turning Holders

Available part numbers (3)

CSVNN3232P38-A7-26, CSVNN3232P38-A7-32, CSVNN3232P34-A7-40

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
CSVNN3232P38-A7-26H (mm): 32 | B (mm): 32 | L1 (mm): 170 | L2 (mm): 38 | Insert: SVW38260 | Clamp & clamp screw: UH1 | Shim: SHSV3826 | Shim screw: FM510 | Wrench: LW4
CSVNN3232P38-A7-32H (mm): 32 | B (mm): 32 | L1 (mm): 170 | L2 (mm): 40 | Insert: SVW38320 | Clamp & clamp screw: UH1 | Shim: SHSV3832 | Shim screw: FM510 | Wrench: LW4
CSVNN3232P34-A7-40H (mm): 32 | B (mm): 32 | L1 (mm): 170 | L2 (mm): 50 | Insert: SVW34400 | Clamp & clamp screw: UH1 | Shim: SHSV3440 | Shim screw: FM510 | Wrench: LW4
