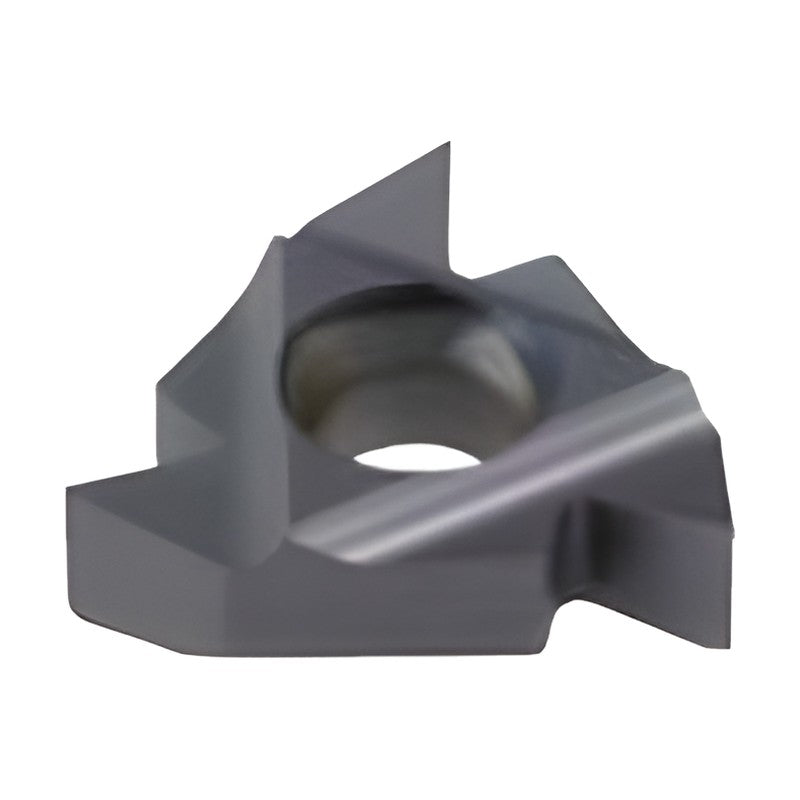

Korloy Threading Insert American ACME (ACME) External

Korloy Threading Insert American ACME (ACME) External

Full profile threading inserts for American ACME (ACME) threads, external machining.

Key features

  • Laid-down 3-edge threading insert for external threading
  • Precision-ground profile for high-quality thread surface finish
  • Right- and left-hand versions
  • Grades: PC5030T (universal PVD), PC3030T, PC9070T, PC5300
  • Applicable holders: ER(L)H / ER(L)H-C

Specifications

Thread standard American ACME (ACME)
Profile Full profile
Thread type External
Insert type Laid-down threading insert
Type External
ER11-16ACME Type: External | Hand: Right | Threads per inch (TPI): 16 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.92 | PDY (mm): 1.0 | PDX (mm): 1.1 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER16-16ACME Type: External | Hand: Right | Threads per inch (TPI): 16 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.92 | PDY (mm): 1.0 | PDX (mm): 1.1 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER16-14ACME Type: External | Hand: Right | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.03 | PDY (mm): 1.0 | PDX (mm): 1.2 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER16-12ACME Type: External | Hand: Right | Threads per inch (TPI): 12 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.19 | PDY (mm): 1.1 | PDX (mm): PDY | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER16-10ACME Type: External | Hand: Right | Threads per inch (TPI): 10 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.52 | PDY (mm): 1.3 | PDX (mm): 1.4 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER16-8ACME Type: External | Hand: Right | Threads per inch (TPI): 8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.84 | PDY (mm): 1.4 | PDX (mm): 1.5 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER16-6ACME Type: External | Hand: Right | Threads per inch (TPI): 6 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 2.37 | PDY (mm): 1.7 | PDX (mm): L | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER22-6ACME PC3030T Type: External | Hand: Right | Threads per inch (TPI): 6 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.37 | PDY (mm): 1.8 | PDX (mm): 2.1 | Grade: PC3030T | Stock: Yes
ER22-5ACME Type: External | Hand: Right | Threads per inch (TPI): 5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.79 | PDY (mm): 2.0 | PDX (mm): 2.3 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER27-4ACME Type: External | Hand: Right | Threads per inch (TPI): 4 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.43 | PDY (mm): 2.4 | PDX (mm): 2.7 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-16ACME Type: External | Hand: Left | Threads per inch (TPI): 16 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.92 | PDY (mm): 1.0 | PDX (mm): 1.1 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-16ACME Type: External | Hand: Left | Threads per inch (TPI): 16 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.92 | PDY (mm): 1.0 | PDX (mm): 1.1 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-14ACME Type: External | Hand: Left | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.03 | PDY (mm): 1.0 | PDX (mm): 1.2 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-12ACME Type: External | Hand: Left | Threads per inch (TPI): 12 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.19 | PDY (mm): 1.1 | PDX (mm): PDY | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-10ACME Type: External | Hand: Left | Threads per inch (TPI): 10 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.52 | PDY (mm): 1.3 | PDX (mm): 1.4 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-8ACME Type: External | Hand: Left | Threads per inch (TPI): 8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.84 | PDY (mm): 1.4 | PDX (mm): 1.5 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-6ACME Type: External | Hand: Left | Threads per inch (TPI): 6 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 2.37 | PDY (mm): 1.7 | PDX (mm): L | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL22-6ACME Type: External | Hand: Left | Threads per inch (TPI): 6 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.37 | PDY (mm): 1.8 | PDX (mm): 2.1 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL22-5ACME Type: External | Hand: Left | Threads per inch (TPI): 5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.79 | PDY (mm): 2.0 | PDX (mm): 2.3 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL27-4ACME Type: External | Hand: Left | Threads per inch (TPI): 4 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.43 | PDY (mm): 2.4 | PDX (mm): 2.7 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
Threading InsertsKorloy
20 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Threading Insert American ACME (ACME) External

Brand Korloy·Threading Inserts

Available part numbers (20)

ER11-16ACME, ER16-16ACME, ER16-14ACME, ER16-12ACME, ER16-10ACME, ER16-8ACME, ER16-6ACME, ER22-6ACME PC3030T, ER22-5ACME, ER27-4ACME + 10 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ER11-16ACMEType: External | Hand: Right | Threads per inch (TPI): 16 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.92 | PDY (mm): 1.0 | PDX (mm): 1.1 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER16-16ACMEType: External | Hand: Right | Threads per inch (TPI): 16 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.92 | PDY (mm): 1.0 | PDX (mm): 1.1 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER16-14ACMEType: External | Hand: Right | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.03 | PDY (mm): 1.0 | PDX (mm): 1.2 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER16-12ACMEType: External | Hand: Right | Threads per inch (TPI): 12 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.19 | PDY (mm): 1.1 | PDX (mm): PDY | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER16-10ACMEType: External | Hand: Right | Threads per inch (TPI): 10 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.52 | PDY (mm): 1.3 | PDX (mm): 1.4 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER16-8ACMEType: External | Hand: Right | Threads per inch (TPI): 8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.84 | PDY (mm): 1.4 | PDX (mm): 1.5 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER16-6ACMEType: External | Hand: Right | Threads per inch (TPI): 6 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 2.37 | PDY (mm): 1.7 | PDX (mm): L | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER22-6ACME PC3030TType: External | Hand: Right | Threads per inch (TPI): 6 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.37 | PDY (mm): 1.8 | PDX (mm): 2.1 | Grade: PC3030T | Stock: Yes
ER22-5ACMEType: External | Hand: Right | Threads per inch (TPI): 5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.79 | PDY (mm): 2.0 | PDX (mm): 2.3 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER27-4ACMEType: External | Hand: Right | Threads per inch (TPI): 4 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.43 | PDY (mm): 2.4 | PDX (mm): 2.7 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-16ACMEType: External | Hand: Left | Threads per inch (TPI): 16 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.92 | PDY (mm): 1.0 | PDX (mm): 1.1 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-16ACMEType: External | Hand: Left | Threads per inch (TPI): 16 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.92 | PDY (mm): 1.0 | PDX (mm): 1.1 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-14ACMEType: External | Hand: Left | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.03 | PDY (mm): 1.0 | PDX (mm): 1.2 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-12ACMEType: External | Hand: Left | Threads per inch (TPI): 12 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.19 | PDY (mm): 1.1 | PDX (mm): PDY | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-10ACMEType: External | Hand: Left | Threads per inch (TPI): 10 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.52 | PDY (mm): 1.3 | PDX (mm): 1.4 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-8ACMEType: External | Hand: Left | Threads per inch (TPI): 8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.84 | PDY (mm): 1.4 | PDX (mm): 1.5 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-6ACMEType: External | Hand: Left | Threads per inch (TPI): 6 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 2.37 | PDY (mm): 1.7 | PDX (mm): L | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL22-6ACMEType: External | Hand: Left | Threads per inch (TPI): 6 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.37 | PDY (mm): 1.8 | PDX (mm): 2.1 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL22-5ACMEType: External | Hand: Left | Threads per inch (TPI): 5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.79 | PDY (mm): 2.0 | PDX (mm): 2.3 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL27-4ACMEType: External | Hand: Left | Threads per inch (TPI): 4 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.43 | PDY (mm): 2.4 | PDX (mm): 2.7 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
