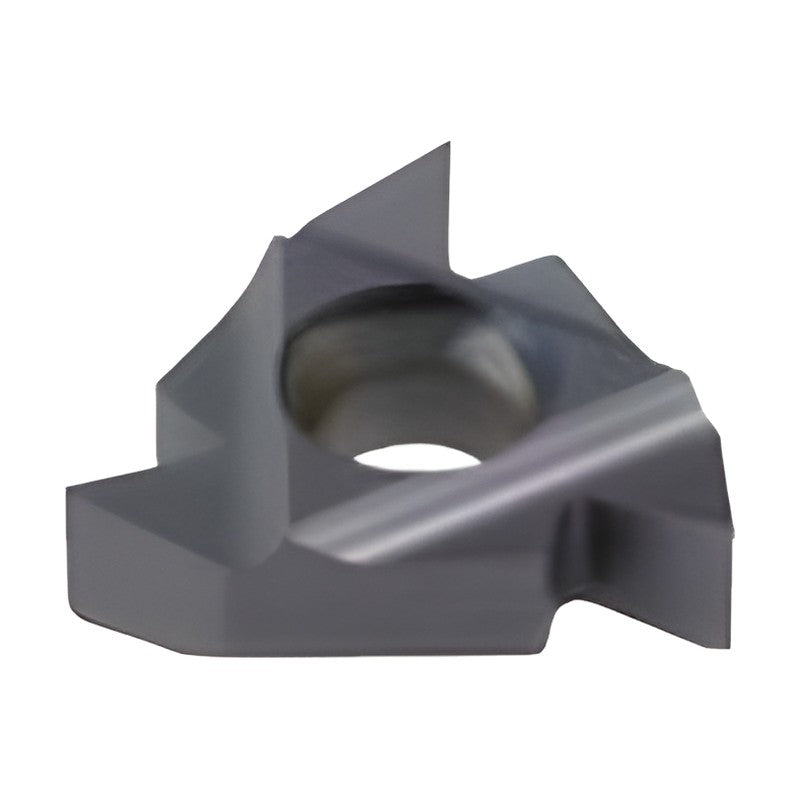

Full profile threading inserts for American buttress (ABUT) threads, external machining.

Key features

  • Laid-down 3-edge threading insert for external threading
  • Precision-ground profile for high-quality thread surface finish
  • Right- and left-hand versions
  • Grades: PC5030T (universal PVD), PC3030T, PC9070T, PC5300
  • Applicable holders: ER(L)H / ER(L)H-C

Specifications

Thread standard American buttress (ABUT)
Profile Full profile
Thread type External
Insert type Laid-down threading insert
Type External
Grades PC5030T / PC3030T / PC9070T / PC5300
Stock Not marked as stock item
ER11-20ABUT Type: External | Hand: Right | Threads per inch (TPI): 20 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.84 | PDY (mm): 1.0 | PDX (mm): 1.4 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER11-16ABUT Type: External | Hand: Right | Threads per inch (TPI): 16 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.05 | PDY (mm): 1.3 | PDX (mm): 1.9 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER16-20ABUT Type: External | Hand: Right | Threads per inch (TPI): 20 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.84 | PDY (mm): 1.0 | PDX (mm): PDY | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER16-16ABUT Type: External | Hand: Right | Threads per inch (TPI): 16 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.05 | PDY (mm): 1.3 | PDX (mm): 1.9 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER16-12ABUT Type: External | Hand: Right | Threads per inch (TPI): 12 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.40 | PDY (mm): 1.4 | PDX (mm): 2.0 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER16-10ABUT Type: External | Hand: Right | Threads per inch (TPI): 10 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.68 | PDY (mm): 1.5 | PDX (mm): 2.3 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER22-8ABUT Type: External | Hand: Right | Threads per inch (TPI): 8 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.10 | PDY (mm): 2.0 | PDX (mm): 3.2 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER22-6ABUT Type: External | Hand: Right | Threads per inch (TPI): 6 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.80 | PDY (mm): 2.2 | PDX (mm): 3.5 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-20ABUT Type: External | Hand: Left | Threads per inch (TPI): 20 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.84 | PDY (mm): 1.0 | PDX (mm): 1.4 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-16ABUT Type: External | Hand: Left | Threads per inch (TPI): 16 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.05 | PDY (mm): 1.3 | PDX (mm): 1.9 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-20ABUT Type: External | Hand: Left | Threads per inch (TPI): 20 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.84 | PDY (mm): 1.0 | PDX (mm): PDY | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-16ABUT Type: External | Hand: Left | Threads per inch (TPI): 16 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.05 | PDY (mm): 1.3 | PDX (mm): 1.9 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-12ABUT Type: External | Hand: Left | Threads per inch (TPI): 12 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.40 | PDY (mm): 1.4 | PDX (mm): 2.0 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-10ABUT Type: External | Hand: Left | Threads per inch (TPI): 10 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.68 | PDY (mm): 1.5 | PDX (mm): 2.3 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL22-8ABUT Type: External | Hand: Left | Threads per inch (TPI): 8 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.10 | PDY (mm): 2.0 | PDX (mm): 3.2 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL22-6ABUT Type: External | Hand: Left | Threads per inch (TPI): 6 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.80 | PDY (mm): 2.2 | PDX (mm): 3.5 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
