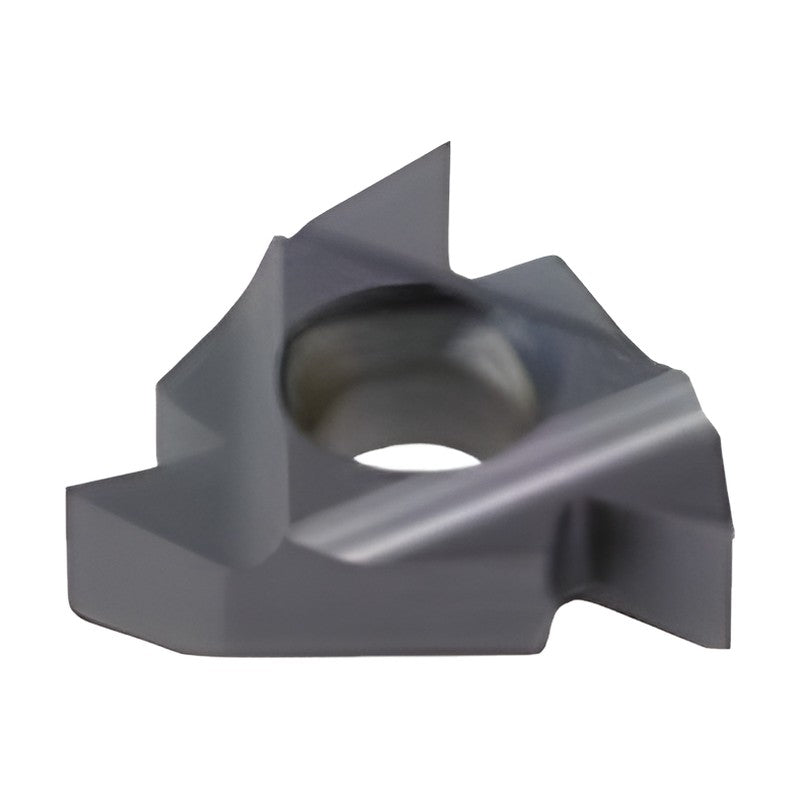

Korloy Threading Insert American UN (UN, UNC, UNF, UNEF, UNS) External

Korloy Threading Insert American UN (UN, UNC, UNF, UNEF, UNS) External

Full profile threading inserts for American UN (UN, UNC, UNF, UNEF, UNS) threads, external machining.

Key features

  • Laid-down 3-edge threading insert for external threading
  • Precision-ground profile for high-quality thread surface finish
  • Right- and left-hand versions
  • Grades: PC5030T (universal PVD), PC3030T, PC9070T, PC5300
  • Applicable holders: ER(L)H / ER(L)H-C

Specifications

Thread standard American UN (UN, UNC, UNF, UNEF, UNS)
Profile Full profile
Thread type External
Insert type Laid-down threading insert
Type External
ER11-72UN PC3030T Type: External | Hand: Right | Threads per inch (TPI): 72 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.22 | PDY (mm): 0.8 | PDX (mm): 0.4 | Grade: PC3030T | Stock: Yes
ER11-64UN PC3030T Type: External | Hand: Right | Threads per inch (TPI): 64 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.24 | PDY (mm): 0.8 | PDX (mm): 0.4 | Grade: PC3030T | Stock: Yes
ER11-56UN PC3030T Type: External | Hand: Right | Threads per inch (TPI): 56 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.28 | PDY (mm): 0.7 | PDX (mm): 0.4 | Grade: PC3030T | Stock: Yes
ER11-48UN PC3030T Type: External | Hand: Right | Threads per inch (TPI): 48 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.32 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC3030T | Stock: Yes
ER11-44UN PC3030T Type: External | Hand: Right | Threads per inch (TPI): 44 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.35 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC3030T | Stock: Yes
ER11-40UN PC5030T Type: External | Hand: Right | Threads per inch (TPI): 40 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.39 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
ER11-40UN PC3030T Type: External | Hand: Right | Threads per inch (TPI): 40 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.39 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC3030T | Stock: Yes
ER11-36UN PC3030T Type: External | Hand: Right | Threads per inch (TPI): 36 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.43 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC3030T | Stock: Yes
ER11-32UN PC5030T Type: External | Hand: Right | Threads per inch (TPI): 32 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.49 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
ER11-32UN PC3030T Type: External | Hand: Right | Threads per inch (TPI): 32 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.49 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC3030T | Stock: Yes
ER11-28UN PC5030T Type: External | Hand: Right | Threads per inch (TPI): 28 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.56 | PDY (mm): 0.6 | PDX (mm): 0.7 | Grade: PC5030T | Stock: Yes
ER11-28UN PC3030T Type: External | Hand: Right | Threads per inch (TPI): 28 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.56 | PDY (mm): 0.6 | PDX (mm): 0.7 | Grade: PC3030T | Stock: Yes
ER11-27UN PC3030T Type: External | Hand: Right | Threads per inch (TPI): 27 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.58 | PDY (mm): 0.7 | PDX (mm): 0.8 | Grade: PC3030T | Stock: Yes
ER11-24UN PC5030T Type: External | Hand: Right | Threads per inch (TPI): 24 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.65 | PDY (mm): 0.7 | PDX (mm): 0.8 | Grade: PC5030T | Stock: Yes
ER11-24UN PC3030T Type: External | Hand: Right | Threads per inch (TPI): 24 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.65 | PDY (mm): 0.7 | PDX (mm): 0.8 | Grade: PC3030T | Stock: Yes
ER11-20UN PC5030T Type: External | Hand: Right | Threads per inch (TPI): 20 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.78 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC5030T | Stock: Yes
ER11-20UN PC3030T Type: External | Hand: Right | Threads per inch (TPI): 20 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.78 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC3030T | Stock: Yes
ER11-18UN PC5030T Type: External | Hand: Right | Threads per inch (TPI): 18 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.87 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grade: PC5030T | Stock: Yes
ER11-18UN PC3030T Type: External | Hand: Right | Threads per inch (TPI): 18 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.87 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grade: PC3030T | Stock: Yes
ER11-16UN PC5030T Type: External | Hand: Right | Threads per inch (TPI): 16 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.97 | PDY (mm): 0.9 | PDX (mm): 1.1 | Grade: PC5030T | Stock: Yes
ER11-16UN PC3030T Type: External | Hand: Right | Threads per inch (TPI): 16 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.97 | PDY (mm): 0.9 | PDX (mm): 1.1 | Grade: PC3030T | Stock: Yes
ER11-14UN PC3030T Type: External | Hand: Right | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.11 | PDY (mm): 0.9 | PDX (mm): 1.1 | Grade: PC3030T | Stock: Yes
ER16-72UN PC5030T Type: External | Hand: Right | Threads per inch (TPI): 72 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.22 | PDY (mm): 0.8 | PDX (mm): 0.4 | Grade: PC5030T | Stock: Yes
ER16-64UN PC5030T Type: External | Hand: Right | Threads per inch (TPI): 64 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.24 | PDY (mm): 0.8 | PDX (mm): 0.4 | Grade: PC5030T | Stock: Yes
ER16-56UN PC5030T Type: External | Hand: Right | Threads per inch (TPI): 56 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.28 | PDY (mm): 0.7 | PDX (mm): 0.4 | Grade: PC5030T | Stock: Yes
ER16-48UN PC5030T Type: External | Hand: Right | Threads per inch (TPI): 48 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.32 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
ER16-44UN PC5030T Type: External | Hand: Right | Threads per inch (TPI): 44 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.35 | PDY (mm): 0.6 | PDX (mm): L | Grade: PC5030T | Stock: Yes
ER16-40UN PC5030T Type: External | Hand: Right | Threads per inch (TPI): 40 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.39 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
ER16-40UN PC3030T Type: External | Hand: Right | Threads per inch (TPI): 40 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.39 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC3030T | Stock: Yes
ER16-36UN PC5030T Type: External | Hand: Right | Threads per inch (TPI): 36 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.43 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
ER16-36UN PC3030T Type: External | Hand: Right | Threads per inch (TPI): 36 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.43 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC3030T | Stock: Yes
ER16-32UN PC5030T Type: External | Hand: Right | Threads per inch (TPI): 32 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.49 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
ER16-32UN PC3030T Type: External | Hand: Right | Threads per inch (TPI): 32 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.49 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC3030T | Stock: Yes
ER16-28UN PC5030T Type: External | Hand: Right | Threads per inch (TPI): 28 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.56 | PDY (mm): 0.6 | PDX (mm): 0.7 | Grade: PC5030T | Stock: Yes
ER16-28UN PC3030T Type: External | Hand: Right | Threads per inch (TPI): 28 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.56 | PDY (mm): 0.6 | PDX (mm): 0.7 | Grade: PC3030T | Stock: Yes
ER16-27UN PC5030T Type: External | Hand: Right | Threads per inch (TPI): 27 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.58 | PDY (mm): 0.7 | PDX (mm): 0.8 | Grade: PC5030T | Stock: Yes
ER16-27UN PC3030T Type: External | Hand: Right | Threads per inch (TPI): 27 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.58 | PDY (mm): 0.7 | PDX (mm): 0.8 | Grade: PC3030T | Stock: Yes
ER16-24UN PC5030T Type: External | Hand: Right | Threads per inch (TPI): 24 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.65 | PDY (mm): 0.7 | PDX (mm): 0.8 | Grade: PC5030T | Stock: Yes
ER16-24UN PC3030T Type: External | Hand: Right | Threads per inch (TPI): 24 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.65 | PDY (mm): 0.7 | PDX (mm): 0.8 | Grade: PC3030T | Stock: Yes
ER16-24UN PC9070T Type: External | Hand: Right | Threads per inch (TPI): 24 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.65 | PDY (mm): 0.7 | PDX (mm): 0.8 | Grade: PC9070T | Stock: Yes
ER16-20UN PC5030T Type: External | Hand: Right | Threads per inch (TPI): 20 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.78 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC5030T | Stock: Yes
ER16-20UN PC3030T Type: External | Hand: Right | Threads per inch (TPI): 20 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.78 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC3030T | Stock: Yes
ER16-20UN PC9070T Type: External | Hand: Right | Threads per inch (TPI): 20 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.78 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC9070T | Stock: Yes
ER16-18UN PC5030T Type: External | Hand: Right | Threads per inch (TPI): 18 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.87 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grade: PC5030T | Stock: Yes
ER16-18UN PC3030T Type: External | Hand: Right | Threads per inch (TPI): 18 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.87 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grade: PC3030T | Stock: Yes
ER16-18UN PC9070T Type: External | Hand: Right | Threads per inch (TPI): 18 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.87 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grade: PC9070T | Stock: Yes
ER16-16UN PC5030T Type: External | Hand: Right | Threads per inch (TPI): 16 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.97 | PDY (mm): 0.9 | PDX (mm): 1.1 | Grade: PC5030T | Stock: Yes
ER16-16UN PC3030T Type: External | Hand: Right | Threads per inch (TPI): 16 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.97 | PDY (mm): 0.9 | PDX (mm): 1.1 | Grade: PC3030T | Stock: Yes
ER16-16UN PC9070T Type: External | Hand: Right | Threads per inch (TPI): 16 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.97 | PDY (mm): 0.9 | PDX (mm): 1.1 | Grade: PC9070T | Stock: Yes
ER16-14UN PC5030T Type: External | Hand: Right | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.11 | PDY (mm): 1.0 | PDX (mm): 1.2 | Grade: PC5030T | Stock: Yes
ER16-14UN PC3030T Type: External | Hand: Right | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.11 | PDY (mm): 1.0 | PDX (mm): 1.2 | Grade: PC3030T | Stock: Yes
ER16-14UN PC9070T Type: External | Hand: Right | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.11 | PDY (mm): 1.0 | PDX (mm): 1.2 | Grade: PC9070T | Stock: Yes
ER16-13UN PC5030T Type: External | Hand: Right | Threads per inch (TPI): 13 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.20 | PDY (mm): 1.0 | PDX (mm): 1.3 | Grade: PC5030T | Stock: Yes
ER16-13UN PC3030T Type: External | Hand: Right | Threads per inch (TPI): 13 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.20 | PDY (mm): 1.0 | PDX (mm): 1.3 | Grade: PC3030T | Stock: Yes
ER16-12UN PC5030T Type: External | Hand: Right | Threads per inch (TPI): 12 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.30 | PDY (mm): 1.1 | PDX (mm): 1.4 | Grade: PC5030T | Stock: Yes
ER16-12UN PC3030T Type: External | Hand: Right | Threads per inch (TPI): 12 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.30 | PDY (mm): 1.1 | PDX (mm): 1.4 | Grade: PC3030T | Stock: Yes
ER16-12UN PC9070T Type: External | Hand: Right | Threads per inch (TPI): 12 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.30 | PDY (mm): 1.1 | PDX (mm): 1.4 | Grade: PC9070T | Stock: Yes
ER16-11.5UN PC5030T Type: External | Hand: Right | Threads per inch (TPI): 11.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.35 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC5030T | Stock: Yes
ER16-11UN PC5030T Type: External | Hand: Right | Threads per inch (TPI): 11 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.42 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC5030T | Stock: Yes
ER16-11UN PC3030T Type: External | Hand: Right | Threads per inch (TPI): 11 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.42 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC3030T | Stock: Yes
ER16-11UN PC9070T Type: External | Hand: Right | Threads per inch (TPI): 11 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.42 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC9070T | Stock: Yes
ER16-10UN PC5030T Type: External | Hand: Right | Threads per inch (TPI): 10 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.56 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC5030T | Stock: Yes
ER16-10UN PC3030T Type: External | Hand: Right | Threads per inch (TPI): 10 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.56 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC3030T | Stock: Yes
ER16-10UN PC9070T Type: External | Hand: Right | Threads per inch (TPI): 10 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.56 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC9070T | Stock: Yes
ER16-9UN PC5030T Type: External | Hand: Right | Threads per inch (TPI): 9 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.73 | PDY (mm): 1.2 | PDX (mm): 1.7 | Grade: PC5030T | Stock: Yes
ER16-9UN PC3030T Type: External | Hand: Right | Threads per inch (TPI): 9 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.73 | PDY (mm): 1.2 | PDX (mm): 1.7 | Grade: PC3030T | Stock: Yes
ER16-8UN PC5030T Type: External | Hand: Right | Threads per inch (TPI): 8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.95 | PDY (mm): 1.2 | PDX (mm): 1.6 | Grade: PC5030T | Stock: Yes
ER16-8UN PC3030T Type: External | Hand: Right | Threads per inch (TPI): 8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.95 | PDY (mm): 1.2 | PDX (mm): 1.6 | Grade: PC3030T | Stock: Yes
ER16-8UN PC9070T Type: External | Hand: Right | Threads per inch (TPI): 8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.95 | PDY (mm): 1.2 | PDX (mm): 1.6 | Grade: PC9070T | Stock: Yes
ER22-7UN PC5030T Type: External | Hand: Right | Threads per inch (TPI): 7 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.22 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC5030T | Stock: Yes
ER22-6UN PC5030T Type: External | Hand: Right | Threads per inch (TPI): 6 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.60 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC5030T | Stock: Yes
ER22-6UN PC3030T Type: External | Hand: Right | Threads per inch (TPI): 6 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.60 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC3030T | Stock: Yes
ER22-5UN PC5030T Type: External | Hand: Right | Threads per inch (TPI): 5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 3.12 | PDY (mm): 1.7 | PDX (mm): 2.5 | Grade: PC5030T | Stock: Yes
ER22-5UN PC3030T Type: External | Hand: Right | Threads per inch (TPI): 5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 3.12 | PDY (mm): 1.7 | PDX (mm): 2.5 | Grade: PC3030T | Stock: Yes
ER27-4.5UN PC5030T Type: External | Hand: Right | Threads per inch (TPI): 4.5 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.46 | PDY (mm): 1.9 | PDX (mm): 2.7 | Grade: PC5030T | Stock: Yes
ER27-4UN PC5030T Type: External | Hand: Right | Threads per inch (TPI): 4 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.89 | PDY (mm): 2.1 | PDX (mm): 3.0 | Grade: PC5030T | Stock: Yes
EL11-72UN Type: External | Hand: Left | Threads per inch (TPI): 72 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.22 | PDY (mm): 0.8 | PDX (mm): 0.4 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-64UN Type: External | Hand: Left | Threads per inch (TPI): 64 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.24 | PDY (mm): 0.8 | PDX (mm): 0.4 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-56UN Type: External | Hand: Left | Threads per inch (TPI): 56 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.28 | PDY (mm): 0.7 | PDX (mm): 0.4 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-48UN Type: External | Hand: Left | Threads per inch (TPI): 48 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.32 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-44UN Type: External | Hand: Left | Threads per inch (TPI): 44 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.35 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-40UN Type: External | Hand: Left | Threads per inch (TPI): 40 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.39 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-36UN Type: External | Hand: Left | Threads per inch (TPI): 36 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.43 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-32UN Type: External | Hand: Left | Threads per inch (TPI): 32 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.49 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-28UN Type: External | Hand: Left | Threads per inch (TPI): 28 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.56 | PDY (mm): 0.6 | PDX (mm): 0.7 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-27UN Type: External | Hand: Left | Threads per inch (TPI): 27 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.58 | PDY (mm): 0.7 | PDX (mm): 0.8 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-24UN Type: External | Hand: Left | Threads per inch (TPI): 24 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.65 | PDY (mm): 0.7 | PDX (mm): 0.8 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-20UN Type: External | Hand: Left | Threads per inch (TPI): 20 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.78 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-18UN Type: External | Hand: Left | Threads per inch (TPI): 18 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.87 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-16UN Type: External | Hand: Left | Threads per inch (TPI): 16 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.97 | PDY (mm): 0.9 | PDX (mm): 1.1 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-14UN Type: External | Hand: Left | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.11 | PDY (mm): 0.9 | PDX (mm): 1.1 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-72UN Type: External | Hand: Left | Threads per inch (TPI): 72 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.22 | PDY (mm): 0.8 | PDX (mm): 0.4 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-64UN Type: External | Hand: Left | Threads per inch (TPI): 64 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.24 | PDY (mm): 0.8 | PDX (mm): 0.4 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-56UN Type: External | Hand: Left | Threads per inch (TPI): 56 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.28 | PDY (mm): 0.7 | PDX (mm): 0.4 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-48UN Type: External | Hand: Left | Threads per inch (TPI): 48 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.32 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-44UN Type: External | Hand: Left | Threads per inch (TPI): 44 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.35 | PDY (mm): 0.6 | PDX (mm): L | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-40UN PC5030T Type: External | Hand: Left | Threads per inch (TPI): 40 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.39 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
EL16-36UN Type: External | Hand: Left | Threads per inch (TPI): 36 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.43 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-32UN PC5030T Type: External | Hand: Left | Threads per inch (TPI): 32 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.49 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
EL16-28UN PC5030T Type: External | Hand: Left | Threads per inch (TPI): 28 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.56 | PDY (mm): 0.6 | PDX (mm): 0.7 | Grade: PC5030T | Stock: Yes
EL16-27UN Type: External | Hand: Left | Threads per inch (TPI): 27 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.58 | PDY (mm): 0.7 | PDX (mm): 0.8 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-24UN PC5030T Type: External | Hand: Left | Threads per inch (TPI): 24 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.65 | PDY (mm): 0.7 | PDX (mm): 0.8 | Grade: PC5030T | Stock: Yes
EL16-20UN PC5030T Type: External | Hand: Left | Threads per inch (TPI): 20 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.78 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC5030T | Stock: Yes
EL16-18UN PC5030T Type: External | Hand: Left | Threads per inch (TPI): 18 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.87 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grade: PC5030T | Stock: Yes
EL16-18UN PC3030T Type: External | Hand: Left | Threads per inch (TPI): 18 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.87 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grade: PC3030T | Stock: Yes
EL16-16UN PC5030T Type: External | Hand: Left | Threads per inch (TPI): 16 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.97 | PDY (mm): 0.9 | PDX (mm): 1.1 | Grade: PC5030T | Stock: Yes
EL16-16UN PC3030T Type: External | Hand: Left | Threads per inch (TPI): 16 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.97 | PDY (mm): 0.9 | PDX (mm): 1.1 | Grade: PC3030T | Stock: Yes
EL16-14UN PC5030T Type: External | Hand: Left | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.11 | PDY (mm): 1.0 | PDX (mm): 1.2 | Grade: PC5030T | Stock: Yes
EL16-13UN PC5030T Type: External | Hand: Left | Threads per inch (TPI): 13 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.20 | PDY (mm): 1.0 | PDX (mm): 1.3 | Grade: PC5030T | Stock: Yes
EL16-12UN PC5030T Type: External | Hand: Left | Threads per inch (TPI): 12 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.30 | PDY (mm): 1.1 | PDX (mm): 1.4 | Grade: PC5030T | Stock: Yes
EL16-11.5UN Type: External | Hand: Left | Threads per inch (TPI): 11.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.35 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-11UN PC5030T Type: External | Hand: Left | Threads per inch (TPI): 11 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.42 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC5030T | Stock: Yes
EL16-10UN PC5030T Type: External | Hand: Left | Threads per inch (TPI): 10 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.56 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC5030T | Stock: Yes
EL16-10UN PC3030T Type: External | Hand: Left | Threads per inch (TPI): 10 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.56 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC3030T | Stock: Yes
EL16-9UN Type: External | Hand: Left | Threads per inch (TPI): 9 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.73 | PDY (mm): 1.2 | PDX (mm): 1.7 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-8UN PC5030T Type: External | Hand: Left | Threads per inch (TPI): 8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.95 | PDY (mm): 1.2 | PDX (mm): 1.6 | Grade: PC5030T | Stock: Yes
EL16-8UN PC3030T Type: External | Hand: Left | Threads per inch (TPI): 8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.95 | PDY (mm): 1.2 | PDX (mm): 1.6 | Grade: PC3030T | Stock: Yes
EL22-7UN Type: External | Hand: Left | Threads per inch (TPI): 7 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.22 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL22-6UN Type: External | Hand: Left | Threads per inch (TPI): 6 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.60 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL22-5UN Type: External | Hand: Left | Threads per inch (TPI): 5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 3.12 | PDY (mm): 1.7 | PDX (mm): 2.5 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL27-4.5UN Type: External | Hand: Left | Threads per inch (TPI): 4.5 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.46 | PDY (mm): 1.9 | PDX (mm): 2.7 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL27-4UN Type: External | Hand: Left | Threads per inch (TPI): 4 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.89 | PDY (mm): 2.1 | PDX (mm): 3.0 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
