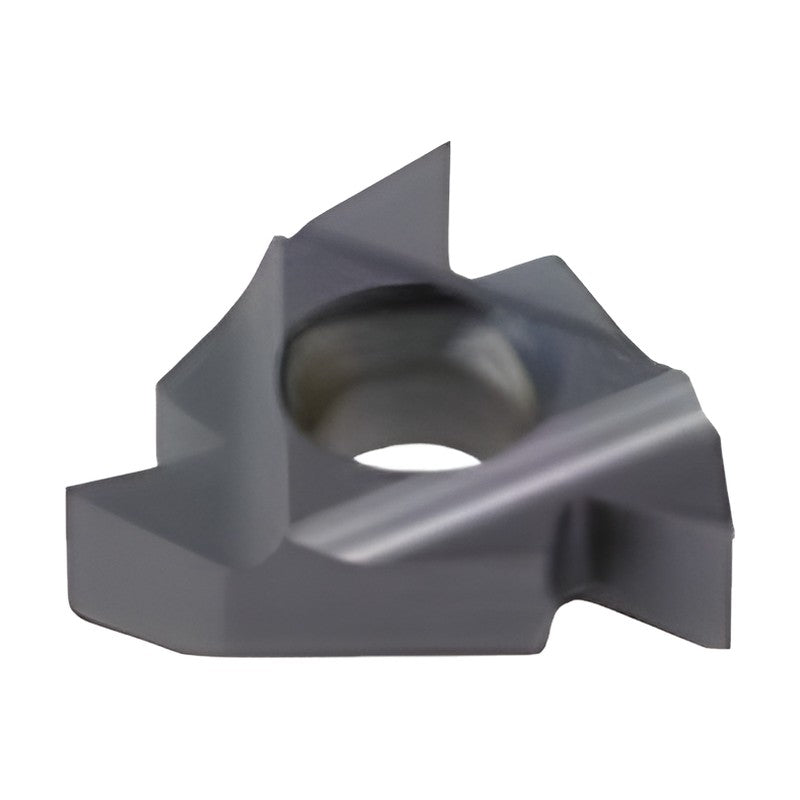

Korloy Threading Insert API External

Korloy Threading Insert API External

Full profile threading inserts for API threads, external machining.

Key features

  • Laid-down 3-edge threading insert for external threading
  • Precision-ground profile for high-quality thread surface finish
  • Right- and left-hand versions
  • Grades: PC5030T (universal PVD), PC3030T, PC9070T, PC5300
  • Applicable holders: ER(L)H / ER(L)H-C

Specifications

Thread standard API
Profile Full profile
Thread type External
Insert type Laid-down threading insert
Type External
Grades PC5030T / PC3030T / PC9070T / PC5300
Stock Not marked as stock item
ER22-4API382 Type: External | Hand: Right | Threads per inch (TPI): 4 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 3.09 | PDY (mm): 2.1 | PDX (mm): 2.8 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER22-4API383 Type: External | Hand: Right | Threads per inch (TPI): 4 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 3.08 | PDY (mm): 2.1 | PDX (mm): 2.8 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER22-4API502 Type: External | Hand: Right | Threads per inch (TPI): 4 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 3.75 | PDY (mm): 2.0 | PDX (mm): 2.9 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER22-4API503 Type: External | Hand: Right | Threads per inch (TPI): 4 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 3.74 | PDY (mm): 2.0 | PDX (mm): 2.9 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER22-5API403 Type: External | Hand: Right | Threads per inch (TPI): 5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.99 | PDY (mm): 1.8 | PDX (mm): PDY | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER22-6API551 Type: External | Hand: Right | Threads per inch (TPI): 6 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 1.41 | PDY (mm): 2.6 | PDX (mm): 2.0 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER27-4API382 Type: External | Hand: Right | Threads per inch (TPI): 4 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.09 | PDY (mm): 2.1 | PDX (mm): L | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER27-4API383 Type: External | Hand: Right | Threads per inch (TPI): 4 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.08 | PDY (mm): 2.1 | PDX (mm): 2.8 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER27-4API502 Type: External | Hand: Right | Threads per inch (TPI): 4 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.75 | PDY (mm): 2.1 | PDX (mm): 3.1 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER27-4API503 Type: External | Hand: Right | Threads per inch (TPI): 4 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.74 | PDY (mm): 2.1 | PDX (mm): 3.1 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER27-5API403 Type: External | Hand: Right | Threads per inch (TPI): 5 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 2.99 | PDY (mm): 1.9 | PDX (mm): 2.7 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL22-4API382 Type: External | Hand: Left | Threads per inch (TPI): 4 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 3.09 | PDY (mm): 2.1 | PDX (mm): 2.8 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL22-4API383 Type: External | Hand: Left | Threads per inch (TPI): 4 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 3.08 | PDY (mm): 2.1 | PDX (mm): 2.8 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL22-4API502 Type: External | Hand: Left | Threads per inch (TPI): 4 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 3.75 | PDY (mm): 2.0 | PDX (mm): 2.9 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL22-4API503 Type: External | Hand: Left | Threads per inch (TPI): 4 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 3.74 | PDY (mm): 2.0 | PDX (mm): 2.9 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL22-5API403 Type: External | Hand: Left | Threads per inch (TPI): 5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.99 | PDY (mm): 1.8 | PDX (mm): PDY | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL22-6API551 Type: External | Hand: Left | Threads per inch (TPI): 6 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 1.41 | PDY (mm): 2.6 | PDX (mm): 2.0 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL27-4API382 Type: External | Hand: Left | Threads per inch (TPI): 4 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.09 | PDY (mm): 2.1 | PDX (mm): L | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL27-4API383 Type: External | Hand: Left | Threads per inch (TPI): 4 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.08 | PDY (mm): 2.1 | PDX (mm): 2.8 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL27-4API502 Type: External | Hand: Left | Threads per inch (TPI): 4 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.75 | PDY (mm): 2.1 | PDX (mm): 3.1 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL27-4API503 Type: External | Hand: Left | Threads per inch (TPI): 4 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.74 | PDY (mm): 2.1 | PDX (mm): 3.1 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL27-5API403 Type: External | Hand: Left | Threads per inch (TPI): 5 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 2.99 | PDY (mm): 1.9 | PDX (mm): 2.7 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
Threading InsertsKorloy
22 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Threading Insert API External

Brand Korloy·Threading Inserts

Available part numbers (22)

ER22-4API382, ER22-4API383, ER22-4API502, ER22-4API503, ER22-5API403, ER22-6API551, ER27-4API382, ER27-4API383, ER27-4API502, ER27-4API503 + 12 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ER22-4API382Type: External | Hand: Right | Threads per inch (TPI): 4 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 3.09 | PDY (mm): 2.1 | PDX (mm): 2.8 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER22-4API383Type: External | Hand: Right | Threads per inch (TPI): 4 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 3.08 | PDY (mm): 2.1 | PDX (mm): 2.8 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER22-4API502Type: External | Hand: Right | Threads per inch (TPI): 4 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 3.75 | PDY (mm): 2.0 | PDX (mm): 2.9 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER22-4API503Type: External | Hand: Right | Threads per inch (TPI): 4 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 3.74 | PDY (mm): 2.0 | PDX (mm): 2.9 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER22-5API403Type: External | Hand: Right | Threads per inch (TPI): 5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.99 | PDY (mm): 1.8 | PDX (mm): PDY | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER22-6API551Type: External | Hand: Right | Threads per inch (TPI): 6 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 1.41 | PDY (mm): 2.6 | PDX (mm): 2.0 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER27-4API382Type: External | Hand: Right | Threads per inch (TPI): 4 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.09 | PDY (mm): 2.1 | PDX (mm): L | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER27-4API383Type: External | Hand: Right | Threads per inch (TPI): 4 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.08 | PDY (mm): 2.1 | PDX (mm): 2.8 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER27-4API502Type: External | Hand: Right | Threads per inch (TPI): 4 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.75 | PDY (mm): 2.1 | PDX (mm): 3.1 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER27-4API503Type: External | Hand: Right | Threads per inch (TPI): 4 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.74 | PDY (mm): 2.1 | PDX (mm): 3.1 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER27-5API403Type: External | Hand: Right | Threads per inch (TPI): 5 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 2.99 | PDY (mm): 1.9 | PDX (mm): 2.7 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL22-4API382Type: External | Hand: Left | Threads per inch (TPI): 4 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 3.09 | PDY (mm): 2.1 | PDX (mm): 2.8 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL22-4API383Type: External | Hand: Left | Threads per inch (TPI): 4 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 3.08 | PDY (mm): 2.1 | PDX (mm): 2.8 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL22-4API502Type: External | Hand: Left | Threads per inch (TPI): 4 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 3.75 | PDY (mm): 2.0 | PDX (mm): 2.9 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL22-4API503Type: External | Hand: Left | Threads per inch (TPI): 4 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 3.74 | PDY (mm): 2.0 | PDX (mm): 2.9 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL22-5API403Type: External | Hand: Left | Threads per inch (TPI): 5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.99 | PDY (mm): 1.8 | PDX (mm): PDY | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL22-6API551Type: External | Hand: Left | Threads per inch (TPI): 6 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 1.41 | PDY (mm): 2.6 | PDX (mm): 2.0 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL27-4API382Type: External | Hand: Left | Threads per inch (TPI): 4 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.09 | PDY (mm): 2.1 | PDX (mm): L | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL27-4API383Type: External | Hand: Left | Threads per inch (TPI): 4 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.08 | PDY (mm): 2.1 | PDX (mm): 2.8 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL27-4API502Type: External | Hand: Left | Threads per inch (TPI): 4 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.75 | PDY (mm): 2.1 | PDX (mm): 3.1 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL27-4API503Type: External | Hand: Left | Threads per inch (TPI): 4 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.74 | PDY (mm): 2.1 | PDX (mm): 3.1 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL27-5API403Type: External | Hand: Left | Threads per inch (TPI): 5 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 2.99 | PDY (mm): 1.9 | PDX (mm): 2.7 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
