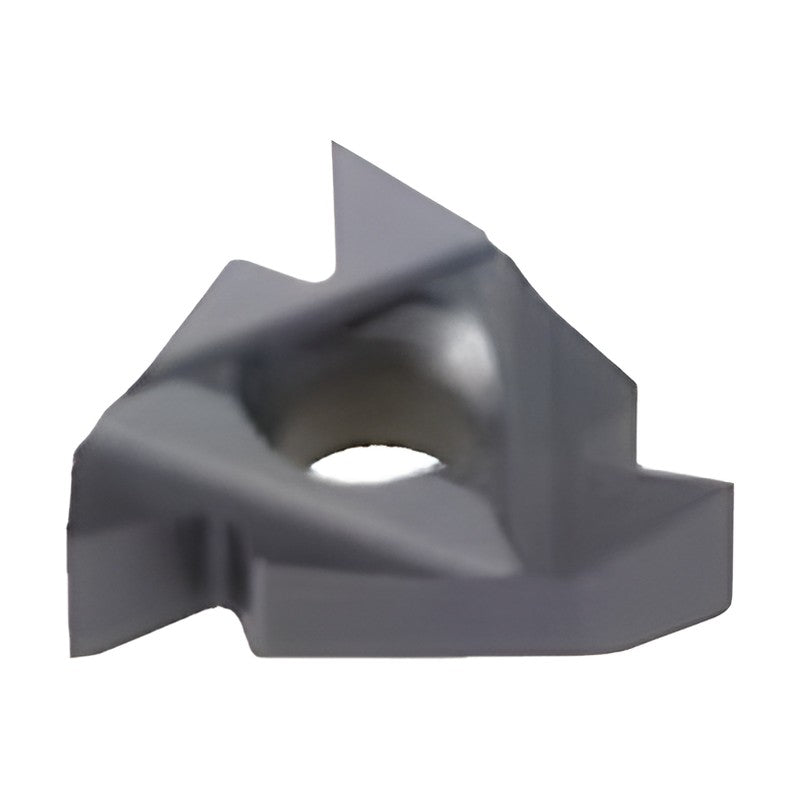

Korloy Threading Insert API round casing & Tubing (APIRD) Internal

Korloy Threading Insert API round casing & Tubing (APIRD) Internal

Full profile threading inserts for API round casing & Tubing (APIRD) threads, internal machining.

Key features

  • Laid-down 3-edge threading insert for internal threading
  • Precision-ground profile for high-quality thread surface finish
  • Right- and left-hand versions
  • Grades: PC5030T (universal PVD), PC3030T, PC9070T, PC5300
  • Applicable holders: IR(L)H / IR(L)H-C

Specifications

Thread standard API round casing & Tubing (APIRD)
Profile Full profile
Thread type Internal
Insert type Laid-down threading insert
Type Internal
Inscribed circle IC (mm) 9.525
Insert size L (mm) 16
IR16-10APIRD PC3030T Type: Internal | Hand: Right | Threads per inch (TPI): 10 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.41 | PDY (mm): 1.2 | PDX (mm): 1.4 | Grade: PC3030T | Stock: Yes
IR16-8APIRD PC3030T Type: Internal | Hand: Right | Threads per inch (TPI): 8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.81 | PDY (mm): 1.3 | PDX (mm): 1.5 | Grade: PC3030T | Stock: Yes
IL16-10APIRD Type: Internal | Hand: Left | Threads per inch (TPI): 10 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.41 | PDY (mm): 1.2 | PDX (mm): 1.4 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL16-8APIRD Type: Internal | Hand: Left | Threads per inch (TPI): 8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.81 | PDY (mm): 1.3 | PDX (mm): 1.5 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
Threading InsertsKorloy
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Threading Insert API round casing & Tubing (APIRD) Internal

Brand Korloy·Threading Inserts

Available part numbers (4)

IR16-10APIRD PC3030T, IR16-8APIRD PC3030T, IL16-10APIRD, IL16-8APIRD

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IR16-10APIRD PC3030TType: Internal | Hand: Right | Threads per inch (TPI): 10 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.41 | PDY (mm): 1.2 | PDX (mm): 1.4 | Grade: PC3030T | Stock: Yes
IR16-8APIRD PC3030TType: Internal | Hand: Right | Threads per inch (TPI): 8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.81 | PDY (mm): 1.3 | PDX (mm): 1.5 | Grade: PC3030T | Stock: Yes
IL16-10APIRDType: Internal | Hand: Left | Threads per inch (TPI): 10 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.41 | PDY (mm): 1.2 | PDX (mm): 1.4 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL16-8APIRDType: Internal | Hand: Left | Threads per inch (TPI): 8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.81 | PDY (mm): 1.3 | PDX (mm): 1.5 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
