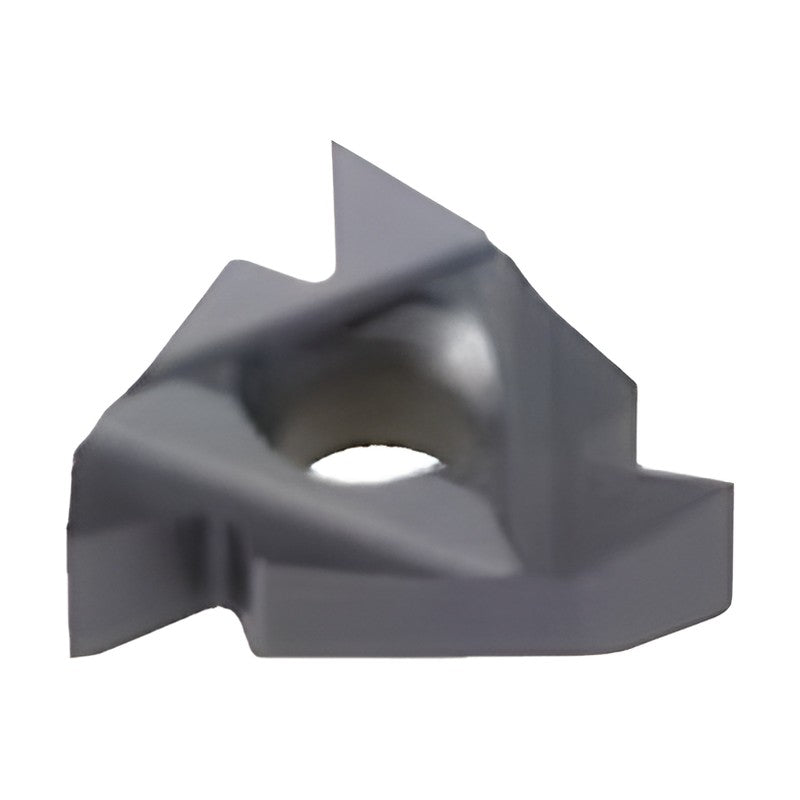

Korloy Threading Insert British buttress (BBUT) Internal

Korloy Threading Insert British buttress (BBUT) Internal

Full profile threading inserts for British buttress (BBUT) threads, internal machining.

Key features

  • Laid-down 3-edge threading insert for internal threading
  • Precision-ground profile for high-quality thread surface finish
  • Right- and left-hand versions
  • Grades: PC5030T (universal PVD), PC3030T, PC9070T, PC5300
  • Applicable holders: IR(L)H / IR(L)H-C

Specifications

Thread standard British buttress (BBUT)
Profile Full profile
Thread type Internal
Insert type Laid-down threading insert
Type Internal
Grades PC5030T / PC3030T / PC9070T / PC5300
Stock Not marked as stock item
IR16-16BBUT Type: Internal | Hand: Right | Threads per inch (TPI): 16 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.80 | PDY (mm): 1.1 | PDX (mm): 1.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IR16-12BBUT Type: Internal | Hand: Right | Threads per inch (TPI): 12 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.07 | PDY (mm): 1.4 | PDX (mm): 2.1 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IR16-10BBUT Type: Internal | Hand: Right | Threads per inch (TPI): 10 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.28 | PDY (mm): 1.4 | PDX (mm): 2.2 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IR16-8BBUT Type: Internal | Hand: Right | Threads per inch (TPI): 8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.61 | PDY (mm): 1.6 | PDX (mm): 2.5 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IR22-8BBUT Type: Internal | Hand: Right | Threads per inch (TPI): 8 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 1.61 | PDY (mm): 1.6 | PDX (mm): 2.5 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL16-16BBUT Type: Internal | Hand: Left | Threads per inch (TPI): 16 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.80 | PDY (mm): 1.1 | PDX (mm): 1.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL16-12BBUT Type: Internal | Hand: Left | Threads per inch (TPI): 12 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.07 | PDY (mm): 1.4 | PDX (mm): 2.1 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL16-10BBUT Type: Internal | Hand: Left | Threads per inch (TPI): 10 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.28 | PDY (mm): 1.4 | PDX (mm): 2.2 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL16-8BBUT Type: Internal | Hand: Left | Threads per inch (TPI): 8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.61 | PDY (mm): 1.6 | PDX (mm): 2.5 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL22-8BBUT Type: Internal | Hand: Left | Threads per inch (TPI): 8 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 1.61 | PDY (mm): 1.6 | PDX (mm): 2.5 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
Threading InsertsKorloy
10 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Threading Insert British buttress (BBUT) Internal

Brand Korloy·Threading Inserts

Available part numbers (10)

IR16-16BBUT, IR16-12BBUT, IR16-10BBUT, IR16-8BBUT, IR22-8BBUT, IL16-16BBUT, IL16-12BBUT, IL16-10BBUT, IL16-8BBUT, IL22-8BBUT

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IR16-16BBUTType: Internal | Hand: Right | Threads per inch (TPI): 16 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.80 | PDY (mm): 1.1 | PDX (mm): 1.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IR16-12BBUTType: Internal | Hand: Right | Threads per inch (TPI): 12 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.07 | PDY (mm): 1.4 | PDX (mm): 2.1 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IR16-10BBUTType: Internal | Hand: Right | Threads per inch (TPI): 10 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.28 | PDY (mm): 1.4 | PDX (mm): 2.2 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IR16-8BBUTType: Internal | Hand: Right | Threads per inch (TPI): 8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.61 | PDY (mm): 1.6 | PDX (mm): 2.5 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IR22-8BBUTType: Internal | Hand: Right | Threads per inch (TPI): 8 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 1.61 | PDY (mm): 1.6 | PDX (mm): 2.5 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL16-16BBUTType: Internal | Hand: Left | Threads per inch (TPI): 16 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.80 | PDY (mm): 1.1 | PDX (mm): 1.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL16-12BBUTType: Internal | Hand: Left | Threads per inch (TPI): 12 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.07 | PDY (mm): 1.4 | PDX (mm): 2.1 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL16-10BBUTType: Internal | Hand: Left | Threads per inch (TPI): 10 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.28 | PDY (mm): 1.4 | PDX (mm): 2.2 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL16-8BBUTType: Internal | Hand: Left | Threads per inch (TPI): 8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.61 | PDY (mm): 1.6 | PDX (mm): 2.5 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL22-8BBUTType: Internal | Hand: Left | Threads per inch (TPI): 8 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 1.61 | PDY (mm): 1.6 | PDX (mm): 2.5 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
