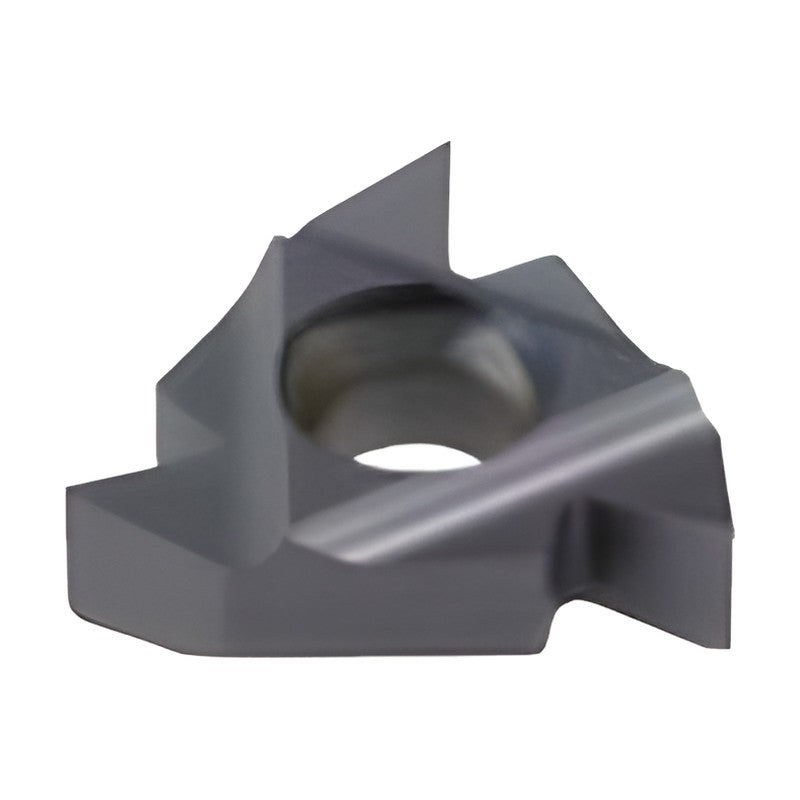

Korloy Threading Insert British Standard Pipe Thread (BSPT) External

Korloy Threading Insert British Standard Pipe Thread (BSPT) External

Full profile threading inserts for British Standard Pipe Thread (BSPT) threads, external machining.

Key features

  • Laid-down 3-edge threading insert for external threading
  • Precision-ground profile for high-quality thread surface finish
  • Right- and left-hand versions
  • Grades: PC5030T (universal PVD), PC3030T, PC9070T, PC5300
  • Applicable holders: ER(L)H / ER(L)H-C

Specifications

Thread standard British Standard Pipe Thread (BSPT)
Profile Full profile
Thread type External
Insert type Laid-down threading insert
Type External
ER11-28BSPT Type: External | Hand: Right | Threads per inch (TPI): 28 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.58 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER11-19BSPT Type: External | Hand: Right | Threads per inch (TPI): 19 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.86 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER11-14BSPT Type: External | Hand: Right | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.16 | PDY (mm): 0.9 | PDX (mm): PDY | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER16-28BSPT Type: External | Hand: Right | Threads per inch (TPI): 28 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.58 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER16-19BSPT PC3030T Type: External | Hand: Right | Threads per inch (TPI): 19 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.86 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC3030T | Stock: Yes
ER16-14BSPT PC9070T Type: External | Hand: Right | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.16 | PDY (mm): 1.0 | PDX (mm): 1.2 | Grade: PC9070T | Stock: Yes
ER16-11BSPT PC3030T Type: External | Hand: Right | Threads per inch (TPI): 11 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.48 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC3030T | Stock: Yes
ER16-11BSPT PC9070T Type: External | Hand: Right | Threads per inch (TPI): 11 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.48 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC9070T | Stock: Yes
EL11-28BSPT Type: External | Hand: Left | Threads per inch (TPI): 28 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.58 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-19BSPT Type: External | Hand: Left | Threads per inch (TPI): 19 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.86 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-14BSPT Type: External | Hand: Left | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.16 | PDY (mm): 0.9 | PDX (mm): PDY | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-28BSPT Type: External | Hand: Left | Threads per inch (TPI): 28 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.58 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-19BSPT Type: External | Hand: Left | Threads per inch (TPI): 19 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.86 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-14BSPT Type: External | Hand: Left | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.16 | PDY (mm): 1.0 | PDX (mm): 1.2 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-11BSPT Type: External | Hand: Left | Threads per inch (TPI): 11 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.48 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
Threading InsertsKorloy
15 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Threading Insert British Standard Pipe Thread (BSPT) External

Brand Korloy·Threading Inserts

Available part numbers (15)

ER11-28BSPT, ER11-19BSPT, ER11-14BSPT, ER16-28BSPT, ER16-19BSPT PC3030T, ER16-14BSPT PC9070T, ER16-11BSPT PC3030T, ER16-11BSPT PC9070T, EL11-28BSPT, EL11-19BSPT + 5 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ER11-28BSPTType: External | Hand: Right | Threads per inch (TPI): 28 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.58 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER11-19BSPTType: External | Hand: Right | Threads per inch (TPI): 19 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.86 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER11-14BSPTType: External | Hand: Right | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.16 | PDY (mm): 0.9 | PDX (mm): PDY | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER16-28BSPTType: External | Hand: Right | Threads per inch (TPI): 28 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.58 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER16-19BSPT PC3030TType: External | Hand: Right | Threads per inch (TPI): 19 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.86 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC3030T | Stock: Yes
ER16-14BSPT PC9070TType: External | Hand: Right | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.16 | PDY (mm): 1.0 | PDX (mm): 1.2 | Grade: PC9070T | Stock: Yes
ER16-11BSPT PC3030TType: External | Hand: Right | Threads per inch (TPI): 11 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.48 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC3030T | Stock: Yes
ER16-11BSPT PC9070TType: External | Hand: Right | Threads per inch (TPI): 11 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.48 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC9070T | Stock: Yes
EL11-28BSPTType: External | Hand: Left | Threads per inch (TPI): 28 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.58 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-19BSPTType: External | Hand: Left | Threads per inch (TPI): 19 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.86 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-14BSPTType: External | Hand: Left | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.16 | PDY (mm): 0.9 | PDX (mm): PDY | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-28BSPTType: External | Hand: Left | Threads per inch (TPI): 28 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.58 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-19BSPTType: External | Hand: Left | Threads per inch (TPI): 19 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.86 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-14BSPTType: External | Hand: Left | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.16 | PDY (mm): 1.0 | PDX (mm): 1.2 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-11BSPTType: External | Hand: Left | Threads per inch (TPI): 11 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.48 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
