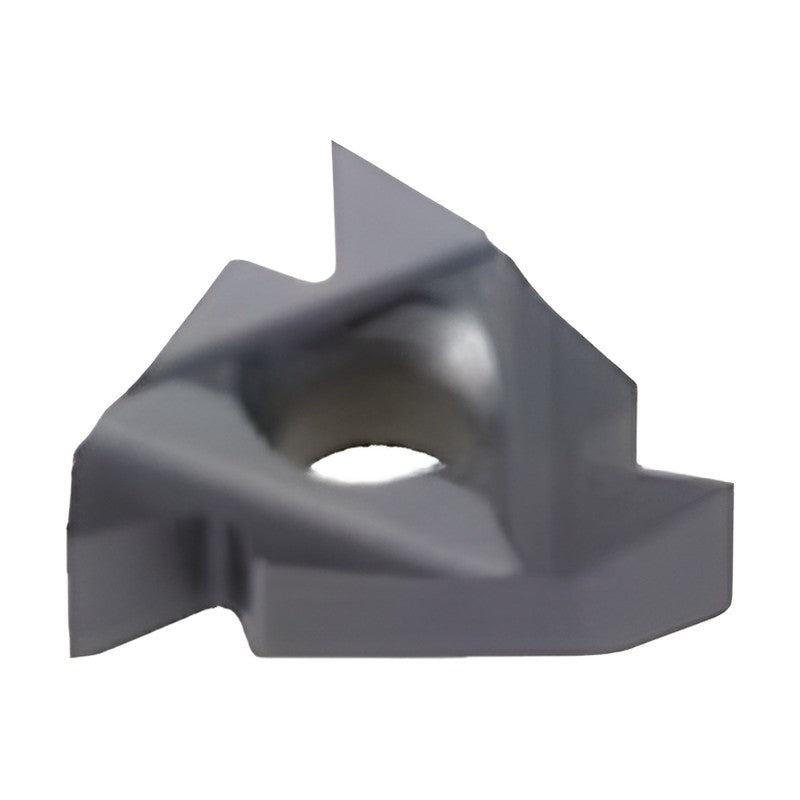

Korloy Threading Insert British Standard Pipe Thread (BSPT) Internal

Korloy Threading Insert British Standard Pipe Thread (BSPT) Internal

Full profile threading inserts for British Standard Pipe Thread (BSPT) threads, internal machining.

Key features

  • Laid-down 3-edge threading insert for internal threading
  • Precision-ground profile for high-quality thread surface finish
  • Right- and left-hand versions
  • Grades: PC5030T (universal PVD), PC3030T, PC9070T, PC5300
  • Applicable holders: IR(L)H / IR(L)H-C

Specifications

Thread standard British Standard Pipe Thread (BSPT)
Profile Full profile
Thread type Internal
Insert type Laid-down threading insert
Type Internal
IR11-28BSPT Type: Internal | Hand: Right | Threads per inch (TPI): 28 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.58 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IR11-19BSPT PC9070T Type: Internal | Hand: Right | Threads per inch (TPI): 19 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.86 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC9070T | Stock: Yes
IR11-14BSPT PC9070T Type: Internal | Hand: Right | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.16 | PDY (mm): 0.9 | PDX (mm): 1.0 | Grade: PC9070T | Stock: Yes
IR16-28BSPT Type: Internal | Hand: Right | Threads per inch (TPI): 28 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.58 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IR16-19BSPT PC3030T Type: Internal | Hand: Right | Threads per inch (TPI): 19 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.86 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC3030T | Stock: Yes
IR16-14BSPT PC3030T Type: Internal | Hand: Right | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.16 | PDY (mm): 1.0 | PDX (mm): 1.2 | Grade: PC3030T | Stock: Yes
IR16-11BSPT PC3030T Type: Internal | Hand: Right | Threads per inch (TPI): 11 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.48 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC3030T | Stock: Yes
IL11-28BSPT Type: Internal | Hand: Left | Threads per inch (TPI): 28 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.58 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL11-19BSPT Type: Internal | Hand: Left | Threads per inch (TPI): 19 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.86 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL11-14BSPT Type: Internal | Hand: Left | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.16 | PDY (mm): 0.9 | PDX (mm): 1.0 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL16-28BSPT Type: Internal | Hand: Left | Threads per inch (TPI): 28 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.58 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL16-19BSPT Type: Internal | Hand: Left | Threads per inch (TPI): 19 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.86 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL16-14BSPT Type: Internal | Hand: Left | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.16 | PDY (mm): 1.0 | PDX (mm): 1.2 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL16-11BSPT Type: Internal | Hand: Left | Threads per inch (TPI): 11 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.48 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
Threading InsertsKorloy
14 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Threading Insert British Standard Pipe Thread (BSPT) Internal

Brand Korloy·Threading Inserts

Available part numbers (14)

IR11-28BSPT, IR11-19BSPT PC9070T, IR11-14BSPT PC9070T, IR16-28BSPT, IR16-19BSPT PC3030T, IR16-14BSPT PC3030T, IR16-11BSPT PC3030T, IL11-28BSPT, IL11-19BSPT, IL11-14BSPT + 4 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IR11-28BSPTType: Internal | Hand: Right | Threads per inch (TPI): 28 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.58 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IR11-19BSPT PC9070TType: Internal | Hand: Right | Threads per inch (TPI): 19 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.86 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC9070T | Stock: Yes
IR11-14BSPT PC9070TType: Internal | Hand: Right | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.16 | PDY (mm): 0.9 | PDX (mm): 1.0 | Grade: PC9070T | Stock: Yes
IR16-28BSPTType: Internal | Hand: Right | Threads per inch (TPI): 28 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.58 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IR16-19BSPT PC3030TType: Internal | Hand: Right | Threads per inch (TPI): 19 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.86 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC3030T | Stock: Yes
IR16-14BSPT PC3030TType: Internal | Hand: Right | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.16 | PDY (mm): 1.0 | PDX (mm): 1.2 | Grade: PC3030T | Stock: Yes
IR16-11BSPT PC3030TType: Internal | Hand: Right | Threads per inch (TPI): 11 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.48 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC3030T | Stock: Yes
IL11-28BSPTType: Internal | Hand: Left | Threads per inch (TPI): 28 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.58 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL11-19BSPTType: Internal | Hand: Left | Threads per inch (TPI): 19 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.86 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL11-14BSPTType: Internal | Hand: Left | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.16 | PDY (mm): 0.9 | PDX (mm): 1.0 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL16-28BSPTType: Internal | Hand: Left | Threads per inch (TPI): 28 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.58 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL16-19BSPTType: Internal | Hand: Left | Threads per inch (TPI): 19 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.86 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL16-14BSPTType: Internal | Hand: Left | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.16 | PDY (mm): 1.0 | PDX (mm): 1.2 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL16-11BSPTType: Internal | Hand: Left | Threads per inch (TPI): 11 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.48 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
