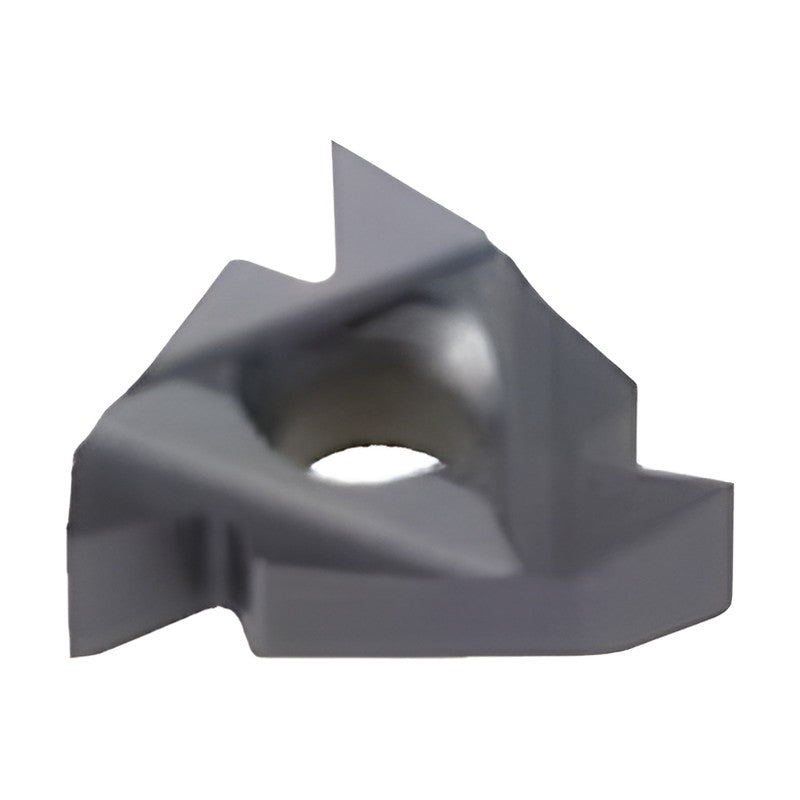

Korloy Threading Insert Extreme line casing (EL) Internal

Korloy Threading Insert Extreme line casing (EL) Internal

Full profile threading inserts for Extreme line casing (EL) threads, internal machining.

Key features

  • Laid-down 3-edge threading insert for internal threading
  • Precision-ground profile for high-quality thread surface finish
  • Right- and left-hand versions
  • Grades: PC5030T (universal PVD), PC3030T, PC9070T, PC5300
  • Applicable holders: IR(L)H / IR(L)H-C

Specifications

Thread standard Extreme line casing (EL)
Profile Full profile
Thread type Internal
Insert type Laid-down threading insert
Type Internal
Inscribed circle IC (mm) 12.7
Insert size L (mm) 22
Grades PC5030T / PC3030T / PC9070T / PC5300
Stock Not marked as stock item
IR22-6EL15 Type: Internal | Hand: Right | Threads per inch (TPI): 6 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 1.39 | PDY (mm): 1.8 | PDX (mm): 1.9 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IR22-5EL125 Type: Internal | Hand: Right | Threads per inch (TPI): 5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 1.91 | PDY (mm): 2.2 | PDX (mm): 2.4 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL22-6EL15 Type: Internal | Hand: Left | Threads per inch (TPI): 6 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 1.39 | PDY (mm): 1.8 | PDX (mm): 1.9 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL22-5EL125 Type: Internal | Hand: Left | Threads per inch (TPI): 5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 1.91 | PDY (mm): 2.2 | PDX (mm): 2.4 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
Threading InsertsKorloy
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Threading Insert Extreme line casing (EL) Internal

Brand Korloy·Threading Inserts

Available part numbers (4)

IR22-6EL15, IR22-5EL125, IL22-6EL15, IL22-5EL125

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IR22-6EL15Type: Internal | Hand: Right | Threads per inch (TPI): 6 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 1.39 | PDY (mm): 1.8 | PDX (mm): 1.9 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IR22-5EL125Type: Internal | Hand: Right | Threads per inch (TPI): 5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 1.91 | PDY (mm): 2.2 | PDX (mm): 2.4 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL22-6EL15Type: Internal | Hand: Left | Threads per inch (TPI): 6 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 1.39 | PDY (mm): 1.8 | PDX (mm): 1.9 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL22-5EL125Type: Internal | Hand: Left | Threads per inch (TPI): 5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 1.91 | PDY (mm): 2.2 | PDX (mm): 2.4 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
