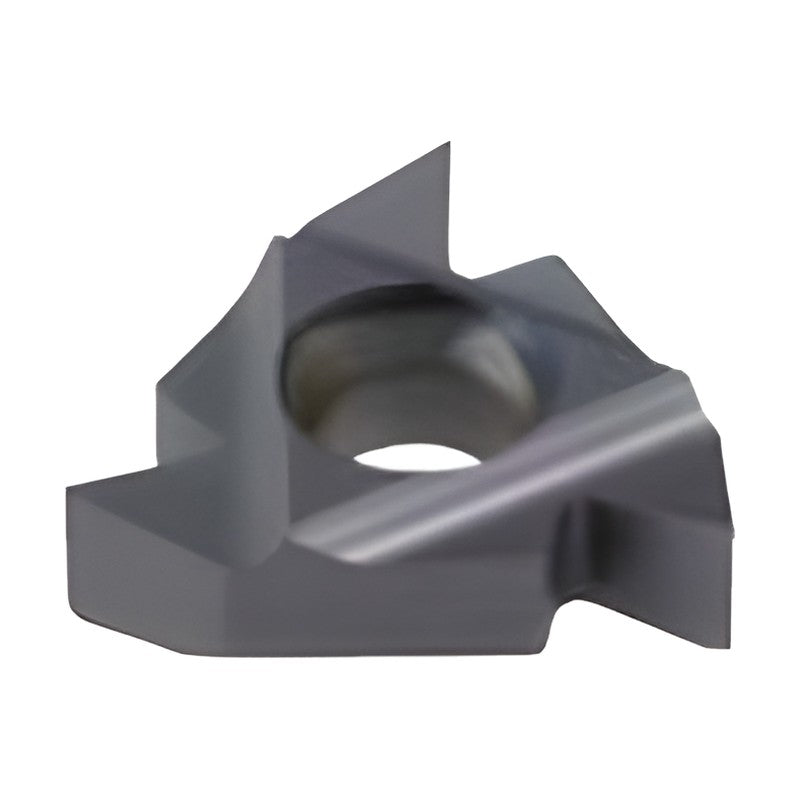

Korloy Threading Insert ISO Metric External

Korloy Threading Insert ISO Metric External

Full profile threading inserts for ISO metric threads, external machining.

Key features

  • Laid-down 3-edge threading insert for external threading
  • Precision-ground profile for high-quality thread surface finish
  • Right- and left-hand versions
  • Grades: PC5030T (universal PVD), PC3030T, PC9070T, PC5300
  • Applicable holders: ER(L)H / ER(L)H-C

Specifications

Thread standard ISO metric
Profile Full profile
Thread type External
Insert type Laid-down threading insert
Type External
ER11-0.35ISO PC5030T Type: External | Hand: Right | Pitch (mm): 0.35 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.21 | PDY (mm): 0.8 | PDX (mm): 0.4 | Grade: PC5030T | Stock: Yes
ER11-0.4ISO PC5030T Type: External | Hand: Right | Pitch (mm): 0.4 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.25 | PDY (mm): 0.7 | PDX (mm): 0.4 | Grade: PC5030T | Stock: Yes
ER11-0.45ISO PC5030T Type: External | Hand: Right | Pitch (mm): 0.45 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.28 | PDY (mm): 0.7 | PDX (mm): 0.4 | Grade: PC5030T | Stock: Yes
ER11-0.45ISO PC3030T Type: External | Hand: Right | Pitch (mm): 0.45 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.28 | PDY (mm): 0.7 | PDX (mm): 0.4 | Grade: PC3030T | Stock: Yes
ER11-0.5ISO PC5030T Type: External | Hand: Right | Pitch (mm): 0.5 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.31 | PDY (mm): 0.6 | PDX (mm): 0.4 | Grade: PC5030T | Stock: Yes
ER11-0.6ISO PC5030T Type: External | Hand: Right | Pitch (mm): 0.6 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.37 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
ER11-0.7ISO PC5030T Type: External | Hand: Right | Pitch (mm): 0.7 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.43 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
ER11-0.7ISO PC3030T Type: External | Hand: Right | Pitch (mm): 0.7 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.43 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC3030T | Stock: Yes
ER11-0.75ISO PC5030T Type: External | Hand: Right | Pitch (mm): 0.75 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.46 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
ER11-0.75ISO PC3030T Type: External | Hand: Right | Pitch (mm): 0.75 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.46 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC3030T | Stock: Yes
ER11-0.8ISO PC5030T Type: External | Hand: Right | Pitch (mm): 0.8 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.49 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
ER11-0.8ISO PC3030T Type: External | Hand: Right | Pitch (mm): 0.8 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.49 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC3030T | Stock: Yes
ER11-1.0ISO PC5030T Type: External | Hand: Right | Pitch (mm): 1.0 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.61 | PDY (mm): 0.7 | PDX (mm): 0.7 | Grade: PC5030T | Stock: Yes
ER11-1.0ISO PC3030T Type: External | Hand: Right | Pitch (mm): 1.0 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.61 | PDY (mm): 0.7 | PDX (mm): 0.7 | Grade: PC3030T | Stock: Yes
ER11-1.25ISO PC5030T Type: External | Hand: Right | Pitch (mm): 1.25 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.77 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC5030T | Stock: Yes
ER11-1.25ISO PC3030T Type: External | Hand: Right | Pitch (mm): 1.25 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.77 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC3030T | Stock: Yes
ER11-1.25ISO PC9070T Type: External | Hand: Right | Pitch (mm): 1.25 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.77 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC9070T | Stock: Yes
ER11-1.5ISO PC5030T Type: External | Hand: Right | Pitch (mm): 1.5 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.92 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grade: PC5030T | Stock: Yes
ER11-1.5ISO PC3030T Type: External | Hand: Right | Pitch (mm): 1.5 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.92 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grade: PC3030T | Stock: Yes
ER11-1.75ISO PC5030T Type: External | Hand: Right | Pitch (mm): 1.75 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.07 | PDY (mm): 0.8 | PDX (mm): 1.1 | Grade: PC5030T | Stock: Yes
ER11-1.75ISO PC3030T Type: External | Hand: Right | Pitch (mm): 1.75 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.07 | PDY (mm): 0.8 | PDX (mm): 1.1 | Grade: PC3030T | Stock: Yes
ER16-0.35ISO PC5030T Type: External | Hand: Right | Pitch (mm): 0.35 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.21 | PDY (mm): 0.8 | PDX (mm): 0.4 | Grade: PC5030T | Stock: Yes
ER16-0.4ISO PC5030T Type: External | Hand: Right | Pitch (mm): 0.4 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.25 | PDY (mm): 0.7 | PDX (mm): PDY | Grade: PC5030T | Stock: Yes
ER16-0.4ISO PC3030T Type: External | Hand: Right | Pitch (mm): 0.4 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.25 | PDY (mm): 0.7 | PDX (mm): PDY | Grade: PC3030T | Stock: Yes
ER16-0.45ISO PC5030T Type: External | Hand: Right | Pitch (mm): 0.45 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.28 | PDY (mm): 0.7 | PDX (mm): 0.4 | Grade: PC5030T | Stock: Yes
ER16-0.45ISO PC3030T Type: External | Hand: Right | Pitch (mm): 0.45 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.28 | PDY (mm): 0.7 | PDX (mm): 0.4 | Grade: PC3030T | Stock: Yes
ER16-0.5ISO PC5030T Type: External | Hand: Right | Pitch (mm): 0.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.31 | PDY (mm): 0.6 | PDX (mm): L | Grade: PC5030T | Stock: Yes
ER16-0.5ISO PC3030T Type: External | Hand: Right | Pitch (mm): 0.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.31 | PDY (mm): 0.6 | PDX (mm): L | Grade: PC3030T | Stock: Yes
ER16-0.6ISO PC5030T Type: External | Hand: Right | Pitch (mm): 0.6 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.37 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
ER16-0.6ISO PC3030T Type: External | Hand: Right | Pitch (mm): 0.6 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.37 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC3030T | Stock: Yes
ER16-0.7ISO PC5030T Type: External | Hand: Right | Pitch (mm): 0.7 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.43 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
ER16-0.7ISO PC3030T Type: External | Hand: Right | Pitch (mm): 0.7 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.43 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC3030T | Stock: Yes
ER16-0.75ISO PC5030T Type: External | Hand: Right | Pitch (mm): 0.75 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.46 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
ER16-0.75ISO PC3030T Type: External | Hand: Right | Pitch (mm): 0.75 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.46 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC3030T | Stock: Yes
ER16-0.8ISO PC5030T Type: External | Hand: Right | Pitch (mm): 0.8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.49 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
ER16-0.8ISO PC3030T Type: External | Hand: Right | Pitch (mm): 0.8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.49 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC3030T | Stock: Yes
ER16-0.8ISO PC9070T Type: External | Hand: Right | Pitch (mm): 0.8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.49 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC9070T | Stock: Yes
ER16-1.0ISO PC5030T Type: External | Hand: Right | Pitch (mm): 1.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.61 | PDY (mm): 0.7 | PDX (mm): 0.7 | Grade: PC5030T | Stock: Yes
ER16-1.0ISO PC3030T Type: External | Hand: Right | Pitch (mm): 1.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.61 | PDY (mm): 0.7 | PDX (mm): 0.7 | Grade: PC3030T | Stock: Yes
ER16-1.0ISO PC9070T Type: External | Hand: Right | Pitch (mm): 1.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.61 | PDY (mm): 0.7 | PDX (mm): 0.7 | Grade: PC9070T | Stock: Yes
ER16-1.25ISO PC5030T Type: External | Hand: Right | Pitch (mm): 1.25 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.77 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC5030T | Stock: Yes
ER16-1.25ISO PC3030T Type: External | Hand: Right | Pitch (mm): 1.25 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.77 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC3030T | Stock: Yes
ER16-1.25ISO PC9070T Type: External | Hand: Right | Pitch (mm): 1.25 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.77 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC9070T | Stock: Yes
ER16-1.5ISO PC5030T Type: External | Hand: Right | Pitch (mm): 1.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.92 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grade: PC5030T | Stock: Yes
ER16-1.5ISO PC3030T Type: External | Hand: Right | Pitch (mm): 1.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.92 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grade: PC3030T | Stock: Yes
ER16-1.5ISO PC9070T Type: External | Hand: Right | Pitch (mm): 1.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.92 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grade: PC9070T | Stock: Yes
ER16-1.75ISO PC5030T Type: External | Hand: Right | Pitch (mm): 1.75 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.07 | PDY (mm): 0.9 | PDX (mm): 1.2 | Grade: PC5030T | Stock: Yes
ER16-1.75ISO PC3030T Type: External | Hand: Right | Pitch (mm): 1.75 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.07 | PDY (mm): 0.9 | PDX (mm): 1.2 | Grade: PC3030T | Stock: Yes
ER16-1.75ISO PC9070T Type: External | Hand: Right | Pitch (mm): 1.75 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.07 | PDY (mm): 0.9 | PDX (mm): 1.2 | Grade: PC9070T | Stock: Yes
ER16-2.0ISO PC5030T Type: External | Hand: Right | Pitch (mm): 2.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.23 | PDY (mm): 1.0 | PDX (mm): 1.3 | Grade: PC5030T | Stock: Yes
ER16-2.0ISO PC3030T Type: External | Hand: Right | Pitch (mm): 2.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.23 | PDY (mm): 1.0 | PDX (mm): 1.3 | Grade: PC3030T | Stock: Yes
ER16-2.0ISO PC9070T Type: External | Hand: Right | Pitch (mm): 2.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.23 | PDY (mm): 1.0 | PDX (mm): 1.3 | Grade: PC9070T | Stock: Yes
ER16-2.5ISO PC5030T Type: External | Hand: Right | Pitch (mm): 2.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.53 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC5030T | Stock: Yes
ER16-2.5ISO PC3030T Type: External | Hand: Right | Pitch (mm): 2.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.53 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC3030T | Stock: Yes
ER16-2.5ISO PC9070T Type: External | Hand: Right | Pitch (mm): 2.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.53 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC9070T | Stock: Yes
ER16-3.0ISO PC5030T Type: External | Hand: Right | Pitch (mm): 3.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.84 | PDY (mm): 1.2 | PDX (mm): 1.6 | Grade: PC5030T | Stock: Yes
ER16-3.0ISO PC3030T Type: External | Hand: Right | Pitch (mm): 3.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.84 | PDY (mm): 1.2 | PDX (mm): 1.6 | Grade: PC3030T | Stock: Yes
ER16-3.0ISO PC9070T Type: External | Hand: Right | Pitch (mm): 3.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.84 | PDY (mm): 1.2 | PDX (mm): 1.6 | Grade: PC9070T | Stock: Yes
ER22-3.5ISO PC5030T Type: External | Hand: Right | Pitch (mm): 3.5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.15 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC5030T | Stock: Yes
ER22-3.5ISO PC3030T Type: External | Hand: Right | Pitch (mm): 3.5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.15 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC3030T | Stock: Yes
ER22-3.5ISO PC9070T Type: External | Hand: Right | Pitch (mm): 3.5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.15 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC9070T | Stock: Yes
ER22-4.0ISO PC5030T Type: External | Hand: Right | Pitch (mm): 4.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.45 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC5030T | Stock: Yes
ER22-4.0ISO PC3030T Type: External | Hand: Right | Pitch (mm): 4.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.45 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC3030T | Stock: Yes
ER22-4.0ISO PC9070T Type: External | Hand: Right | Pitch (mm): 4.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.45 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC9070T | Stock: Yes
ER22-4.5ISO PC5030T Type: External | Hand: Right | Pitch (mm): 4.5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.78 | PDY (mm): 1.7 | PDX (mm): 2.4 | Grade: PC5030T | Stock: Yes
ER22-4.5ISO PC3030T Type: External | Hand: Right | Pitch (mm): 4.5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.78 | PDY (mm): 1.7 | PDX (mm): 2.4 | Grade: PC3030T | Stock: Yes
ER22-4.5ISO PC9070T Type: External | Hand: Right | Pitch (mm): 4.5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.78 | PDY (mm): 1.7 | PDX (mm): 2.4 | Grade: PC9070T | Stock: Yes
ER22-5.0ISO PC5030T Type: External | Hand: Right | Pitch (mm): 5.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 3.07 | PDY (mm): 1.7 | PDX (mm): 2.5 | Grade: PC5030T | Stock: Yes
ER22-5.0ISO PC3030T Type: External | Hand: Right | Pitch (mm): 5.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 3.07 | PDY (mm): 1.7 | PDX (mm): 2.5 | Grade: PC3030T | Stock: Yes
ER22-5.0ISO PC9070T Type: External | Hand: Right | Pitch (mm): 5.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 3.07 | PDY (mm): 1.7 | PDX (mm): 2.5 | Grade: PC9070T | Stock: Yes
ER27-5.5ISO PC5030T Type: External | Hand: Right | Pitch (mm): 5.5 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.37 | PDY (mm): 1.9 | PDX (mm): 2.7 | Grade: PC5030T | Stock: Yes
ER27-5.5ISO PC3030T Type: External | Hand: Right | Pitch (mm): 5.5 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.37 | PDY (mm): 1.9 | PDX (mm): 2.7 | Grade: PC3030T | Stock: Yes
ER27-6.0ISO PC5030T Type: External | Hand: Right | Pitch (mm): 6.0 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.68 | PDY (mm): 2.0 | PDX (mm): 2.9 | Grade: PC5030T | Stock: Yes
ER27-6.0ISO PC3030T Type: External | Hand: Right | Pitch (mm): 6.0 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.68 | PDY (mm): 2.0 | PDX (mm): 2.9 | Grade: PC3030T | Stock: Yes
ER27-6.0ISO PC9070T Type: External | Hand: Right | Pitch (mm): 6.0 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.68 | PDY (mm): 2.0 | PDX (mm): 2.9 | Grade: PC9070T | Stock: Yes
EL11-0.35ISO Type: External | Hand: Left | Pitch (mm): 0.35 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.21 | PDY (mm): 0.8 | PDX (mm): 0.4 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-0.4ISO Type: External | Hand: Left | Pitch (mm): 0.4 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.25 | PDY (mm): 0.7 | PDX (mm): 0.4 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-0.45ISO PC5030T Type: External | Hand: Left | Pitch (mm): 0.45 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.28 | PDY (mm): 0.7 | PDX (mm): 0.4 | Grade: PC5030T | Stock: Yes
EL11-0.5ISO PC5030T Type: External | Hand: Left | Pitch (mm): 0.5 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.31 | PDY (mm): 0.6 | PDX (mm): 0.4 | Grade: PC5030T | Stock: Yes
EL11-0.6ISO Type: External | Hand: Left | Pitch (mm): 0.6 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.37 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-0.7ISO Type: External | Hand: Left | Pitch (mm): 0.7 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.43 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-0.75ISO PC5030T Type: External | Hand: Left | Pitch (mm): 0.75 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.46 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
EL11-0.8ISO Type: External | Hand: Left | Pitch (mm): 0.8 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.49 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-1.0ISO PC5030T Type: External | Hand: Left | Pitch (mm): 1.0 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.61 | PDY (mm): 0.7 | PDX (mm): 0.7 | Grade: PC5030T | Stock: Yes
EL11-1.25ISO PC5030T Type: External | Hand: Left | Pitch (mm): 1.25 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.77 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC5030T | Stock: Yes
EL11-1.25ISO PC3030T Type: External | Hand: Left | Pitch (mm): 1.25 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.77 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC3030T | Stock: Yes
EL11-1.5ISO PC5030T Type: External | Hand: Left | Pitch (mm): 1.5 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.92 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grade: PC5030T | Stock: Yes
EL11-1.5ISO PC3030T Type: External | Hand: Left | Pitch (mm): 1.5 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.92 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grade: PC3030T | Stock: Yes
EL11-1.75ISO Type: External | Hand: Left | Pitch (mm): 1.75 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.07 | PDY (mm): 0.8 | PDX (mm): 1.1 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-0.35ISO Type: External | Hand: Left | Pitch (mm): 0.35 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.21 | PDY (mm): 0.8 | PDX (mm): 0.4 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-0.4ISO PC5030T Type: External | Hand: Left | Pitch (mm): 0.4 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.25 | PDY (mm): 0.7 | PDX (mm): PDY | Grade: PC5030T | Stock: Yes
EL16-0.45ISO Type: External | Hand: Left | Pitch (mm): 0.45 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.28 | PDY (mm): 0.7 | PDX (mm): 0.4 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-0.5ISO PC5030T Type: External | Hand: Left | Pitch (mm): 0.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.31 | PDY (mm): 0.6 | PDX (mm): L | Grade: PC5030T | Stock: Yes
EL16-0.5ISO PC3030T Type: External | Hand: Left | Pitch (mm): 0.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.31 | PDY (mm): 0.6 | PDX (mm): L | Grade: PC3030T | Stock: Yes
EL16-0.6ISO Type: External | Hand: Left | Pitch (mm): 0.6 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.37 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-0.7ISO PC5030T Type: External | Hand: Left | Pitch (mm): 0.7 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.43 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
EL16-0.75ISO PC5030T Type: External | Hand: Left | Pitch (mm): 0.75 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.46 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
EL16-0.75ISO PC3030T Type: External | Hand: Left | Pitch (mm): 0.75 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.46 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC3030T | Stock: Yes
EL16-0.8ISO PC5030T Type: External | Hand: Left | Pitch (mm): 0.8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.49 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
EL16-1.0ISO PC5030T Type: External | Hand: Left | Pitch (mm): 1.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.61 | PDY (mm): 0.7 | PDX (mm): 0.7 | Grade: PC5030T | Stock: Yes
EL16-1.0ISO PC3030T Type: External | Hand: Left | Pitch (mm): 1.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.61 | PDY (mm): 0.7 | PDX (mm): 0.7 | Grade: PC3030T | Stock: Yes
EL16-1.25ISO PC5030T Type: External | Hand: Left | Pitch (mm): 1.25 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.77 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC5030T | Stock: Yes
EL16-1.25ISO PC3030T Type: External | Hand: Left | Pitch (mm): 1.25 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.77 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC3030T | Stock: Yes
EL16-1.5ISO PC5030T Type: External | Hand: Left | Pitch (mm): 1.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.92 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grade: PC5030T | Stock: Yes
EL16-1.5ISO PC3030T Type: External | Hand: Left | Pitch (mm): 1.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.92 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grade: PC3030T | Stock: Yes
EL16-1.75ISO PC5030T Type: External | Hand: Left | Pitch (mm): 1.75 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.07 | PDY (mm): 0.9 | PDX (mm): 1.2 | Grade: PC5030T | Stock: Yes
EL16-2.0ISO PC5030T Type: External | Hand: Left | Pitch (mm): 2.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.23 | PDY (mm): 1.0 | PDX (mm): 1.3 | Grade: PC5030T | Stock: Yes
EL16-2.0ISO PC3030T Type: External | Hand: Left | Pitch (mm): 2.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.23 | PDY (mm): 1.0 | PDX (mm): 1.3 | Grade: PC3030T | Stock: Yes
EL16-2.5ISO PC5030T Type: External | Hand: Left | Pitch (mm): 2.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.53 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC5030T | Stock: Yes
EL16-2.5ISO PC3030T Type: External | Hand: Left | Pitch (mm): 2.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.53 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC3030T | Stock: Yes
EL16-3.0ISO PC5030T Type: External | Hand: Left | Pitch (mm): 3.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.84 | PDY (mm): 1.2 | PDX (mm): 1.6 | Grade: PC5030T | Stock: Yes
EL16-3.0ISO PC3030T Type: External | Hand: Left | Pitch (mm): 3.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.84 | PDY (mm): 1.2 | PDX (mm): 1.6 | Grade: PC3030T | Stock: Yes
EL22-3.5ISO PC5030T Type: External | Hand: Left | Pitch (mm): 3.5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.15 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC5030T | Stock: Yes
EL22-3.5ISO PC3030T Type: External | Hand: Left | Pitch (mm): 3.5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.15 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC3030T | Stock: Yes
EL22-4.0ISO PC5030T Type: External | Hand: Left | Pitch (mm): 4.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.45 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC5030T | Stock: Yes
EL22-4.0ISO PC3030T Type: External | Hand: Left | Pitch (mm): 4.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.45 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC3030T | Stock: Yes
EL22-4.5ISO PC5030T Type: External | Hand: Left | Pitch (mm): 4.5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.78 | PDY (mm): 1.7 | PDX (mm): 2.4 | Grade: PC5030T | Stock: Yes
EL22-4.5ISO PC3030T Type: External | Hand: Left | Pitch (mm): 4.5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.78 | PDY (mm): 1.7 | PDX (mm): 2.4 | Grade: PC3030T | Stock: Yes
EL22-5.0ISO PC5030T Type: External | Hand: Left | Pitch (mm): 5.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 3.07 | PDY (mm): 1.7 | PDX (mm): 2.5 | Grade: PC5030T | Stock: Yes
EL22-5.0ISO PC3030T Type: External | Hand: Left | Pitch (mm): 5.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 3.07 | PDY (mm): 1.7 | PDX (mm): 2.5 | Grade: PC3030T | Stock: Yes
EL27-5.5ISO PC3030T Type: External | Hand: Left | Pitch (mm): 5.5 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.37 | PDY (mm): 1.9 | PDX (mm): 2.7 | Grade: PC3030T | Stock: Yes
EL27-6.0ISO PC5030T Type: External | Hand: Left | Pitch (mm): 6.0 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.68 | PDY (mm): 2.0 | PDX (mm): 2.9 | Grade: PC5030T | Stock: Yes
EL27-6.0ISO PC3030T Type: External | Hand: Left | Pitch (mm): 6.0 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.68 | PDY (mm): 2.0 | PDX (mm): 2.9 | Grade: PC3030T | Stock: Yes
