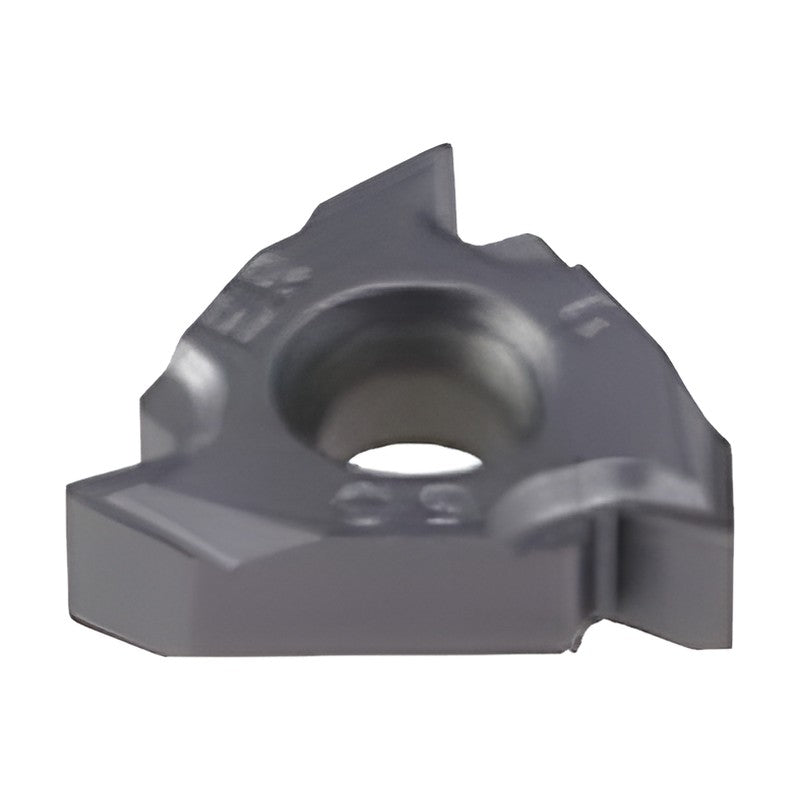

Korloy Threading Insert ISO Metric External M Chip Breaker

Korloy Threading Insert ISO Metric External M Chip Breaker

Full profile threading inserts for ISO metric threads, external machining, with M chip breaker.

Key features

  • Laid-down 3-edge threading insert for external threading
  • M chip breaker for improved chip control
  • Precision-ground profile for high-quality thread surface finish
  • Right- and left-hand versions
  • Grades: PC5030T (universal PVD), PC3030T, PC9070T, PC5300
  • Applicable holders: ER(L)H / ER(L)H-C

Specifications

Thread standard ISO metric
Profile Full profile
Thread type External
Insert type Laid-down threading insert
Chip breaker M
Type External
Hand Right
Inscribed circle IC (mm) 9.525
Insert size L (mm) 16
ERM16-1.0ISO PC3030T Type: External | Hand: Right | Pitch (mm): 1.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.61 | PDY (mm): 0.7 | PDX (mm): 0.7 | Grade: PC3030T | Stock: Yes
ERM16-1.25ISO Type: External | Hand: Right | Pitch (mm): 1.25 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.77 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ERM16-1.5ISO PC3030T Type: External | Hand: Right | Pitch (mm): 1.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.93 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grade: PC3030T | Stock: Yes
ERM16-1.75ISO PC3030T Type: External | Hand: Right | Pitch (mm): 1.75 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.09 | PDY (mm): 0.9 | PDX (mm): 1.2 | Grade: PC3030T | Stock: Yes
ERM16-2.0ISO PC3030T Type: External | Hand: Right | Pitch (mm): 2.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.25 | PDY (mm): 1.0 | PDX (mm): 1.3 | Grade: PC3030T | Stock: Yes
ERM16-2.5ISO PC3030T Type: External | Hand: Right | Pitch (mm): 2.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.55 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC3030T | Stock: Yes
ERM16-3.0ISO PC3030T Type: External | Hand: Right | Pitch (mm): 3.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.87 | PDY (mm): 1.2 | PDX (mm): 1.6 | Grade: PC3030T | Stock: Yes
Threading InsertsKorloy
7 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Threading Insert ISO Metric External M Chip Breaker

Brand Korloy·Threading Inserts

Available part numbers (7)

ERM16-1.0ISO PC3030T, ERM16-1.25ISO, ERM16-1.5ISO PC3030T, ERM16-1.75ISO PC3030T, ERM16-2.0ISO PC3030T, ERM16-2.5ISO PC3030T, ERM16-3.0ISO PC3030T

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ERM16-1.0ISO PC3030TType: External | Hand: Right | Pitch (mm): 1.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.61 | PDY (mm): 0.7 | PDX (mm): 0.7 | Grade: PC3030T | Stock: Yes
ERM16-1.25ISOType: External | Hand: Right | Pitch (mm): 1.25 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.77 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ERM16-1.5ISO PC3030TType: External | Hand: Right | Pitch (mm): 1.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.93 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grade: PC3030T | Stock: Yes
ERM16-1.75ISO PC3030TType: External | Hand: Right | Pitch (mm): 1.75 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.09 | PDY (mm): 0.9 | PDX (mm): 1.2 | Grade: PC3030T | Stock: Yes
ERM16-2.0ISO PC3030TType: External | Hand: Right | Pitch (mm): 2.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.25 | PDY (mm): 1.0 | PDX (mm): 1.3 | Grade: PC3030T | Stock: Yes
ERM16-2.5ISO PC3030TType: External | Hand: Right | Pitch (mm): 2.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.55 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC3030T | Stock: Yes
ERM16-3.0ISO PC3030TType: External | Hand: Right | Pitch (mm): 3.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.87 | PDY (mm): 1.2 | PDX (mm): 1.6 | Grade: PC3030T | Stock: Yes
