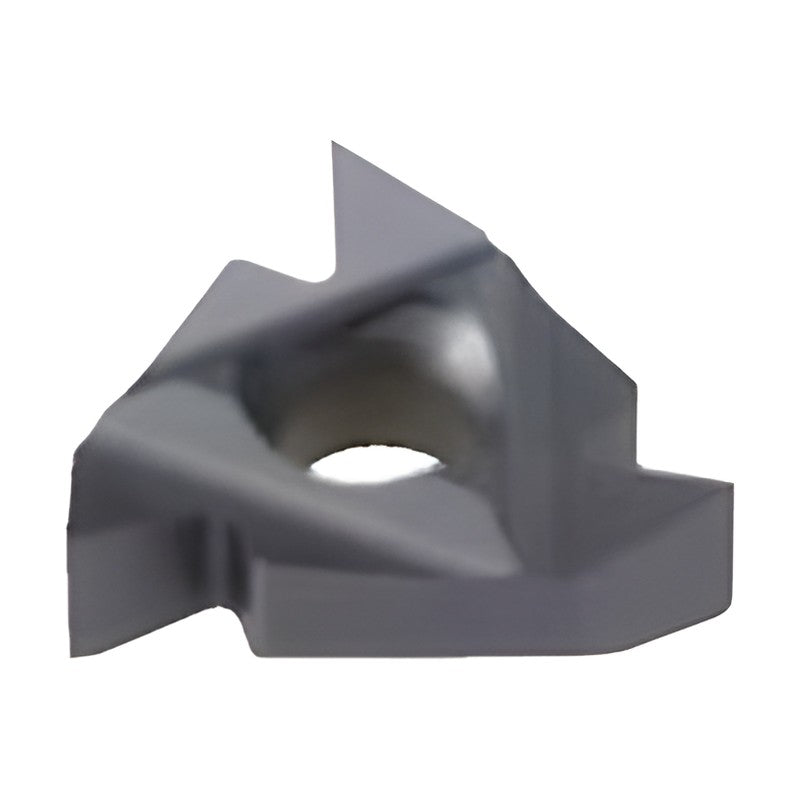

Korloy Threading Insert ISO Metric Internal

Korloy Threading Insert ISO Metric Internal

Full profile threading inserts for ISO metric threads, internal machining.

Key features

  • Laid-down 3-edge threading insert for internal threading
  • Precision-ground profile for high-quality thread surface finish
  • Right- and left-hand versions
  • Grades: PC5030T (universal PVD), PC3030T, PC9070T, PC5300
  • Applicable holders: IR(L)H / IR(L)H-C

Specifications

Thread standard ISO metric
Profile Full profile
Thread type Internal
Insert type Laid-down threading insert
Type Internal
IR11-0.35ISO PC5030T Type: Internal | Hand: Right | Pitch (mm): 0.35 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.20 | PDY (mm): 0.8 | PDX (mm): 0.3 | Grade: PC5030T | Stock: Yes
IR11-0.35ISO PC3030T Type: Internal | Hand: Right | Pitch (mm): 0.35 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.20 | PDY (mm): 0.8 | PDX (mm): 0.3 | Grade: PC3030T | Stock: Yes
IR11-0.4ISO PC5030T Type: Internal | Hand: Right | Pitch (mm): 0.4 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.23 | PDY (mm): 0.8 | PDX (mm): 0.4 | Grade: PC5030T | Stock: Yes
IR11-0.4ISO PC3030T Type: Internal | Hand: Right | Pitch (mm): 0.4 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.23 | PDY (mm): 0.8 | PDX (mm): 0.4 | Grade: PC3030T | Stock: Yes
IR11-0.45ISO PC5030T Type: Internal | Hand: Right | Pitch (mm): 0.45 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.26 | PDY (mm): 0.8 | PDX (mm): 0.4 | Grade: PC5030T | Stock: Yes
IR11-0.45ISO PC3030T Type: Internal | Hand: Right | Pitch (mm): 0.45 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.26 | PDY (mm): 0.8 | PDX (mm): 0.4 | Grade: PC3030T | Stock: Yes
IR11-0.5ISO PC5030T Type: Internal | Hand: Right | Pitch (mm): 0.5 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.29 | PDY (mm): 0.6 | PDX (mm): 0.4 | Grade: PC5030T | Stock: Yes
IR11-0.5ISO PC3030T Type: Internal | Hand: Right | Pitch (mm): 0.5 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.29 | PDY (mm): 0.6 | PDX (mm): 0.4 | Grade: PC3030T | Stock: Yes
IR11-0.6ISO PC5030T Type: Internal | Hand: Right | Pitch (mm): 0.6 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.35 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
IR11-0.6ISO PC3030T Type: Internal | Hand: Right | Pitch (mm): 0.6 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.35 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC3030T | Stock: Yes
IR11-0.7ISO PC5030T Type: Internal | Hand: Right | Pitch (mm): 0.7 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.40 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
IR11-0.7ISO PC3030T Type: Internal | Hand: Right | Pitch (mm): 0.7 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.40 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC3030T | Stock: Yes
IR11-0.75ISO PC5030T Type: Internal | Hand: Right | Pitch (mm): 0.75 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.43 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
IR11-0.75ISO PC3030T Type: Internal | Hand: Right | Pitch (mm): 0.75 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.43 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC3030T | Stock: Yes
IR11-0.8ISO PC5030T Type: Internal | Hand: Right | Pitch (mm): 0.8 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.46 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
IR11-0.8ISO PC3030T Type: Internal | Hand: Right | Pitch (mm): 0.8 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.46 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC3030T | Stock: Yes
IR11-1.0ISO PC5030T Type: Internal | Hand: Right | Pitch (mm): 1.0 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.58 | PDY (mm): 0.6 | PDX (mm): 0.7 | Grade: PC5030T | Stock: Yes
IR11-1.0ISO PC3030T Type: Internal | Hand: Right | Pitch (mm): 1.0 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.58 | PDY (mm): 0.6 | PDX (mm): 0.7 | Grade: PC3030T | Stock: Yes
IR11-1.25ISO PC5030T Type: Internal | Hand: Right | Pitch (mm): 1.25 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.72 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC5030T | Stock: Yes
IR11-1.25ISO PC3030T Type: Internal | Hand: Right | Pitch (mm): 1.25 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.72 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC3030T | Stock: Yes
IR11-1.25ISO PC9070T Type: Internal | Hand: Right | Pitch (mm): 1.25 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.72 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC9070T | Stock: Yes
IR11-1.5ISO PC5030T Type: Internal | Hand: Right | Pitch (mm): 1.5 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.87 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grade: PC5030T | Stock: Yes
IR11-1.5ISO PC3030T Type: Internal | Hand: Right | Pitch (mm): 1.5 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.87 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grade: PC3030T | Stock: Yes
IR11-1.5ISO PC9070T Type: Internal | Hand: Right | Pitch (mm): 1.5 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.87 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grade: PC9070T | Stock: Yes
IR11-1.75ISO PC5030T Type: Internal | Hand: Right | Pitch (mm): 1.75 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.01 | PDY (mm): 0.9 | PDX (mm): 1.1 | Grade: PC5030T | Stock: Yes
IR11-1.75ISO PC9070T Type: Internal | Hand: Right | Pitch (mm): 1.75 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.01 | PDY (mm): 0.9 | PDX (mm): 1.1 | Grade: PC9070T | Stock: Yes
IR11-2.0ISO PC5030T Type: Internal | Hand: Right | Pitch (mm): 2.0 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.15 | PDY (mm): 0.9 | PDX (mm): 1.1 | Grade: PC5030T | Stock: Yes
IR11-2.0ISO PC3030T Type: Internal | Hand: Right | Pitch (mm): 2.0 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.15 | PDY (mm): 0.9 | PDX (mm): 1.1 | Grade: PC3030T | Stock: Yes
IR11-2.0ISO PC9070T Type: Internal | Hand: Right | Pitch (mm): 2.0 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.15 | PDY (mm): 0.9 | PDX (mm): 1.1 | Grade: PC9070T | Stock: Yes
IR11-2.5ISO PC5030T Type: Internal | Hand: Right | Pitch (mm): 2.5 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.44 | PDY (mm): 0.8 | PDX (mm): 1.1 | Grade: PC5030T | Stock: Yes
IR11-2.5ISO PC3030T Type: Internal | Hand: Right | Pitch (mm): 2.5 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.44 | PDY (mm): 0.8 | PDX (mm): 1.1 | Grade: PC3030T | Stock: Yes
IR16-0.35ISO PC3030T Type: Internal | Hand: Right | Pitch (mm): 0.35 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.20 | PDY (mm): 0.8 | PDX (mm): 0.3 | Grade: PC3030T | Stock: Yes
IR16-0.4ISO PC5030T Type: Internal | Hand: Right | Pitch (mm): 0.4 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.23 | PDY (mm): 0.8 | PDX (mm): 0.4 | Grade: PC5030T | Stock: Yes
IR16-0.4ISO PC3030T Type: Internal | Hand: Right | Pitch (mm): 0.4 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.23 | PDY (mm): 0.8 | PDX (mm): 0.4 | Grade: PC3030T | Stock: Yes
IR16-0.45ISO PC3030T Type: Internal | Hand: Right | Pitch (mm): 0.45 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.26 | PDY (mm): 0.8 | PDX (mm): 0.4 | Grade: PC3030T | Stock: Yes
IR16-0.5ISO PC5030T Type: Internal | Hand: Right | Pitch (mm): 0.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.29 | PDY (mm): 0.6 | PDX (mm): 0.4 | Grade: PC5030T | Stock: Yes
IR16-0.5ISO PC3030T Type: Internal | Hand: Right | Pitch (mm): 0.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.29 | PDY (mm): 0.6 | PDX (mm): 0.4 | Grade: PC3030T | Stock: Yes
IR16-0.6ISO PC5030T Type: Internal | Hand: Right | Pitch (mm): 0.6 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.35 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
IR16-0.6ISO PC3030T Type: Internal | Hand: Right | Pitch (mm): 0.6 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.35 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC3030T | Stock: Yes
IR16-0.7ISO PC5030T Type: Internal | Hand: Right | Pitch (mm): 0.7 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.40 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
IR16-0.7ISO PC3030T Type: Internal | Hand: Right | Pitch (mm): 0.7 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.40 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC3030T | Stock: Yes
IR16-0.75ISO PC5030T Type: Internal | Hand: Right | Pitch (mm): 0.75 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.43 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
IR16-0.75ISO PC3030T Type: Internal | Hand: Right | Pitch (mm): 0.75 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.43 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC3030T | Stock: Yes
IR16-0.8ISO PC5030T Type: Internal | Hand: Right | Pitch (mm): 0.8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.46 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
IR16-0.8ISO PC3030T Type: Internal | Hand: Right | Pitch (mm): 0.8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.46 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC3030T | Stock: Yes
IR16-1.0ISO PC5030T Type: Internal | Hand: Right | Pitch (mm): 1.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.58 | PDY (mm): 0.6 | PDX (mm): 0.7 | Grade: PC5030T | Stock: Yes
IR16-1.0ISO PC3030T Type: Internal | Hand: Right | Pitch (mm): 1.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.58 | PDY (mm): 0.6 | PDX (mm): 0.7 | Grade: PC3030T | Stock: Yes
IR16-1.0ISO PC9070T Type: Internal | Hand: Right | Pitch (mm): 1.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.58 | PDY (mm): 0.6 | PDX (mm): 0.7 | Grade: PC9070T | Stock: Yes
IR16-1.25ISO PC5030T Type: Internal | Hand: Right | Pitch (mm): 1.25 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.72 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC5030T | Stock: Yes
IR16-1.25ISO PC3030T Type: Internal | Hand: Right | Pitch (mm): 1.25 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.72 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC3030T | Stock: Yes
IR16-1.25ISO PC9070T Type: Internal | Hand: Right | Pitch (mm): 1.25 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.72 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC9070T | Stock: Yes
IR16-1.5ISO PC5030T Type: Internal | Hand: Right | PDX (mm): 1.0 | Pitch (mm): 1.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.87 | PDY (mm): 0.8 | Grade: PC5030T | Stock: Yes
IR16-1.5ISO PC3030T Type: Internal | Hand: Right | PDX (mm): 1.0 | Pitch (mm): 1.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.87 | PDY (mm): 0.8 | Grade: PC3030T | Stock: Yes
IR16-1.5ISO PC9070T Type: Internal | Hand: Right | PDX (mm): 1.0 | Pitch (mm): 1.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.87 | PDY (mm): 0.8 | Grade: PC9070T | Stock: Yes
IR16-1.75ISO PC5030T Type: Internal | Hand: Right | Pitch (mm): 1.75 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.01 | PDY (mm): 0.9 | PDX (mm): 1.2 | Grade: PC5030T | Stock: Yes
IR16-1.75ISO PC3030T Type: Internal | Hand: Right | Pitch (mm): 1.75 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.01 | PDY (mm): 0.9 | PDX (mm): 1.2 | Grade: PC3030T | Stock: Yes
IR16-1.75ISO PC9070T Type: Internal | Hand: Right | Pitch (mm): 1.75 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.01 | PDY (mm): 0.9 | PDX (mm): 1.2 | Grade: PC9070T | Stock: Yes
IR16-2.0ISO PC5030T Type: Internal | Hand: Right | Pitch (mm): 2.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.15 | PDY (mm): 1.0 | PDX (mm): 1.3 | Grade: PC5030T | Stock: Yes
IR16-2.0ISO PC3030T Type: Internal | Hand: Right | Pitch (mm): 2.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.15 | PDY (mm): 1.0 | PDX (mm): 1.3 | Grade: PC3030T | Stock: Yes
IR16-2.0ISO PC9070T Type: Internal | Hand: Right | Pitch (mm): 2.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.15 | PDY (mm): 1.0 | PDX (mm): 1.3 | Grade: PC9070T | Stock: Yes
IR16-2.5ISO PC5030T Type: Internal | Hand: Right | Pitch (mm): 2.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.44 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC5030T | Stock: Yes
IR16-2.5ISO PC3030T Type: Internal | Hand: Right | Pitch (mm): 2.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.44 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC3030T | Stock: Yes
IR16-2.5ISO PC9070T Type: Internal | Hand: Right | Pitch (mm): 2.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.44 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC9070T | Stock: Yes
IR16-3.0ISO PC5030T Type: Internal | Hand: Right | Pitch (mm): 3.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.73 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC5030T | Stock: Yes
IR16-3.0ISO PC3030T Type: Internal | Hand: Right | Pitch (mm): 3.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.73 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC3030T | Stock: Yes
IR16-3.0ISO PC9070T Type: Internal | Hand: Right | Pitch (mm): 3.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.73 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC9070T | Stock: Yes
IR22-3.5ISO PC5030T Type: Internal | Hand: Right | Pitch (mm): 3.5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.02 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC5030T | Stock: Yes
IR22-3.5ISO PC3030T Type: Internal | Hand: Right | Pitch (mm): 3.5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.02 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC3030T | Stock: Yes
IR22-3.5ISO PC9070T Type: Internal | Hand: Right | Pitch (mm): 3.5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.02 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC9070T | Stock: Yes
IR22-4.0ISO PC5030T Type: Internal | Hand: Right | Pitch (mm): 4.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.31 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC5030T | Stock: Yes
IR22-4.0ISO PC3030T Type: Internal | Hand: Right | Pitch (mm): 4.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.31 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC3030T | Stock: Yes
IR22-4.0ISO PC9070T Type: Internal | Hand: Right | Pitch (mm): 4.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.31 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC9070T | Stock: Yes
IR22-4.5ISO PC5030T Type: Internal | Hand: Right | Pitch (mm): 4.5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.60 | PDY (mm): 1.6 | PDX (mm): 2.4 | Grade: PC5030T | Stock: Yes
IR22-4.5ISO PC3030T Type: Internal | Hand: Right | Pitch (mm): 4.5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.60 | PDY (mm): 1.6 | PDX (mm): 2.4 | Grade: PC3030T | Stock: Yes
IR22-4.5ISO PC9070T Type: Internal | Hand: Right | Pitch (mm): 4.5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.60 | PDY (mm): 1.6 | PDX (mm): 2.4 | Grade: PC9070T | Stock: Yes
IR22-5.0ISO PC5030T Type: Internal | Hand: Right | Pitch (mm): 5.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.89 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC5030T | Stock: Yes
IR22-5.0ISO PC3030T Type: Internal | Hand: Right | Pitch (mm): 5.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.89 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC3030T | Stock: Yes
IR22-5.0ISO PC9070T Type: Internal | Hand: Right | Pitch (mm): 5.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.89 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC9070T | Stock: Yes
IR27-5.5ISO PC5030T Type: Internal | Hand: Right | Pitch (mm): 5.5 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.17 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC5030T | Stock: Yes
IR27-5.5ISO PC3030T Type: Internal | Hand: Right | Pitch (mm): 5.5 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.17 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC3030T | Stock: Yes
IR27-6.0ISO PC5030T Type: Internal | Hand: Right | Pitch (mm): 6.0 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.46 | PDY (mm): 1.8 | PDX (mm): 2.5 | Grade: PC5030T | Stock: Yes
IR27-6.0ISO PC3030T Type: Internal | Hand: Right | Pitch (mm): 6.0 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.46 | PDY (mm): 1.8 | PDX (mm): 2.5 | Grade: PC3030T | Stock: Yes
IL11-0.35ISO Type: Internal | Hand: Left | Pitch (mm): 0.35 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.20 | PDY (mm): 0.8 | PDX (mm): 0.3 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL11-0.4ISO Type: Internal | Hand: Left | Pitch (mm): 0.4 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.23 | PDY (mm): 0.8 | PDX (mm): 0.4 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL11-0.45ISO Type: Internal | Hand: Left | Pitch (mm): 0.45 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.26 | PDY (mm): 0.8 | PDX (mm): 0.4 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL11-0.5ISO PC5030T Type: Internal | Hand: Left | Pitch (mm): 0.5 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.29 | PDY (mm): 0.6 | PDX (mm): 0.4 | Grade: PC5030T | Stock: Yes
IL11-0.5ISO PC3030T Type: Internal | Hand: Left | Pitch (mm): 0.5 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.29 | PDY (mm): 0.6 | PDX (mm): 0.4 | Grade: PC3030T | Stock: Yes
IL11-0.6ISO Type: Internal | Hand: Left | Pitch (mm): 0.6 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.35 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL11-0.7ISO Type: Internal | Hand: Left | Pitch (mm): 0.7 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.40 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL11-0.75ISO PC5030T Type: Internal | Hand: Left | Pitch (mm): 0.75 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.43 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
IL11-0.75ISO PC3030T Type: Internal | Hand: Left | Pitch (mm): 0.75 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.43 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC3030T | Stock: Yes
IL11-0.8ISO PC5030T Type: Internal | Hand: Left | Pitch (mm): 0.8 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.46 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
IL11-1.0ISO PC5030T Type: Internal | Hand: Left | Pitch (mm): 1.0 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.58 | PDY (mm): 0.6 | PDX (mm): 0.7 | Grade: PC5030T | Stock: Yes
IL11-1.25ISO PC5030T Type: Internal | Hand: Left | Pitch (mm): 1.25 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.72 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC5030T | Stock: Yes
IL11-1.25ISO PC3030T Type: Internal | Hand: Left | Pitch (mm): 1.25 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.72 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC3030T | Stock: Yes
IL11-1.5ISO PC5030T Type: Internal | Hand: Left | Pitch (mm): 1.5 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.87 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grade: PC5030T | Stock: Yes
IL11-1.5ISO PC3030T Type: Internal | Hand: Left | Pitch (mm): 1.5 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.87 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grade: PC3030T | Stock: Yes
IL11-1.5ISO PC9070T Type: Internal | Hand: Left | Pitch (mm): 1.5 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.87 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grade: PC9070T | Stock: Yes
IL11-1.75ISO PC5030T Type: Internal | Hand: Left | Pitch (mm): 1.75 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.01 | PDY (mm): 0.9 | PDX (mm): 1.1 | Grade: PC5030T | Stock: Yes
IL11-2.0ISO PC5030T Type: Internal | Hand: Left | Pitch (mm): 2.0 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.15 | PDY (mm): 0.9 | PDX (mm): 1.1 | Grade: PC5030T | Stock: Yes
IL11-2.0ISO PC3030T Type: Internal | Hand: Left | Pitch (mm): 2.0 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.15 | PDY (mm): 0.9 | PDX (mm): 1.1 | Grade: PC3030T | Stock: Yes
IL11-2.5ISO PC5030T Type: Internal | Hand: Left | Pitch (mm): 2.5 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.44 | PDY (mm): 0.8 | PDX (mm): 1.1 | Grade: PC5030T | Stock: Yes
IL11-2.5ISO PC3030T Type: Internal | Hand: Left | Pitch (mm): 2.5 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.44 | PDY (mm): 0.8 | PDX (mm): 1.1 | Grade: PC3030T | Stock: Yes
IL16-0.35ISO Type: Internal | Hand: Left | Pitch (mm): 0.35 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.20 | PDY (mm): 0.8 | PDX (mm): 0.3 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL16-0.4ISO Type: Internal | Hand: Left | Pitch (mm): 0.4 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.23 | PDY (mm): 0.8 | PDX (mm): 0.4 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL16-0.45ISO Type: Internal | Hand: Left | Pitch (mm): 0.45 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.26 | PDY (mm): 0.8 | PDX (mm): 0.4 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL16-0.5ISO Type: Internal | Hand: Left | Pitch (mm): 0.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.29 | PDY (mm): 0.6 | PDX (mm): 0.4 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL16-0.6ISO Type: Internal | Hand: Left | Pitch (mm): 0.6 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.35 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL16-0.7ISO Type: Internal | Hand: Left | Pitch (mm): 0.7 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.40 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL16-0.75ISO PC5030T Type: Internal | Hand: Left | Pitch (mm): 0.75 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.43 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
IL16-0.8ISO PC5030T Type: Internal | Hand: Left | Pitch (mm): 0.8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.46 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
IL16-1.0ISO PC5030T Type: Internal | Hand: Left | Pitch (mm): 1.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.58 | PDY (mm): 0.6 | PDX (mm): 0.7 | Grade: PC5030T | Stock: Yes
IL16-1.0ISO PC3030T Type: Internal | Hand: Left | Pitch (mm): 1.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.58 | PDY (mm): 0.6 | PDX (mm): 0.7 | Grade: PC3030T | Stock: Yes
IL16-1.25ISO PC5030T Type: Internal | Hand: Left | Pitch (mm): 1.25 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.72 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC5030T | Stock: Yes
IL16-1.5ISO PC5030T Type: Internal | Hand: Left | PDX (mm): 1.0 | Pitch (mm): 1.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.87 | PDY (mm): 0.8 | Grade: PC5030T | Stock: Yes
IL16-1.5ISO PC3030T Type: Internal | Hand: Left | PDX (mm): 1.0 | Pitch (mm): 1.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.87 | PDY (mm): 0.8 | Grade: PC3030T | Stock: Yes
IL16-1.75ISO PC5030T Type: Internal | Hand: Left | Pitch (mm): 1.75 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.01 | PDY (mm): 0.9 | PDX (mm): 1.2 | Grade: PC5030T | Stock: Yes
IL16-2.0ISO PC5030T Type: Internal | Hand: Left | Pitch (mm): 2.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.15 | PDY (mm): 1.0 | PDX (mm): 1.3 | Grade: PC5030T | Stock: Yes
IL16-2.0ISO PC3030T Type: Internal | Hand: Left | Pitch (mm): 2.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.15 | PDY (mm): 1.0 | PDX (mm): 1.3 | Grade: PC3030T | Stock: Yes
IL16-2.5ISO PC5030T Type: Internal | Hand: Left | Pitch (mm): 2.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.44 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC5030T | Stock: Yes
IL16-2.5ISO PC3030T Type: Internal | Hand: Left | Pitch (mm): 2.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.44 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC3030T | Stock: Yes
IL16-3.0ISO PC5030T Type: Internal | Hand: Left | Pitch (mm): 3.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.73 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC5030T | Stock: Yes
IL16-3.0ISO PC3030T Type: Internal | Hand: Left | Pitch (mm): 3.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.73 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC3030T | Stock: Yes
IL22-3.5ISO PC5030T Type: Internal | Hand: Left | Pitch (mm): 3.5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.02 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC5030T | Stock: Yes
IL22-3.5ISO PC3030T Type: Internal | Hand: Left | Pitch (mm): 3.5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.02 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC3030T | Stock: Yes
IL22-4.0ISO PC5030T Type: Internal | Hand: Left | Pitch (mm): 4.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.31 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC5030T | Stock: Yes
IL22-4.0ISO PC3030T Type: Internal | Hand: Left | Pitch (mm): 4.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.31 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC3030T | Stock: Yes
IL22-4.5ISO PC5030T Type: Internal | Hand: Left | Pitch (mm): 4.5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.60 | PDY (mm): 1.6 | PDX (mm): 2.4 | Grade: PC5030T | Stock: Yes
IL22-5.0ISO PC5030T Type: Internal | Hand: Left | Pitch (mm): 5.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.89 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC5030T | Stock: Yes
IL22-5.0ISO PC3030T Type: Internal | Hand: Left | Pitch (mm): 5.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.89 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC3030T | Stock: Yes
IL27-5.5ISO Type: Internal | Hand: Left | Pitch (mm): 5.5 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.17 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL27-6.0ISO PC5030T Type: Internal | Hand: Left | Pitch (mm): 6.0 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.46 | PDY (mm): 1.8 | PDX (mm): 2.5 | Grade: PC5030T | Stock: Yes
Threading InsertsKorloy
132 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Threading Insert ISO Metric Internal

Brand Korloy·Threading Inserts

Available part numbers (132)

IR11-0.35ISO PC5030T, IR11-0.35ISO PC3030T, IR11-0.4ISO PC5030T, IR11-0.4ISO PC3030T, IR11-0.45ISO PC5030T, IR11-0.45ISO PC3030T, IR11-0.5ISO PC5030T, IR11-0.5ISO PC3030T, IR11-0.6ISO PC5030T, IR11-0.6ISO PC3030T + 122 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IR11-0.35ISO PC5030TType: Internal | Hand: Right | Pitch (mm): 0.35 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.20 | PDY (mm): 0.8 | PDX (mm): 0.3 | Grade: PC5030T | Stock: Yes
IR11-0.35ISO PC3030TType: Internal | Hand: Right | Pitch (mm): 0.35 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.20 | PDY (mm): 0.8 | PDX (mm): 0.3 | Grade: PC3030T | Stock: Yes
IR11-0.4ISO PC5030TType: Internal | Hand: Right | Pitch (mm): 0.4 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.23 | PDY (mm): 0.8 | PDX (mm): 0.4 | Grade: PC5030T | Stock: Yes
IR11-0.4ISO PC3030TType: Internal | Hand: Right | Pitch (mm): 0.4 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.23 | PDY (mm): 0.8 | PDX (mm): 0.4 | Grade: PC3030T | Stock: Yes
IR11-0.45ISO PC5030TType: Internal | Hand: Right | Pitch (mm): 0.45 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.26 | PDY (mm): 0.8 | PDX (mm): 0.4 | Grade: PC5030T | Stock: Yes
IR11-0.45ISO PC3030TType: Internal | Hand: Right | Pitch (mm): 0.45 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.26 | PDY (mm): 0.8 | PDX (mm): 0.4 | Grade: PC3030T | Stock: Yes
IR11-0.5ISO PC5030TType: Internal | Hand: Right | Pitch (mm): 0.5 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.29 | PDY (mm): 0.6 | PDX (mm): 0.4 | Grade: PC5030T | Stock: Yes
IR11-0.5ISO PC3030TType: Internal | Hand: Right | Pitch (mm): 0.5 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.29 | PDY (mm): 0.6 | PDX (mm): 0.4 | Grade: PC3030T | Stock: Yes
IR11-0.6ISO PC5030TType: Internal | Hand: Right | Pitch (mm): 0.6 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.35 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
IR11-0.6ISO PC3030TType: Internal | Hand: Right | Pitch (mm): 0.6 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.35 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC3030T | Stock: Yes
IR11-0.7ISO PC5030TType: Internal | Hand: Right | Pitch (mm): 0.7 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.40 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
IR11-0.7ISO PC3030TType: Internal | Hand: Right | Pitch (mm): 0.7 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.40 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC3030T | Stock: Yes
IR11-0.75ISO PC5030TType: Internal | Hand: Right | Pitch (mm): 0.75 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.43 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
IR11-0.75ISO PC3030TType: Internal | Hand: Right | Pitch (mm): 0.75 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.43 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC3030T | Stock: Yes
IR11-0.8ISO PC5030TType: Internal | Hand: Right | Pitch (mm): 0.8 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.46 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
IR11-0.8ISO PC3030TType: Internal | Hand: Right | Pitch (mm): 0.8 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.46 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC3030T | Stock: Yes
IR11-1.0ISO PC5030TType: Internal | Hand: Right | Pitch (mm): 1.0 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.58 | PDY (mm): 0.6 | PDX (mm): 0.7 | Grade: PC5030T | Stock: Yes
IR11-1.0ISO PC3030TType: Internal | Hand: Right | Pitch (mm): 1.0 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.58 | PDY (mm): 0.6 | PDX (mm): 0.7 | Grade: PC3030T | Stock: Yes
IR11-1.25ISO PC5030TType: Internal | Hand: Right | Pitch (mm): 1.25 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.72 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC5030T | Stock: Yes
IR11-1.25ISO PC3030TType: Internal | Hand: Right | Pitch (mm): 1.25 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.72 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC3030T | Stock: Yes
IR11-1.25ISO PC9070TType: Internal | Hand: Right | Pitch (mm): 1.25 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.72 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC9070T | Stock: Yes
IR11-1.5ISO PC5030TType: Internal | Hand: Right | Pitch (mm): 1.5 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.87 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grade: PC5030T | Stock: Yes
IR11-1.5ISO PC3030TType: Internal | Hand: Right | Pitch (mm): 1.5 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.87 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grade: PC3030T | Stock: Yes
IR11-1.5ISO PC9070TType: Internal | Hand: Right | Pitch (mm): 1.5 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.87 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grade: PC9070T | Stock: Yes
IR11-1.75ISO PC5030TType: Internal | Hand: Right | Pitch (mm): 1.75 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.01 | PDY (mm): 0.9 | PDX (mm): 1.1 | Grade: PC5030T | Stock: Yes
IR11-1.75ISO PC9070TType: Internal | Hand: Right | Pitch (mm): 1.75 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.01 | PDY (mm): 0.9 | PDX (mm): 1.1 | Grade: PC9070T | Stock: Yes
IR11-2.0ISO PC5030TType: Internal | Hand: Right | Pitch (mm): 2.0 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.15 | PDY (mm): 0.9 | PDX (mm): 1.1 | Grade: PC5030T | Stock: Yes
IR11-2.0ISO PC3030TType: Internal | Hand: Right | Pitch (mm): 2.0 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.15 | PDY (mm): 0.9 | PDX (mm): 1.1 | Grade: PC3030T | Stock: Yes
IR11-2.0ISO PC9070TType: Internal | Hand: Right | Pitch (mm): 2.0 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.15 | PDY (mm): 0.9 | PDX (mm): 1.1 | Grade: PC9070T | Stock: Yes
IR11-2.5ISO PC5030TType: Internal | Hand: Right | Pitch (mm): 2.5 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.44 | PDY (mm): 0.8 | PDX (mm): 1.1 | Grade: PC5030T | Stock: Yes
IR11-2.5ISO PC3030TType: Internal | Hand: Right | Pitch (mm): 2.5 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.44 | PDY (mm): 0.8 | PDX (mm): 1.1 | Grade: PC3030T | Stock: Yes
IR16-0.35ISO PC3030TType: Internal | Hand: Right | Pitch (mm): 0.35 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.20 | PDY (mm): 0.8 | PDX (mm): 0.3 | Grade: PC3030T | Stock: Yes
IR16-0.4ISO PC5030TType: Internal | Hand: Right | Pitch (mm): 0.4 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.23 | PDY (mm): 0.8 | PDX (mm): 0.4 | Grade: PC5030T | Stock: Yes
IR16-0.4ISO PC3030TType: Internal | Hand: Right | Pitch (mm): 0.4 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.23 | PDY (mm): 0.8 | PDX (mm): 0.4 | Grade: PC3030T | Stock: Yes
IR16-0.45ISO PC3030TType: Internal | Hand: Right | Pitch (mm): 0.45 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.26 | PDY (mm): 0.8 | PDX (mm): 0.4 | Grade: PC3030T | Stock: Yes
IR16-0.5ISO PC5030TType: Internal | Hand: Right | Pitch (mm): 0.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.29 | PDY (mm): 0.6 | PDX (mm): 0.4 | Grade: PC5030T | Stock: Yes
IR16-0.5ISO PC3030TType: Internal | Hand: Right | Pitch (mm): 0.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.29 | PDY (mm): 0.6 | PDX (mm): 0.4 | Grade: PC3030T | Stock: Yes
IR16-0.6ISO PC5030TType: Internal | Hand: Right | Pitch (mm): 0.6 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.35 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
IR16-0.6ISO PC3030TType: Internal | Hand: Right | Pitch (mm): 0.6 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.35 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC3030T | Stock: Yes
IR16-0.7ISO PC5030TType: Internal | Hand: Right | Pitch (mm): 0.7 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.40 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
IR16-0.7ISO PC3030TType: Internal | Hand: Right | Pitch (mm): 0.7 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.40 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC3030T | Stock: Yes
IR16-0.75ISO PC5030TType: Internal | Hand: Right | Pitch (mm): 0.75 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.43 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
IR16-0.75ISO PC3030TType: Internal | Hand: Right | Pitch (mm): 0.75 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.43 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC3030T | Stock: Yes
IR16-0.8ISO PC5030TType: Internal | Hand: Right | Pitch (mm): 0.8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.46 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
IR16-0.8ISO PC3030TType: Internal | Hand: Right | Pitch (mm): 0.8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.46 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC3030T | Stock: Yes
IR16-1.0ISO PC5030TType: Internal | Hand: Right | Pitch (mm): 1.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.58 | PDY (mm): 0.6 | PDX (mm): 0.7 | Grade: PC5030T | Stock: Yes
IR16-1.0ISO PC3030TType: Internal | Hand: Right | Pitch (mm): 1.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.58 | PDY (mm): 0.6 | PDX (mm): 0.7 | Grade: PC3030T | Stock: Yes
IR16-1.0ISO PC9070TType: Internal | Hand: Right | Pitch (mm): 1.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.58 | PDY (mm): 0.6 | PDX (mm): 0.7 | Grade: PC9070T | Stock: Yes
IR16-1.25ISO PC5030TType: Internal | Hand: Right | Pitch (mm): 1.25 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.72 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC5030T | Stock: Yes
IR16-1.25ISO PC3030TType: Internal | Hand: Right | Pitch (mm): 1.25 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.72 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC3030T | Stock: Yes
IR16-1.25ISO PC9070TType: Internal | Hand: Right | Pitch (mm): 1.25 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.72 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC9070T | Stock: Yes
IR16-1.5ISO PC5030TType: Internal | Hand: Right | PDX (mm): 1.0 | Pitch (mm): 1.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.87 | PDY (mm): 0.8 | Grade: PC5030T | Stock: Yes
IR16-1.5ISO PC3030TType: Internal | Hand: Right | PDX (mm): 1.0 | Pitch (mm): 1.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.87 | PDY (mm): 0.8 | Grade: PC3030T | Stock: Yes
IR16-1.5ISO PC9070TType: Internal | Hand: Right | PDX (mm): 1.0 | Pitch (mm): 1.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.87 | PDY (mm): 0.8 | Grade: PC9070T | Stock: Yes
IR16-1.75ISO PC5030TType: Internal | Hand: Right | Pitch (mm): 1.75 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.01 | PDY (mm): 0.9 | PDX (mm): 1.2 | Grade: PC5030T | Stock: Yes
IR16-1.75ISO PC3030TType: Internal | Hand: Right | Pitch (mm): 1.75 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.01 | PDY (mm): 0.9 | PDX (mm): 1.2 | Grade: PC3030T | Stock: Yes
IR16-1.75ISO PC9070TType: Internal | Hand: Right | Pitch (mm): 1.75 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.01 | PDY (mm): 0.9 | PDX (mm): 1.2 | Grade: PC9070T | Stock: Yes
IR16-2.0ISO PC5030TType: Internal | Hand: Right | Pitch (mm): 2.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.15 | PDY (mm): 1.0 | PDX (mm): 1.3 | Grade: PC5030T | Stock: Yes
IR16-2.0ISO PC3030TType: Internal | Hand: Right | Pitch (mm): 2.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.15 | PDY (mm): 1.0 | PDX (mm): 1.3 | Grade: PC3030T | Stock: Yes
IR16-2.0ISO PC9070TType: Internal | Hand: Right | Pitch (mm): 2.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.15 | PDY (mm): 1.0 | PDX (mm): 1.3 | Grade: PC9070T | Stock: Yes
IR16-2.5ISO PC5030TType: Internal | Hand: Right | Pitch (mm): 2.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.44 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC5030T | Stock: Yes
IR16-2.5ISO PC3030TType: Internal | Hand: Right | Pitch (mm): 2.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.44 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC3030T | Stock: Yes
IR16-2.5ISO PC9070TType: Internal | Hand: Right | Pitch (mm): 2.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.44 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC9070T | Stock: Yes
IR16-3.0ISO PC5030TType: Internal | Hand: Right | Pitch (mm): 3.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.73 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC5030T | Stock: Yes
IR16-3.0ISO PC3030TType: Internal | Hand: Right | Pitch (mm): 3.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.73 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC3030T | Stock: Yes
IR16-3.0ISO PC9070TType: Internal | Hand: Right | Pitch (mm): 3.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.73 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC9070T | Stock: Yes
IR22-3.5ISO PC5030TType: Internal | Hand: Right | Pitch (mm): 3.5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.02 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC5030T | Stock: Yes
IR22-3.5ISO PC3030TType: Internal | Hand: Right | Pitch (mm): 3.5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.02 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC3030T | Stock: Yes
IR22-3.5ISO PC9070TType: Internal | Hand: Right | Pitch (mm): 3.5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.02 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC9070T | Stock: Yes
IR22-4.0ISO PC5030TType: Internal | Hand: Right | Pitch (mm): 4.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.31 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC5030T | Stock: Yes
IR22-4.0ISO PC3030TType: Internal | Hand: Right | Pitch (mm): 4.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.31 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC3030T | Stock: Yes
IR22-4.0ISO PC9070TType: Internal | Hand: Right | Pitch (mm): 4.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.31 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC9070T | Stock: Yes
IR22-4.5ISO PC5030TType: Internal | Hand: Right | Pitch (mm): 4.5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.60 | PDY (mm): 1.6 | PDX (mm): 2.4 | Grade: PC5030T | Stock: Yes
IR22-4.5ISO PC3030TType: Internal | Hand: Right | Pitch (mm): 4.5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.60 | PDY (mm): 1.6 | PDX (mm): 2.4 | Grade: PC3030T | Stock: Yes
IR22-4.5ISO PC9070TType: Internal | Hand: Right | Pitch (mm): 4.5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.60 | PDY (mm): 1.6 | PDX (mm): 2.4 | Grade: PC9070T | Stock: Yes
IR22-5.0ISO PC5030TType: Internal | Hand: Right | Pitch (mm): 5.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.89 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC5030T | Stock: Yes
IR22-5.0ISO PC3030TType: Internal | Hand: Right | Pitch (mm): 5.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.89 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC3030T | Stock: Yes
IR22-5.0ISO PC9070TType: Internal | Hand: Right | Pitch (mm): 5.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.89 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC9070T | Stock: Yes
IR27-5.5ISO PC5030TType: Internal | Hand: Right | Pitch (mm): 5.5 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.17 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC5030T | Stock: Yes
IR27-5.5ISO PC3030TType: Internal | Hand: Right | Pitch (mm): 5.5 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.17 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC3030T | Stock: Yes
IR27-6.0ISO PC5030TType: Internal | Hand: Right | Pitch (mm): 6.0 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.46 | PDY (mm): 1.8 | PDX (mm): 2.5 | Grade: PC5030T | Stock: Yes
IR27-6.0ISO PC3030TType: Internal | Hand: Right | Pitch (mm): 6.0 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.46 | PDY (mm): 1.8 | PDX (mm): 2.5 | Grade: PC3030T | Stock: Yes
IL11-0.35ISOType: Internal | Hand: Left | Pitch (mm): 0.35 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.20 | PDY (mm): 0.8 | PDX (mm): 0.3 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL11-0.4ISOType: Internal | Hand: Left | Pitch (mm): 0.4 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.23 | PDY (mm): 0.8 | PDX (mm): 0.4 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL11-0.45ISOType: Internal | Hand: Left | Pitch (mm): 0.45 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.26 | PDY (mm): 0.8 | PDX (mm): 0.4 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL11-0.5ISO PC5030TType: Internal | Hand: Left | Pitch (mm): 0.5 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.29 | PDY (mm): 0.6 | PDX (mm): 0.4 | Grade: PC5030T | Stock: Yes
IL11-0.5ISO PC3030TType: Internal | Hand: Left | Pitch (mm): 0.5 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.29 | PDY (mm): 0.6 | PDX (mm): 0.4 | Grade: PC3030T | Stock: Yes
IL11-0.6ISOType: Internal | Hand: Left | Pitch (mm): 0.6 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.35 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL11-0.7ISOType: Internal | Hand: Left | Pitch (mm): 0.7 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.40 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL11-0.75ISO PC5030TType: Internal | Hand: Left | Pitch (mm): 0.75 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.43 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
IL11-0.75ISO PC3030TType: Internal | Hand: Left | Pitch (mm): 0.75 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.43 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC3030T | Stock: Yes
IL11-0.8ISO PC5030TType: Internal | Hand: Left | Pitch (mm): 0.8 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.46 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
IL11-1.0ISO PC5030TType: Internal | Hand: Left | Pitch (mm): 1.0 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.58 | PDY (mm): 0.6 | PDX (mm): 0.7 | Grade: PC5030T | Stock: Yes
IL11-1.25ISO PC5030TType: Internal | Hand: Left | Pitch (mm): 1.25 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.72 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC5030T | Stock: Yes
IL11-1.25ISO PC3030TType: Internal | Hand: Left | Pitch (mm): 1.25 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.72 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC3030T | Stock: Yes
IL11-1.5ISO PC5030TType: Internal | Hand: Left | Pitch (mm): 1.5 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.87 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grade: PC5030T | Stock: Yes
IL11-1.5ISO PC3030TType: Internal | Hand: Left | Pitch (mm): 1.5 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.87 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grade: PC3030T | Stock: Yes
IL11-1.5ISO PC9070TType: Internal | Hand: Left | Pitch (mm): 1.5 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.87 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grade: PC9070T | Stock: Yes
IL11-1.75ISO PC5030TType: Internal | Hand: Left | Pitch (mm): 1.75 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.01 | PDY (mm): 0.9 | PDX (mm): 1.1 | Grade: PC5030T | Stock: Yes
IL11-2.0ISO PC5030TType: Internal | Hand: Left | Pitch (mm): 2.0 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.15 | PDY (mm): 0.9 | PDX (mm): 1.1 | Grade: PC5030T | Stock: Yes
IL11-2.0ISO PC3030TType: Internal | Hand: Left | Pitch (mm): 2.0 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.15 | PDY (mm): 0.9 | PDX (mm): 1.1 | Grade: PC3030T | Stock: Yes
IL11-2.5ISO PC5030TType: Internal | Hand: Left | Pitch (mm): 2.5 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.44 | PDY (mm): 0.8 | PDX (mm): 1.1 | Grade: PC5030T | Stock: Yes
IL11-2.5ISO PC3030TType: Internal | Hand: Left | Pitch (mm): 2.5 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.44 | PDY (mm): 0.8 | PDX (mm): 1.1 | Grade: PC3030T | Stock: Yes
IL16-0.35ISOType: Internal | Hand: Left | Pitch (mm): 0.35 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.20 | PDY (mm): 0.8 | PDX (mm): 0.3 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL16-0.4ISOType: Internal | Hand: Left | Pitch (mm): 0.4 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.23 | PDY (mm): 0.8 | PDX (mm): 0.4 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL16-0.45ISOType: Internal | Hand: Left | Pitch (mm): 0.45 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.26 | PDY (mm): 0.8 | PDX (mm): 0.4 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL16-0.5ISOType: Internal | Hand: Left | Pitch (mm): 0.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.29 | PDY (mm): 0.6 | PDX (mm): 0.4 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL16-0.6ISOType: Internal | Hand: Left | Pitch (mm): 0.6 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.35 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL16-0.7ISOType: Internal | Hand: Left | Pitch (mm): 0.7 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.40 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL16-0.75ISO PC5030TType: Internal | Hand: Left | Pitch (mm): 0.75 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.43 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
IL16-0.8ISO PC5030TType: Internal | Hand: Left | Pitch (mm): 0.8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.46 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
IL16-1.0ISO PC5030TType: Internal | Hand: Left | Pitch (mm): 1.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.58 | PDY (mm): 0.6 | PDX (mm): 0.7 | Grade: PC5030T | Stock: Yes
IL16-1.0ISO PC3030TType: Internal | Hand: Left | Pitch (mm): 1.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.58 | PDY (mm): 0.6 | PDX (mm): 0.7 | Grade: PC3030T | Stock: Yes
IL16-1.25ISO PC5030TType: Internal | Hand: Left | Pitch (mm): 1.25 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.72 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC5030T | Stock: Yes
IL16-1.5ISO PC5030TType: Internal | Hand: Left | PDX (mm): 1.0 | Pitch (mm): 1.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.87 | PDY (mm): 0.8 | Grade: PC5030T | Stock: Yes
IL16-1.5ISO PC3030TType: Internal | Hand: Left | PDX (mm): 1.0 | Pitch (mm): 1.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.87 | PDY (mm): 0.8 | Grade: PC3030T | Stock: Yes
IL16-1.75ISO PC5030TType: Internal | Hand: Left | Pitch (mm): 1.75 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.01 | PDY (mm): 0.9 | PDX (mm): 1.2 | Grade: PC5030T | Stock: Yes
IL16-2.0ISO PC5030TType: Internal | Hand: Left | Pitch (mm): 2.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.15 | PDY (mm): 1.0 | PDX (mm): 1.3 | Grade: PC5030T | Stock: Yes
IL16-2.0ISO PC3030TType: Internal | Hand: Left | Pitch (mm): 2.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.15 | PDY (mm): 1.0 | PDX (mm): 1.3 | Grade: PC3030T | Stock: Yes
IL16-2.5ISO PC5030TType: Internal | Hand: Left | Pitch (mm): 2.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.44 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC5030T | Stock: Yes
IL16-2.5ISO PC3030TType: Internal | Hand: Left | Pitch (mm): 2.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.44 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC3030T | Stock: Yes
IL16-3.0ISO PC5030TType: Internal | Hand: Left | Pitch (mm): 3.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.73 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC5030T | Stock: Yes
IL16-3.0ISO PC3030TType: Internal | Hand: Left | Pitch (mm): 3.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.73 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC3030T | Stock: Yes
IL22-3.5ISO PC5030TType: Internal | Hand: Left | Pitch (mm): 3.5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.02 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC5030T | Stock: Yes
IL22-3.5ISO PC3030TType: Internal | Hand: Left | Pitch (mm): 3.5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.02 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC3030T | Stock: Yes
IL22-4.0ISO PC5030TType: Internal | Hand: Left | Pitch (mm): 4.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.31 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC5030T | Stock: Yes
IL22-4.0ISO PC3030TType: Internal | Hand: Left | Pitch (mm): 4.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.31 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC3030T | Stock: Yes
IL22-4.5ISO PC5030TType: Internal | Hand: Left | Pitch (mm): 4.5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.60 | PDY (mm): 1.6 | PDX (mm): 2.4 | Grade: PC5030T | Stock: Yes
IL22-5.0ISO PC5030TType: Internal | Hand: Left | Pitch (mm): 5.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.89 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC5030T | Stock: Yes
IL22-5.0ISO PC3030TType: Internal | Hand: Left | Pitch (mm): 5.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.89 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC3030T | Stock: Yes
IL27-5.5ISOType: Internal | Hand: Left | Pitch (mm): 5.5 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.17 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IL27-6.0ISO PC5030TType: Internal | Hand: Left | Pitch (mm): 6.0 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.46 | PDY (mm): 1.8 | PDX (mm): 2.5 | Grade: PC5030T | Stock: Yes

Need a different model, or a part not listed here? Send us your parts list →

Related products

All Cutting Tools →
