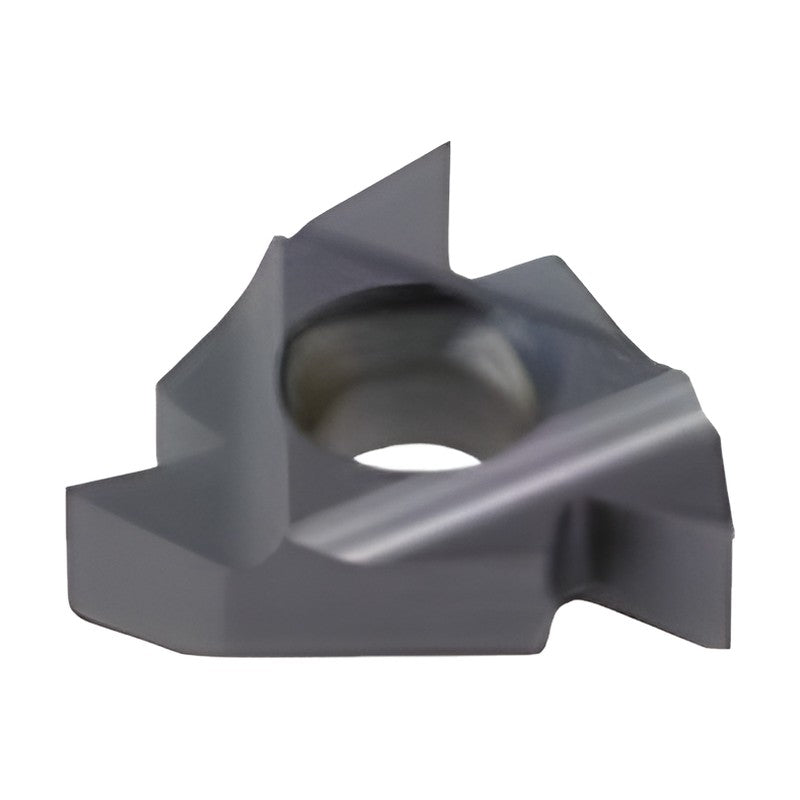

Full profile threading inserts for Metric buttress (SAGE) threads, external machining.

Key features

  • Laid-down 3-edge threading insert for external threading
  • Precision-ground profile for high-quality thread surface finish
  • Right- and left-hand versions
  • Grades: PC5030T (universal PVD), PC3030T, PC9070T, PC5300
  • Applicable holders: ER(L)H / ER(L)H-C

Specifications

Thread standard Metric buttress (SAGE)
Profile Full profile
Thread type External
Insert type Laid-down threading insert
Type External
ER16-2.0SAGE Type: External | Hand: Right | Pitch (mm): 2.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.74 | PDY (mm): 1.47 | PDX (mm): 2.08 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER22-2.0SAGE Type: External | Hand: Right | Pitch (mm): 2.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 1.74 | PDY (mm): 1.47 | PDX (mm): 2.08 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER22-3.0SAGE PC3030T Type: External | Hand: Right | Pitch (mm): 3.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.60 | PDY (mm): 1.79 | PDX (mm): 2.60 | Grade: PC3030T | Stock: Yes
ER27-4.0SAGE Type: External | Hand: Right | Pitch (mm): 4.0 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.55 | PDY (mm): 1.93 | PDX (mm): L | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-2.0SAGE Type: External | Hand: Left | Pitch (mm): 2.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.74 | PDY (mm): 1.47 | PDX (mm): 2.08 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL22-2.0SAGE Type: External | Hand: Left | Pitch (mm): 2.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 1.74 | PDY (mm): 1.47 | PDX (mm): 2.08 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL22-3.0SAGE Type: External | Hand: Left | Pitch (mm): 3.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.60 | PDY (mm): 1.79 | PDX (mm): 2.60 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL27-4.0SAGE Type: External | Hand: Left | Pitch (mm): 4.0 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.55 | PDY (mm): 1.93 | PDX (mm): L | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
