• Korloy Threading Insert National Pipe Thread (NPT) External
1 1

Korloy Threading Insert National Pipe Thread (NPT) External

Korloy Threading Insert National Pipe Thread (NPT) External

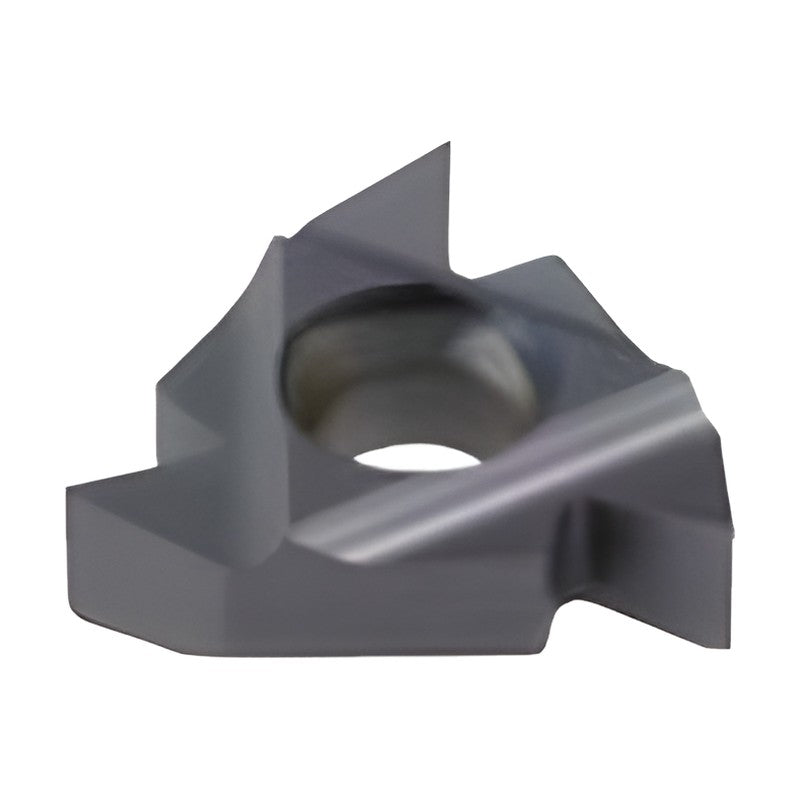

Full profile threading inserts for National Pipe Thread (NPT) threads, external machining.

Key features

  • Laid-down 3-edge threading insert for external threading
  • Precision-ground profile for high-quality thread surface finish
  • Right- and left-hand versions
  • Grades: PC5030T (universal PVD), PC3030T, PC9070T, PC5300
  • Applicable holders: ER(L)H / ER(L)H-C

Specifications

Thread standard National Pipe Thread (NPT)
Profile Full profile
Thread type External
Insert type Laid-down threading insert
Type External
ER11-27NPT Type: External | Hand: Right | Threads per inch (TPI): 27 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.66 | PDY (mm): 0.7 | PDX (mm): 0.8 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER11-18NPT Type: External | Hand: Right | Threads per inch (TPI): 18 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.01 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER11-14NPT Type: External | Hand: Right | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.33 | PDY (mm): 0.8 | PDX (mm): PDY | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER16-27NPT Type: External | Hand: Right | Threads per inch (TPI): 27 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.66 | PDY (mm): 0.7 | PDX (mm): 0.8 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER16-18NPT PC3030T Type: External | Hand: Right | Threads per inch (TPI): 18 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.01 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grade: PC3030T | Stock: Yes
ER16-18NPT PC9070T Type: External | Hand: Right | Threads per inch (TPI): 18 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.01 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grade: PC9070T | Stock: Yes
ER16-14NPT PC3030T Type: External | Hand: Right | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.33 | PDY (mm): 0.9 | PDX (mm): 1.2 | Grade: PC3030T | Stock: Yes
ER16-14NPT PC9070T Type: External | Hand: Right | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.33 | PDY (mm): 0.9 | PDX (mm): 1.2 | Grade: PC9070T | Stock: Yes
ER16-11.5NPT PC3030T Type: External | Hand: Right | Threads per inch (TPI): 11.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.64 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC3030T | Stock: Yes
ER16-8NPT Type: External | Hand: Right | Threads per inch (TPI): 8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 2.42 | PDY (mm): 1.3 | PDX (mm): 1.8 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-27NPT Type: External | Hand: Left | Threads per inch (TPI): 27 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.66 | PDY (mm): 0.7 | PDX (mm): 0.8 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-18NPT Type: External | Hand: Left | Threads per inch (TPI): 18 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.01 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-14NPT Type: External | Hand: Left | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.33 | PDY (mm): 0.8 | PDX (mm): PDY | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-27NPT Type: External | Hand: Left | Threads per inch (TPI): 27 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.66 | PDY (mm): 0.7 | PDX (mm): 0.8 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-18NPT Type: External | Hand: Left | Threads per inch (TPI): 18 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.01 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-14NPT Type: External | Hand: Left | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.33 | PDY (mm): 0.9 | PDX (mm): 1.2 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-11.5NPT Type: External | Hand: Left | Threads per inch (TPI): 11.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.64 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-8NPT Type: External | Hand: Left | Threads per inch (TPI): 8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 2.42 | PDY (mm): 1.3 | PDX (mm): 1.8 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
Threading InsertsKorloy
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Threading Insert National Pipe Thread (NPT) External

Brand Korloy·Threading Inserts

Available part numbers (18)

ER11-27NPT, ER11-18NPT, ER11-14NPT, ER16-27NPT, ER16-18NPT PC3030T, ER16-18NPT PC9070T, ER16-14NPT PC3030T, ER16-14NPT PC9070T, ER16-11.5NPT PC3030T, ER16-8NPT + 8 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ER11-27NPTType: External | Hand: Right | Threads per inch (TPI): 27 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.66 | PDY (mm): 0.7 | PDX (mm): 0.8 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER11-18NPTType: External | Hand: Right | Threads per inch (TPI): 18 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.01 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER11-14NPTType: External | Hand: Right | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.33 | PDY (mm): 0.8 | PDX (mm): PDY | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER16-27NPTType: External | Hand: Right | Threads per inch (TPI): 27 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.66 | PDY (mm): 0.7 | PDX (mm): 0.8 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER16-18NPT PC3030TType: External | Hand: Right | Threads per inch (TPI): 18 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.01 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grade: PC3030T | Stock: Yes
ER16-18NPT PC9070TType: External | Hand: Right | Threads per inch (TPI): 18 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.01 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grade: PC9070T | Stock: Yes
ER16-14NPT PC3030TType: External | Hand: Right | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.33 | PDY (mm): 0.9 | PDX (mm): 1.2 | Grade: PC3030T | Stock: Yes
ER16-14NPT PC9070TType: External | Hand: Right | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.33 | PDY (mm): 0.9 | PDX (mm): 1.2 | Grade: PC9070T | Stock: Yes
ER16-11.5NPT PC3030TType: External | Hand: Right | Threads per inch (TPI): 11.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.64 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC3030T | Stock: Yes
ER16-8NPTType: External | Hand: Right | Threads per inch (TPI): 8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 2.42 | PDY (mm): 1.3 | PDX (mm): 1.8 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-27NPTType: External | Hand: Left | Threads per inch (TPI): 27 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.66 | PDY (mm): 0.7 | PDX (mm): 0.8 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-18NPTType: External | Hand: Left | Threads per inch (TPI): 18 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.01 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-14NPTType: External | Hand: Left | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.33 | PDY (mm): 0.8 | PDX (mm): PDY | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-27NPTType: External | Hand: Left | Threads per inch (TPI): 27 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.66 | PDY (mm): 0.7 | PDX (mm): 0.8 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-18NPTType: External | Hand: Left | Threads per inch (TPI): 18 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.01 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-14NPTType: External | Hand: Left | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.33 | PDY (mm): 0.9 | PDX (mm): 1.2 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-11.5NPTType: External | Hand: Left | Threads per inch (TPI): 11.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.64 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-8NPTType: External | Hand: Left | Threads per inch (TPI): 8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 2.42 | PDY (mm): 1.3 | PDX (mm): 1.8 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item

Need a different model, or a part not listed here? Send us your parts list →
