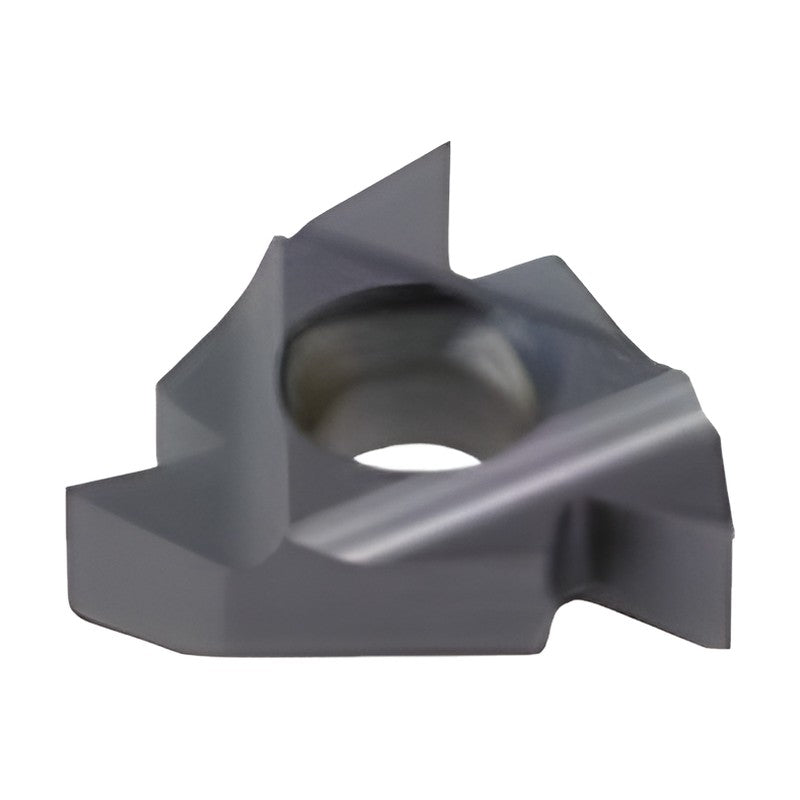

Korloy Threading Insert Partial Profile 55° External

Korloy Threading Insert Partial Profile 55° External

Partial profile threading inserts for Partial profile 55° threads, external machining.

Key features

  • Laid-down 3-edge threading insert for external threading
  • Precision-ground profile for high-quality thread surface finish
  • Right- and left-hand versions
  • Grades: PC5030T (universal PVD), PC3030T, PC9070T, PC5300
  • Applicable holders: ER(L)H / ER(L)H-C

Specifications

Thread standard Partial profile 55°
Profile Partial profile
Thread type External
Insert type Laid-down threading insert
Type External
Stock Yes
ER11-A55 PC5030T Type: External | Hand: Right | Pitch (mm): 0.5~1.5 | Threads per inch (TPI): 48~16 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Corner radius RE (mm): 0.05 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC5030T | Stock: Yes
ER11-A55 PC3030T Type: External | Hand: Right | Pitch (mm): 0.5~1.5 | Threads per inch (TPI): 48~16 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Corner radius RE (mm): 0.05 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC3030T | Stock: Yes
ER16-A55 PC5030T Type: External | Hand: Right | Pitch (mm): 0.5~1.5 | Threads per inch (TPI): 48~16 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Corner radius RE (mm): 0.05 | PDY (mm): 0.8 | PDX (mm): PDY | Grade: PC5030T | Stock: Yes
ER16-A55 PC3030T Type: External | Hand: Right | Pitch (mm): 0.5~1.5 | Threads per inch (TPI): 48~16 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Corner radius RE (mm): 0.05 | PDY (mm): 0.8 | PDX (mm): PDY | Grade: PC3030T | Stock: Yes
ER16-G55 PC5030T Type: External | Hand: Right | Pitch (mm): 1.75~3.0 | Threads per inch (TPI): 14~8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Corner radius RE (mm): 0.21 | PDY (mm): 1.2 | PDX (mm): 1.7 | Grade: PC5030T | Stock: Yes
ER16-G55 PC3030T Type: External | Hand: Right | Pitch (mm): 1.75~3.0 | Threads per inch (TPI): 14~8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Corner radius RE (mm): 0.21 | PDY (mm): 1.2 | PDX (mm): 1.7 | Grade: PC3030T | Stock: Yes
ER16-AG55 PC5030T Type: External | Hand: Right | Pitch (mm): 0.5~3.0 | Threads per inch (TPI): 48~8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Corner radius RE (mm): 0.07 | PDY (mm): 1.2 | PDX (mm): 1.7 | Grade: PC5030T | Stock: Yes
ER16-AG55 PC3030T Type: External | Hand: Right | Pitch (mm): 0.5~3.0 | Threads per inch (TPI): 48~8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Corner radius RE (mm): 0.07 | PDY (mm): 1.2 | PDX (mm): 1.7 | Grade: PC3030T | Stock: Yes
ER22-N55 PC5030T Type: External | Hand: Right | Pitch (mm): 3.5~5.0 | Threads per inch (TPI): 7~5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Corner radius RE (mm): 0.43 | PDY (mm): 1.7 | PDX (mm): 2.5 | Grade: PC5030T | Stock: Yes
ER22-N55 PC3030T Type: External | Hand: Right | Pitch (mm): 3.5~5.0 | Threads per inch (TPI): 7~5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Corner radius RE (mm): 0.43 | PDY (mm): 1.7 | PDX (mm): 2.5 | Grade: PC3030T | Stock: Yes
ER27-Q55 PC5030T Type: External | Hand: Right | Pitch (mm): 5.5~6.0 | Threads per inch (TPI): 4.5~4 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Corner radius RE (mm): 0.60 | PDY (mm): 2.0 | PDX (mm): 2.9 | Grade: PC5030T | Stock: Yes
ER27-Q55 PC3030T Type: External | Hand: Right | Pitch (mm): 5.5~6.0 | Threads per inch (TPI): 4.5~4 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Corner radius RE (mm): 0.60 | PDY (mm): 2.0 | PDX (mm): 2.9 | Grade: PC3030T | Stock: Yes
EL11-A55 PC3030T Type: External | Hand: Left | Pitch (mm): 0.5~1.5 | Threads per inch (TPI): 48~16 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Corner radius RE (mm): 0.05 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC3030T | Stock: Yes
EL16-A55 PC5030T Type: External | Hand: Left | Pitch (mm): 0.5~1.5 | Threads per inch (TPI): 48~16 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Corner radius RE (mm): 0.05 | PDY (mm): 0.8 | PDX (mm): PDY | Grade: PC5030T | Stock: Yes
EL16-G55 PC5030T Type: External | Hand: Left | Pitch (mm): 1.75~3.0 | Threads per inch (TPI): 14~8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Corner radius RE (mm): 0.21 | PDY (mm): 1.2 | PDX (mm): 1.7 | Grade: PC5030T | Stock: Yes
EL16-AG55 PC5030T Type: External | Hand: Left | Pitch (mm): 0.5~3.0 | Threads per inch (TPI): 48~8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Corner radius RE (mm): 0.07 | PDY (mm): 1.2 | PDX (mm): 1.7 | Grade: PC5030T | Stock: Yes
EL16-AG55 PC3030T Type: External | Hand: Left | Pitch (mm): 0.5~3.0 | Threads per inch (TPI): 48~8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Corner radius RE (mm): 0.07 | PDY (mm): 1.2 | PDX (mm): 1.7 | Grade: PC3030T | Stock: Yes
EL22-N55 PC3030T Type: External | Hand: Left | Pitch (mm): 3.5~5.0 | Threads per inch (TPI): 7~5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Corner radius RE (mm): 0.43 | PDY (mm): 1.7 | PDX (mm): 2.5 | Grade: PC3030T | Stock: Yes
EL27-Q55 PC3030T Type: External | Hand: Left | Pitch (mm): 5.5~6.0 | Threads per inch (TPI): 4.5~4 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Corner radius RE (mm): 0.60 | PDY (mm): 2.0 | PDX (mm): 2.9 | Grade: PC3030T | Stock: Yes
