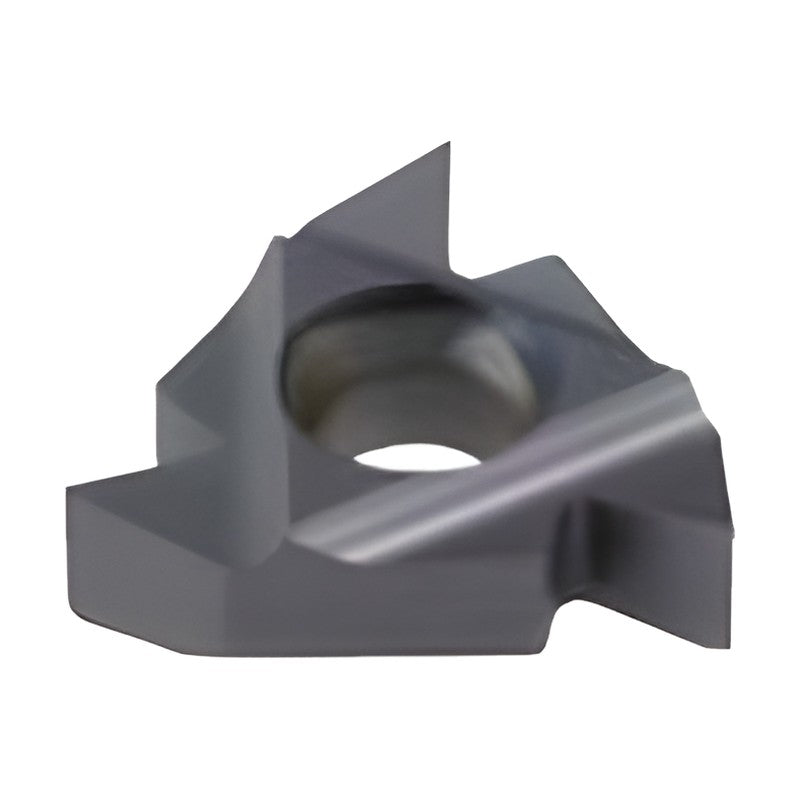

Korloy Threading Insert Partial Profile 60° External

Korloy Threading Insert Partial Profile 60° External

Partial profile threading inserts for Partial profile 60° threads, external machining.

Key features

  • Laid-down 3-edge threading insert for external threading
  • Precision-ground profile for high-quality thread surface finish
  • Right- and left-hand versions
  • Grades: PC5030T (universal PVD), PC3030T, PC9070T, PC5300
  • Applicable holders: ER(L)H / ER(L)H-C

Specifications

Thread standard Partial profile 60°
Profile Partial profile
Thread type External
Insert type Laid-down threading insert
Type External
Stock Yes
ER11-A60 PC5030T Type: External | Hand: Right | Pitch (mm): 0.5~1.5 | Threads per inch (TPI): 48~16 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Corner radius RE (mm): 0.05 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC5030T | Stock: Yes
ER11-A60 PC3030T Type: External | Hand: Right | Pitch (mm): 0.5~1.5 | Threads per inch (TPI): 48~16 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Corner radius RE (mm): 0.05 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC3030T | Stock: Yes
ER11-A60 PC9070T Type: External | Hand: Right | Pitch (mm): 0.5~1.5 | Threads per inch (TPI): 48~16 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Corner radius RE (mm): 0.05 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC9070T | Stock: Yes
ER16-A60 PC5030T Type: External | Hand: Right | Pitch (mm): 0.5~1.5 | Threads per inch (TPI): 48~16 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Corner radius RE (mm): 0.05 | PDY (mm): 0.8 | PDX (mm): PDY | Grade: PC5030T | Stock: Yes
ER16-A60 PC3030T Type: External | Hand: Right | Pitch (mm): 0.5~1.5 | Threads per inch (TPI): 48~16 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Corner radius RE (mm): 0.05 | PDY (mm): 0.8 | PDX (mm): PDY | Grade: PC3030T | Stock: Yes
ER16-A60 PC9070T Type: External | Hand: Right | Pitch (mm): 0.5~1.5 | Threads per inch (TPI): 48~16 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Corner radius RE (mm): 0.05 | PDY (mm): 0.8 | PDX (mm): PDY | Grade: PC9070T | Stock: Yes
ER16-G60 PC5030T Type: External | Hand: Right | Pitch (mm): 1.75~3.0 | Threads per inch (TPI): 14~8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Corner radius RE (mm): 0.27 | PDY (mm): 1.2 | PDX (mm): 1.7 | Grade: PC5030T | Stock: Yes
ER16-G60 PC3030T Type: External | Hand: Right | Pitch (mm): 1.75~3.0 | Threads per inch (TPI): 14~8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Corner radius RE (mm): 0.27 | PDY (mm): 1.2 | PDX (mm): 1.7 | Grade: PC3030T | Stock: Yes
ER16-AG60 PC5030T Type: External | Hand: Right | Pitch (mm): 0.5~3.0 | Threads per inch (TPI): 48~8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Corner radius RE (mm): 0.08 | PDY (mm): 1.2 | PDX (mm): 1.7 | Grade: PC5030T | Stock: Yes
ER16-AG60 PC3030T Type: External | Hand: Right | Pitch (mm): 0.5~3.0 | Threads per inch (TPI): 48~8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Corner radius RE (mm): 0.08 | PDY (mm): 1.2 | PDX (mm): 1.7 | Grade: PC3030T | Stock: Yes
ER16-AG60 PC9070T Type: External | Hand: Right | Pitch (mm): 0.5~3.0 | Threads per inch (TPI): 48~8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Corner radius RE (mm): 0.08 | PDY (mm): 1.2 | PDX (mm): 1.7 | Grade: PC9070T | Stock: Yes
ER22-N60 PC5030T Type: External | Hand: Right | Pitch (mm): 3.5~5.0 | Threads per inch (TPI): 7~5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Corner radius RE (mm): 0.53 | PDY (mm): 1.7 | PDX (mm): 2.5 | Grade: PC5030T | Stock: Yes
ER22-N60 PC3030T Type: External | Hand: Right | Pitch (mm): 3.5~5.0 | Threads per inch (TPI): 7~5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Corner radius RE (mm): 0.53 | PDY (mm): 1.7 | PDX (mm): 2.5 | Grade: PC3030T | Stock: Yes
ER22-N60 PC9070T Type: External | Hand: Right | Pitch (mm): 3.5~5.0 | Threads per inch (TPI): 7~5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Corner radius RE (mm): 0.53 | PDY (mm): 1.7 | PDX (mm): 2.5 | Grade: PC9070T | Stock: Yes
ER27-Q60 PC5030T Type: External | Hand: Right | Pitch (mm): 5.5~6.0 | Threads per inch (TPI): 4.5~4 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Corner radius RE (mm): 0.64 | PDY (mm): 2.1 | PDX (mm): 3.1 | Grade: PC5030T | Stock: Yes
ER27-Q60 PC3030T Type: External | Hand: Right | Pitch (mm): 5.5~6.0 | Threads per inch (TPI): 4.5~4 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Corner radius RE (mm): 0.64 | PDY (mm): 2.1 | PDX (mm): 3.1 | Grade: PC3030T | Stock: Yes
ER27-Q60 PC9070T Type: External | Hand: Right | Pitch (mm): 5.5~6.0 | Threads per inch (TPI): 4.5~4 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Corner radius RE (mm): 0.64 | PDY (mm): 2.1 | PDX (mm): 3.1 | Grade: PC9070T | Stock: Yes
EL11-A60 PC5030T Type: External | Hand: Left | Pitch (mm): 0.5~1.5 | Threads per inch (TPI): 48~16 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Corner radius RE (mm): 0.05 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC5030T | Stock: Yes
EL11-A60 PC3030T Type: External | Hand: Left | Pitch (mm): 0.5~1.5 | Threads per inch (TPI): 48~16 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Corner radius RE (mm): 0.05 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC3030T | Stock: Yes
EL16-A60 PC5030T Type: External | Hand: Left | Pitch (mm): 0.5~1.5 | Threads per inch (TPI): 48~16 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Corner radius RE (mm): 0.05 | PDY (mm): 0.8 | PDX (mm): PDY | Grade: PC5030T | Stock: Yes
EL16-A60 PC3030T Type: External | Hand: Left | Pitch (mm): 0.5~1.5 | Threads per inch (TPI): 48~16 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Corner radius RE (mm): 0.05 | PDY (mm): 0.8 | PDX (mm): PDY | Grade: PC3030T | Stock: Yes
EL16-G60 PC5030T Type: External | Hand: Left | Pitch (mm): 1.75~3.0 | Threads per inch (TPI): 14~8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Corner radius RE (mm): 0.27 | PDY (mm): 1.2 | PDX (mm): 1.7 | Grade: PC5030T | Stock: Yes
EL16-G60 PC3030T Type: External | Hand: Left | Pitch (mm): 1.75~3.0 | Threads per inch (TPI): 14~8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Corner radius RE (mm): 0.27 | PDY (mm): 1.2 | PDX (mm): 1.7 | Grade: PC3030T | Stock: Yes
EL16-AG60 PC5030T Type: External | Hand: Left | Pitch (mm): 0.5~3.0 | Threads per inch (TPI): 48~8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Corner radius RE (mm): 0.08 | PDY (mm): 1.2 | PDX (mm): 1.7 | Grade: PC5030T | Stock: Yes
EL16-AG60 PC3030T Type: External | Hand: Left | Pitch (mm): 0.5~3.0 | Threads per inch (TPI): 48~8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Corner radius RE (mm): 0.08 | PDY (mm): 1.2 | PDX (mm): 1.7 | Grade: PC3030T | Stock: Yes
EL22-N60 PC5030T Type: External | Hand: Left | Pitch (mm): 3.5~5.0 | Threads per inch (TPI): 7~5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Corner radius RE (mm): 0.53 | PDY (mm): 1.7 | PDX (mm): 2.5 | Grade: PC5030T | Stock: Yes
EL22-N60 PC3030T Type: External | Hand: Left | Pitch (mm): 3.5~5.0 | Threads per inch (TPI): 7~5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Corner radius RE (mm): 0.53 | PDY (mm): 1.7 | PDX (mm): 2.5 | Grade: PC3030T | Stock: Yes
EL27-Q60 PC5030T Type: External | Hand: Left | Pitch (mm): 5.5~6.0 | Threads per inch (TPI): 4.5~4 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Corner radius RE (mm): 0.64 | PDY (mm): 2.1 | PDX (mm): 3.1 | Grade: PC5030T | Stock: Yes
EL27-Q60 PC3030T Type: External | Hand: Left | Pitch (mm): 5.5~6.0 | Threads per inch (TPI): 4.5~4 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Corner radius RE (mm): 0.64 | PDY (mm): 2.1 | PDX (mm): 3.1 | Grade: PC3030T | Stock: Yes
Threading InsertsKorloy
29 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Threading Insert Partial Profile 60° External

Brand Korloy·Threading Inserts

Available part numbers (29)

ER11-A60 PC5030T, ER11-A60 PC3030T, ER11-A60 PC9070T, ER16-A60 PC5030T, ER16-A60 PC3030T, ER16-A60 PC9070T, ER16-G60 PC5030T, ER16-G60 PC3030T, ER16-AG60 PC5030T, ER16-AG60 PC3030T + 19 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ER11-A60 PC5030TType: External | Hand: Right | Pitch (mm): 0.5~1.5 | Threads per inch (TPI): 48~16 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Corner radius RE (mm): 0.05 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC5030T | Stock: Yes
ER11-A60 PC3030TType: External | Hand: Right | Pitch (mm): 0.5~1.5 | Threads per inch (TPI): 48~16 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Corner radius RE (mm): 0.05 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC3030T | Stock: Yes
ER11-A60 PC9070TType: External | Hand: Right | Pitch (mm): 0.5~1.5 | Threads per inch (TPI): 48~16 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Corner radius RE (mm): 0.05 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC9070T | Stock: Yes
ER16-A60 PC5030TType: External | Hand: Right | Pitch (mm): 0.5~1.5 | Threads per inch (TPI): 48~16 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Corner radius RE (mm): 0.05 | PDY (mm): 0.8 | PDX (mm): PDY | Grade: PC5030T | Stock: Yes
ER16-A60 PC3030TType: External | Hand: Right | Pitch (mm): 0.5~1.5 | Threads per inch (TPI): 48~16 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Corner radius RE (mm): 0.05 | PDY (mm): 0.8 | PDX (mm): PDY | Grade: PC3030T | Stock: Yes
ER16-A60 PC9070TType: External | Hand: Right | Pitch (mm): 0.5~1.5 | Threads per inch (TPI): 48~16 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Corner radius RE (mm): 0.05 | PDY (mm): 0.8 | PDX (mm): PDY | Grade: PC9070T | Stock: Yes
ER16-G60 PC5030TType: External | Hand: Right | Pitch (mm): 1.75~3.0 | Threads per inch (TPI): 14~8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Corner radius RE (mm): 0.27 | PDY (mm): 1.2 | PDX (mm): 1.7 | Grade: PC5030T | Stock: Yes
ER16-G60 PC3030TType: External | Hand: Right | Pitch (mm): 1.75~3.0 | Threads per inch (TPI): 14~8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Corner radius RE (mm): 0.27 | PDY (mm): 1.2 | PDX (mm): 1.7 | Grade: PC3030T | Stock: Yes
ER16-AG60 PC5030TType: External | Hand: Right | Pitch (mm): 0.5~3.0 | Threads per inch (TPI): 48~8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Corner radius RE (mm): 0.08 | PDY (mm): 1.2 | PDX (mm): 1.7 | Grade: PC5030T | Stock: Yes
ER16-AG60 PC3030TType: External | Hand: Right | Pitch (mm): 0.5~3.0 | Threads per inch (TPI): 48~8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Corner radius RE (mm): 0.08 | PDY (mm): 1.2 | PDX (mm): 1.7 | Grade: PC3030T | Stock: Yes
ER16-AG60 PC9070TType: External | Hand: Right | Pitch (mm): 0.5~3.0 | Threads per inch (TPI): 48~8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Corner radius RE (mm): 0.08 | PDY (mm): 1.2 | PDX (mm): 1.7 | Grade: PC9070T | Stock: Yes
ER22-N60 PC5030TType: External | Hand: Right | Pitch (mm): 3.5~5.0 | Threads per inch (TPI): 7~5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Corner radius RE (mm): 0.53 | PDY (mm): 1.7 | PDX (mm): 2.5 | Grade: PC5030T | Stock: Yes
ER22-N60 PC3030TType: External | Hand: Right | Pitch (mm): 3.5~5.0 | Threads per inch (TPI): 7~5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Corner radius RE (mm): 0.53 | PDY (mm): 1.7 | PDX (mm): 2.5 | Grade: PC3030T | Stock: Yes
ER22-N60 PC9070TType: External | Hand: Right | Pitch (mm): 3.5~5.0 | Threads per inch (TPI): 7~5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Corner radius RE (mm): 0.53 | PDY (mm): 1.7 | PDX (mm): 2.5 | Grade: PC9070T | Stock: Yes
ER27-Q60 PC5030TType: External | Hand: Right | Pitch (mm): 5.5~6.0 | Threads per inch (TPI): 4.5~4 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Corner radius RE (mm): 0.64 | PDY (mm): 2.1 | PDX (mm): 3.1 | Grade: PC5030T | Stock: Yes
ER27-Q60 PC3030TType: External | Hand: Right | Pitch (mm): 5.5~6.0 | Threads per inch (TPI): 4.5~4 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Corner radius RE (mm): 0.64 | PDY (mm): 2.1 | PDX (mm): 3.1 | Grade: PC3030T | Stock: Yes
ER27-Q60 PC9070TType: External | Hand: Right | Pitch (mm): 5.5~6.0 | Threads per inch (TPI): 4.5~4 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Corner radius RE (mm): 0.64 | PDY (mm): 2.1 | PDX (mm): 3.1 | Grade: PC9070T | Stock: Yes
EL11-A60 PC5030TType: External | Hand: Left | Pitch (mm): 0.5~1.5 | Threads per inch (TPI): 48~16 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Corner radius RE (mm): 0.05 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC5030T | Stock: Yes
EL11-A60 PC3030TType: External | Hand: Left | Pitch (mm): 0.5~1.5 | Threads per inch (TPI): 48~16 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Corner radius RE (mm): 0.05 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC3030T | Stock: Yes
EL16-A60 PC5030TType: External | Hand: Left | Pitch (mm): 0.5~1.5 | Threads per inch (TPI): 48~16 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Corner radius RE (mm): 0.05 | PDY (mm): 0.8 | PDX (mm): PDY | Grade: PC5030T | Stock: Yes
EL16-A60 PC3030TType: External | Hand: Left | Pitch (mm): 0.5~1.5 | Threads per inch (TPI): 48~16 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Corner radius RE (mm): 0.05 | PDY (mm): 0.8 | PDX (mm): PDY | Grade: PC3030T | Stock: Yes
EL16-G60 PC5030TType: External | Hand: Left | Pitch (mm): 1.75~3.0 | Threads per inch (TPI): 14~8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Corner radius RE (mm): 0.27 | PDY (mm): 1.2 | PDX (mm): 1.7 | Grade: PC5030T | Stock: Yes
EL16-G60 PC3030TType: External | Hand: Left | Pitch (mm): 1.75~3.0 | Threads per inch (TPI): 14~8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Corner radius RE (mm): 0.27 | PDY (mm): 1.2 | PDX (mm): 1.7 | Grade: PC3030T | Stock: Yes
EL16-AG60 PC5030TType: External | Hand: Left | Pitch (mm): 0.5~3.0 | Threads per inch (TPI): 48~8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Corner radius RE (mm): 0.08 | PDY (mm): 1.2 | PDX (mm): 1.7 | Grade: PC5030T | Stock: Yes
EL16-AG60 PC3030TType: External | Hand: Left | Pitch (mm): 0.5~3.0 | Threads per inch (TPI): 48~8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Corner radius RE (mm): 0.08 | PDY (mm): 1.2 | PDX (mm): 1.7 | Grade: PC3030T | Stock: Yes
EL22-N60 PC5030TType: External | Hand: Left | Pitch (mm): 3.5~5.0 | Threads per inch (TPI): 7~5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Corner radius RE (mm): 0.53 | PDY (mm): 1.7 | PDX (mm): 2.5 | Grade: PC5030T | Stock: Yes
EL22-N60 PC3030TType: External | Hand: Left | Pitch (mm): 3.5~5.0 | Threads per inch (TPI): 7~5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Corner radius RE (mm): 0.53 | PDY (mm): 1.7 | PDX (mm): 2.5 | Grade: PC3030T | Stock: Yes
EL27-Q60 PC5030TType: External | Hand: Left | Pitch (mm): 5.5~6.0 | Threads per inch (TPI): 4.5~4 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Corner radius RE (mm): 0.64 | PDY (mm): 2.1 | PDX (mm): 3.1 | Grade: PC5030T | Stock: Yes
EL27-Q60 PC3030TType: External | Hand: Left | Pitch (mm): 5.5~6.0 | Threads per inch (TPI): 4.5~4 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Corner radius RE (mm): 0.64 | PDY (mm): 2.1 | PDX (mm): 3.1 | Grade: PC3030T | Stock: Yes
