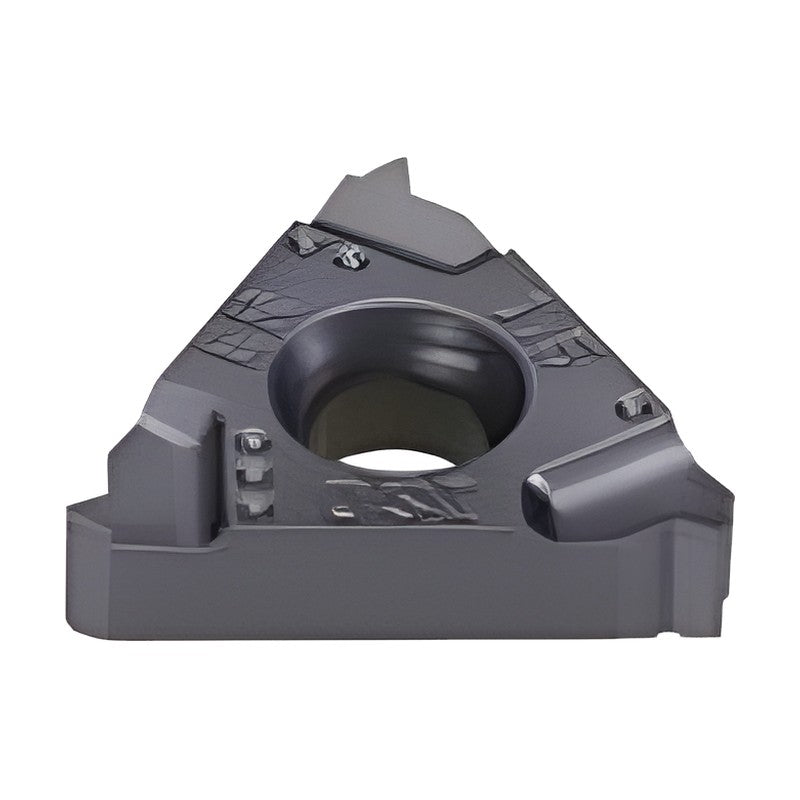

Korloy Threading Insert Partial Profile 60° External U Chip Breaker

Partial profile threading inserts for Partial profile 60° threads, external machining, with U chip breaker.

Key features

Laid-down 3-edge threading insert for external threading
U chip breaker variant
Precision-ground profile for high-quality thread surface finish
Right- and left-hand versions
Grades: PC5030T (universal PVD), PC3030T, PC9070T, PC5300
Applicable holders: ER(L)H / ER(L)H-C

Specifications

Thread standard	Partial profile 60°
Profile	Partial profile
Thread type	External
Insert type	Laid-down threading insert
Chip breaker	U

ERM16-AG60-U

Threading InsertsKorloy

1 product code available in this family

Sourced direct from KoreaExport-ready supplyCompetitive pricing

RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Threading Insert Partial Profile 60° External U Chip Breaker

Brand Korloy·Threading Inserts

Available part numbers (1)

ERM16-AG60-U

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →

View full details

Product codes & specifications

0 selected

RFQ List (0)

	Product code	Spec
	ERM16-AG60-U	Type: External \| Hand: Right \| Pitch (mm): 0.5~3.0 \| Threads per inch (TPI): 48~8 \| Inscribed circle IC (mm): 9.525 \| Insert size L (mm): 16 \| Corner radius RE (mm): 0.08 \| PDY (mm): 1.2 \| PDX (mm): 1.7 \| Grades: PC5030T / PC3030T / PC9070T / PC5300 \| Stock: Not marked as stock item

Need a different model, or a part not listed here? Send us your parts list →
