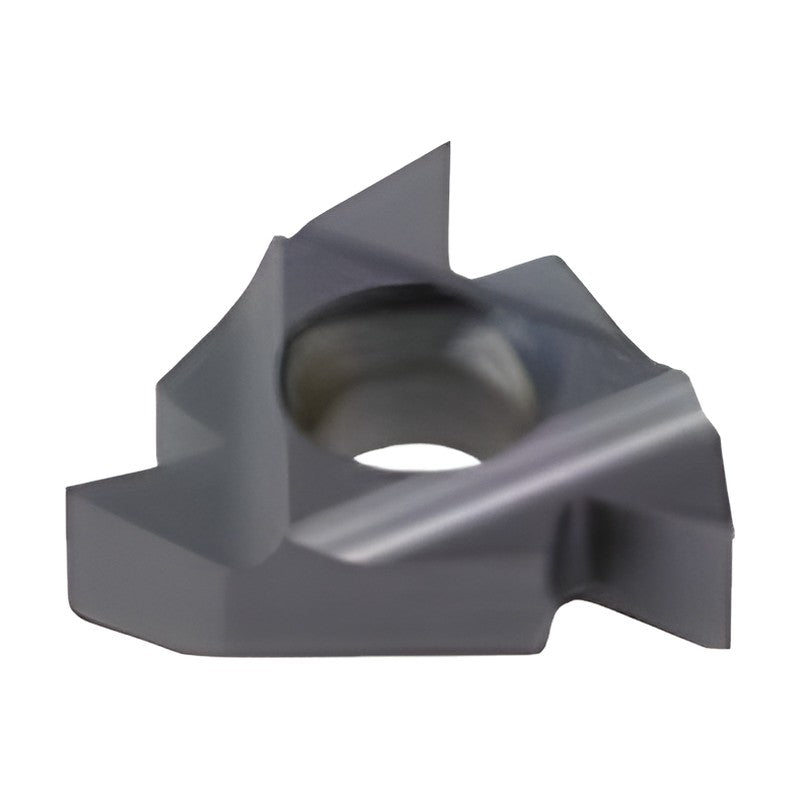

Korloy Threading Insert Stub ACME (STACME) External

Korloy Threading Insert Stub ACME (STACME) External

Full profile threading inserts for Stub ACME (STACME) threads, external machining.

Key features

  • Laid-down 3-edge threading insert for external threading
  • Precision-ground profile for high-quality thread surface finish
  • Right- and left-hand versions
  • Grades: PC5030T (universal PVD), PC3030T, PC9070T, PC5300
  • Applicable holders: ER(L)H / ER(L)H-C

Specifications

Thread standard Stub ACME (STACME)
Profile Full profile
Thread type External
Insert type Laid-down threading insert
Type External
Grades PC5030T / PC3030T / PC9070T / PC5300
Stock Not marked as stock item
ER11-16STACME Type: External | Hand: Right | Threads per inch (TPI): 16 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.60 | PDY (mm): 1.0 | PDX (mm): 1.0 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER16-16STACME Type: External | Hand: Right | Threads per inch (TPI): 16 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.60 | PDY (mm): 1.0 | PDX (mm): 1.0 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER16-14STACME Type: External | Hand: Right | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.67 | PDY (mm): 1.1 | PDX (mm): 1.1 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER16-12STACME Type: External | Hand: Right | Threads per inch (TPI): 12 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.76 | PDY (mm): 1.2 | PDX (mm): PDY | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER16-10STACME Type: External | Hand: Right | Threads per inch (TPI): 10 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.02 | PDY (mm): 1.2 | PDX (mm): 1.3 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER16-8STACME Type: External | Hand: Right | Threads per inch (TPI): 8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.21 | PDY (mm): 1.4 | PDX (mm): 1.5 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER16-6STACME Type: External | Hand: Right | Threads per inch (TPI): 6 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.52 | PDY (mm): 1.7 | PDX (mm): L | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER22-6STACME Type: External | Hand: Right | Threads per inch (TPI): 6 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 1.52 | PDY (mm): 1.7 | PDX (mm): 1.8 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER22-5STACME Type: External | Hand: Right | Threads per inch (TPI): 5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 1.78 | PDY (mm): 2.1 | PDX (mm): 2.3 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER27-4STACME Type: External | Hand: Right | Threads per inch (TPI): 4 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 2.16 | PDY (mm): 2.3 | PDX (mm): 2.4 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER27-3STACME Type: External | Hand: Right | Threads per inch (TPI): 3 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 2.79 | PDY (mm): 2.9 | PDX (mm): 2.9 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-16STACME Type: External | Hand: Left | Threads per inch (TPI): 16 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.60 | PDY (mm): 1.0 | PDX (mm): 1.0 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-16STACME Type: External | Hand: Left | Threads per inch (TPI): 16 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.60 | PDY (mm): 1.0 | PDX (mm): 1.0 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-14STACME Type: External | Hand: Left | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.67 | PDY (mm): 1.1 | PDX (mm): 1.1 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-12STACME Type: External | Hand: Left | Threads per inch (TPI): 12 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.76 | PDY (mm): 1.2 | PDX (mm): PDY | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-10STACME Type: External | Hand: Left | Threads per inch (TPI): 10 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.02 | PDY (mm): 1.2 | PDX (mm): 1.3 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-8STACME Type: External | Hand: Left | Threads per inch (TPI): 8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.21 | PDY (mm): 1.4 | PDX (mm): 1.5 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-6STACME Type: External | Hand: Left | Threads per inch (TPI): 6 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.52 | PDY (mm): 1.7 | PDX (mm): L | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL22-6STACME Type: External | Hand: Left | Threads per inch (TPI): 6 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 1.52 | PDY (mm): 1.7 | PDX (mm): 1.8 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL22-5STACME Type: External | Hand: Left | Threads per inch (TPI): 5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 1.78 | PDY (mm): 2.1 | PDX (mm): 2.3 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL27-4STACME Type: External | Hand: Left | Threads per inch (TPI): 4 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 2.16 | PDY (mm): 2.3 | PDX (mm): 2.4 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL27-3STACME Type: External | Hand: Left | Threads per inch (TPI): 3 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 2.79 | PDY (mm): 2.9 | PDX (mm): 2.9 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
Threading InsertsKorloy
22 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Threading Insert Stub ACME (STACME) External

Brand Korloy·Threading Inserts

Available part numbers (22)

ER11-16STACME, ER16-16STACME, ER16-14STACME, ER16-12STACME, ER16-10STACME, ER16-8STACME, ER16-6STACME, ER22-6STACME, ER22-5STACME, ER27-4STACME + 12 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ER11-16STACMEType: External | Hand: Right | Threads per inch (TPI): 16 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.60 | PDY (mm): 1.0 | PDX (mm): 1.0 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER16-16STACMEType: External | Hand: Right | Threads per inch (TPI): 16 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.60 | PDY (mm): 1.0 | PDX (mm): 1.0 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER16-14STACMEType: External | Hand: Right | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.67 | PDY (mm): 1.1 | PDX (mm): 1.1 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER16-12STACMEType: External | Hand: Right | Threads per inch (TPI): 12 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.76 | PDY (mm): 1.2 | PDX (mm): PDY | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER16-10STACMEType: External | Hand: Right | Threads per inch (TPI): 10 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.02 | PDY (mm): 1.2 | PDX (mm): 1.3 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER16-8STACMEType: External | Hand: Right | Threads per inch (TPI): 8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.21 | PDY (mm): 1.4 | PDX (mm): 1.5 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER16-6STACMEType: External | Hand: Right | Threads per inch (TPI): 6 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.52 | PDY (mm): 1.7 | PDX (mm): L | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER22-6STACMEType: External | Hand: Right | Threads per inch (TPI): 6 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 1.52 | PDY (mm): 1.7 | PDX (mm): 1.8 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER22-5STACMEType: External | Hand: Right | Threads per inch (TPI): 5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 1.78 | PDY (mm): 2.1 | PDX (mm): 2.3 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER27-4STACMEType: External | Hand: Right | Threads per inch (TPI): 4 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 2.16 | PDY (mm): 2.3 | PDX (mm): 2.4 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER27-3STACMEType: External | Hand: Right | Threads per inch (TPI): 3 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 2.79 | PDY (mm): 2.9 | PDX (mm): 2.9 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-16STACMEType: External | Hand: Left | Threads per inch (TPI): 16 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.60 | PDY (mm): 1.0 | PDX (mm): 1.0 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-16STACMEType: External | Hand: Left | Threads per inch (TPI): 16 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.60 | PDY (mm): 1.0 | PDX (mm): 1.0 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-14STACMEType: External | Hand: Left | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.67 | PDY (mm): 1.1 | PDX (mm): 1.1 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-12STACMEType: External | Hand: Left | Threads per inch (TPI): 12 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.76 | PDY (mm): 1.2 | PDX (mm): PDY | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-10STACMEType: External | Hand: Left | Threads per inch (TPI): 10 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.02 | PDY (mm): 1.2 | PDX (mm): 1.3 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-8STACMEType: External | Hand: Left | Threads per inch (TPI): 8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.21 | PDY (mm): 1.4 | PDX (mm): 1.5 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-6STACMEType: External | Hand: Left | Threads per inch (TPI): 6 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.52 | PDY (mm): 1.7 | PDX (mm): L | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL22-6STACMEType: External | Hand: Left | Threads per inch (TPI): 6 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 1.52 | PDY (mm): 1.7 | PDX (mm): 1.8 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL22-5STACMEType: External | Hand: Left | Threads per inch (TPI): 5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 1.78 | PDY (mm): 2.1 | PDX (mm): 2.3 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL27-4STACMEType: External | Hand: Left | Threads per inch (TPI): 4 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 2.16 | PDY (mm): 2.3 | PDX (mm): 2.4 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL27-3STACMEType: External | Hand: Left | Threads per inch (TPI): 3 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 2.79 | PDY (mm): 2.9 | PDX (mm): 2.9 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item

Need a different model, or a part not listed here? Send us your parts list →
