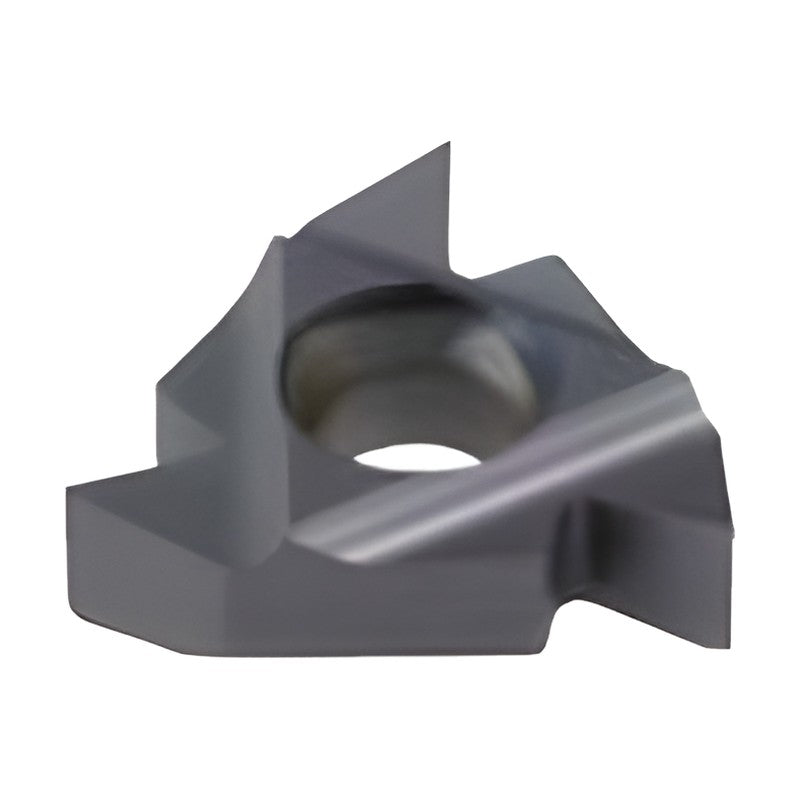

Korloy Threading Insert Trapez DIN103 (TR) External

Korloy Threading Insert Trapez DIN103 (TR) External

Full profile threading inserts for Trapez DIN103 (TR) threads, external machining.

Key features

  • Laid-down 3-edge threading insert for external threading
  • Precision-ground profile for high-quality thread surface finish
  • Right- and left-hand versions
  • Grades: PC5030T (universal PVD), PC3030T, PC9070T, PC5300
  • Applicable holders: ER(L)H / ER(L)H-C

Specifications

Thread standard Trapez DIN103 (TR)
Profile Full profile
Thread type External
Insert type Laid-down threading insert
Type External
ER11-1.5TR Type: External | Hand: Right | Pitch (mm): 1.5 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.90 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER16-1.5TR Type: External | Hand: Right | Pitch (mm): 1.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.90 | PDY (mm): 1.0 | PDX (mm): 1.1 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER16-2.0TR PC3030T Type: External | Hand: Right | Pitch (mm): 2.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.25 | PDY (mm): 1.1 | PDX (mm): PDY | Grade: PC3030T | Stock: Yes
ER16-3.0TR PC3030T Type: External | Hand: Right | Pitch (mm): 3.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.75 | PDY (mm): 1.3 | PDX (mm): 1.5 | Grade: PC3030T | Stock: Yes
ER16-3.0TR PC9070T Type: External | Hand: Right | Pitch (mm): 3.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.75 | PDY (mm): 1.3 | PDX (mm): 1.5 | Grade: PC9070T | Stock: Yes
ER22-4.0TR PC3030T Type: External | Hand: Right | Pitch (mm): 4.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.25 | PDY (mm): 1.7 | PDX (mm): 1.9 | Grade: PC3030T | Stock: Yes
ER22-4.0TR PC9070T Type: External | Hand: Right | Pitch (mm): 4.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.25 | PDY (mm): 1.7 | PDX (mm): 1.9 | Grade: PC9070T | Stock: Yes
ER22-5.0TR PC3030T Type: External | Hand: Right | Pitch (mm): 5.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.75 | PDY (mm): 2.1 | PDX (mm): L | Grade: PC3030T | Stock: Yes
ER22-5.0TR PC9070T Type: External | Hand: Right | Pitch (mm): 5.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.75 | PDY (mm): 2.1 | PDX (mm): L | Grade: PC9070T | Stock: Yes
ER27-6.0TR PC3030T Type: External | Hand: Right | Pitch (mm): 6.0 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.50 | PDY (mm): 2.3 | PDX (mm): 2.7 | Grade: PC3030T | Stock: Yes
ER27-6.0TR PC9070T Type: External | Hand: Right | Pitch (mm): 6.0 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.50 | PDY (mm): 2.3 | PDX (mm): 2.7 | Grade: PC9070T | Stock: Yes
EL11-1.5TR Type: External | Hand: Left | Pitch (mm): 1.5 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.90 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-1.5TR Type: External | Hand: Left | Pitch (mm): 1.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.90 | PDY (mm): 1.0 | PDX (mm): 1.1 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-2.0TR PC3030T Type: External | Hand: Left | Pitch (mm): 2.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.25 | PDY (mm): 1.1 | PDX (mm): PDY | Grade: PC3030T | Stock: Yes
EL16-3.0TR Type: External | Hand: Left | Pitch (mm): 3.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.75 | PDY (mm): 1.3 | PDX (mm): 1.5 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL22-4.0TR PC3030T Type: External | Hand: Left | Pitch (mm): 4.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.25 | PDY (mm): 1.7 | PDX (mm): 1.9 | Grade: PC3030T | Stock: Yes
EL22-5.0TR Type: External | Hand: Left | Pitch (mm): 5.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.75 | PDY (mm): 2.1 | PDX (mm): L | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL27-6.0TR Type: External | Hand: Left | Pitch (mm): 6.0 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.50 | PDY (mm): 2.3 | PDX (mm): 2.7 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
Threading InsertsKorloy
18 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Threading Insert Trapez DIN103 (TR) External

Brand Korloy·Threading Inserts

Available part numbers (18)

ER11-1.5TR, ER16-1.5TR, ER16-2.0TR PC3030T, ER16-3.0TR PC3030T, ER16-3.0TR PC9070T, ER22-4.0TR PC3030T, ER22-4.0TR PC9070T, ER22-5.0TR PC3030T, ER22-5.0TR PC9070T, ER27-6.0TR PC3030T + 8 more — see full table ↓

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ER11-1.5TRType: External | Hand: Right | Pitch (mm): 1.5 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.90 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER16-1.5TRType: External | Hand: Right | Pitch (mm): 1.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.90 | PDY (mm): 1.0 | PDX (mm): 1.1 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
ER16-2.0TR PC3030TType: External | Hand: Right | Pitch (mm): 2.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.25 | PDY (mm): 1.1 | PDX (mm): PDY | Grade: PC3030T | Stock: Yes
ER16-3.0TR PC3030TType: External | Hand: Right | Pitch (mm): 3.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.75 | PDY (mm): 1.3 | PDX (mm): 1.5 | Grade: PC3030T | Stock: Yes
ER16-3.0TR PC9070TType: External | Hand: Right | Pitch (mm): 3.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.75 | PDY (mm): 1.3 | PDX (mm): 1.5 | Grade: PC9070T | Stock: Yes
ER22-4.0TR PC3030TType: External | Hand: Right | Pitch (mm): 4.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.25 | PDY (mm): 1.7 | PDX (mm): 1.9 | Grade: PC3030T | Stock: Yes
ER22-4.0TR PC9070TType: External | Hand: Right | Pitch (mm): 4.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.25 | PDY (mm): 1.7 | PDX (mm): 1.9 | Grade: PC9070T | Stock: Yes
ER22-5.0TR PC3030TType: External | Hand: Right | Pitch (mm): 5.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.75 | PDY (mm): 2.1 | PDX (mm): L | Grade: PC3030T | Stock: Yes
ER22-5.0TR PC9070TType: External | Hand: Right | Pitch (mm): 5.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.75 | PDY (mm): 2.1 | PDX (mm): L | Grade: PC9070T | Stock: Yes
ER27-6.0TR PC3030TType: External | Hand: Right | Pitch (mm): 6.0 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.50 | PDY (mm): 2.3 | PDX (mm): 2.7 | Grade: PC3030T | Stock: Yes
ER27-6.0TR PC9070TType: External | Hand: Right | Pitch (mm): 6.0 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.50 | PDY (mm): 2.3 | PDX (mm): 2.7 | Grade: PC9070T | Stock: Yes
EL11-1.5TRType: External | Hand: Left | Pitch (mm): 1.5 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.90 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-1.5TRType: External | Hand: Left | Pitch (mm): 1.5 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.90 | PDY (mm): 1.0 | PDX (mm): 1.1 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-2.0TR PC3030TType: External | Hand: Left | Pitch (mm): 2.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.25 | PDY (mm): 1.1 | PDX (mm): PDY | Grade: PC3030T | Stock: Yes
EL16-3.0TRType: External | Hand: Left | Pitch (mm): 3.0 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.75 | PDY (mm): 1.3 | PDX (mm): 1.5 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL22-4.0TR PC3030TType: External | Hand: Left | Pitch (mm): 4.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.25 | PDY (mm): 1.7 | PDX (mm): 1.9 | Grade: PC3030T | Stock: Yes
EL22-5.0TRType: External | Hand: Left | Pitch (mm): 5.0 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.75 | PDY (mm): 2.1 | PDX (mm): L | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL27-6.0TRType: External | Hand: Left | Pitch (mm): 6.0 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.50 | PDY (mm): 2.3 | PDX (mm): 2.7 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
