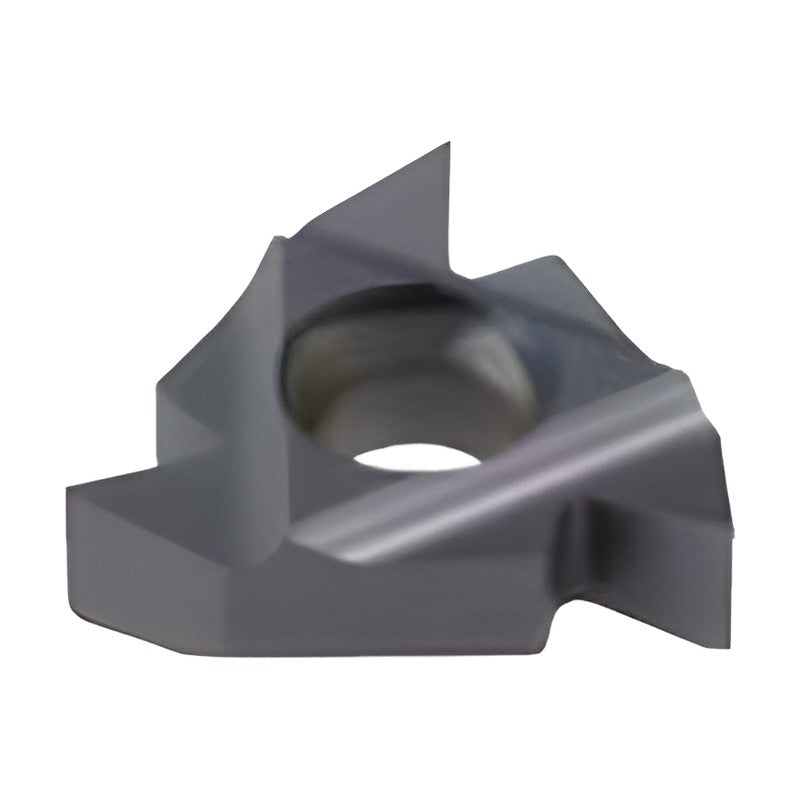

Korloy Threading Insert Whitworth (BSW, BSF, BSP, BSB) External

Korloy Threading Insert Whitworth (BSW, BSF, BSP, BSB) External

Full profile threading inserts for Whitworth (BSW, BSF, BSP, BSB) threads, external machining.

Key features

  • Laid-down 3-edge threading insert for external threading
  • Precision-ground profile for high-quality thread surface finish
  • Right- and left-hand versions
  • Grades: PC5030T (universal PVD), PC3030T, PC9070T, PC5300
  • Applicable holders: ER(L)H / ER(L)H-C

Specifications

Thread standard Whitworth (BSW, BSF, BSP, BSB)
Profile Full profile
Thread type External
Insert type Laid-down threading insert
Type External
ER11-72W PC3030T Type: External | Hand: Right | Threads per inch (TPI): 72 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.23 | PDY (mm): 0.7 | PDX (mm): 0.4 | Grade: PC3030T | Stock: Yes
ER11-60W PC3030T Type: External | Hand: Right | Threads per inch (TPI): 60 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.27 | PDY (mm): 0.7 | PDX (mm): 0.4 | Grade: PC3030T | Stock: Yes
ER11-56W PC3030T Type: External | Hand: Right | Threads per inch (TPI): 56 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.29 | PDY (mm): 0.7 | PDX (mm): 0.4 | Grade: PC3030T | Stock: Yes
ER11-48W PC3030T Type: External | Hand: Right | Threads per inch (TPI): 48 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.34 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC3030T | Stock: Yes
ER11-40W PC3030T Type: External | Hand: Right | Threads per inch (TPI): 40 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.41 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC3030T | Stock: Yes
ER11-36W PC3030T Type: External | Hand: Right | Threads per inch (TPI): 36 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.45 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC3030T | Stock: Yes
ER11-32W PC3030T Type: External | Hand: Right | Threads per inch (TPI): 32 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.51 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC3030T | Stock: Yes
ER11-28W PC5030T Type: External | Hand: Right | Threads per inch (TPI): 28 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.58 | PDY (mm): 0.6 | PDX (mm): 0.7 | Grade: PC5030T | Stock: Yes
ER11-28W PC3030T Type: External | Hand: Right | Threads per inch (TPI): 28 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.58 | PDY (mm): 0.6 | PDX (mm): 0.7 | Grade: PC3030T | Stock: Yes
ER11-26W PC3030T Type: External | Hand: Right | Threads per inch (TPI): 26 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.63 | PDY (mm): 0.7 | PDX (mm): 0.8 | Grade: PC3030T | Stock: Yes
ER11-24W PC3030T Type: External | Hand: Right | Threads per inch (TPI): 24 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.68 | PDY (mm): 0.7 | PDX (mm): 0.8 | Grade: PC3030T | Stock: Yes
ER11-22W PC3030T Type: External | Hand: Right | Threads per inch (TPI): 22 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.74 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC3030T | Stock: Yes
ER11-20W PC3030T Type: External | Hand: Right | Threads per inch (TPI): 20 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.81 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC3030T | Stock: Yes
ER11-19W PC5030T Type: External | Hand: Right | Threads per inch (TPI): 19 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.86 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grade: PC5030T | Stock: Yes
ER11-19W PC3030T Type: External | Hand: Right | Threads per inch (TPI): 19 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.86 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grade: PC3030T | Stock: Yes
ER11-18W PC3030T Type: External | Hand: Right | Threads per inch (TPI): 18 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.90 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grade: PC3030T | Stock: Yes
ER11-16W PC3030T Type: External | Hand: Right | Threads per inch (TPI): 16 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.02 | PDY (mm): 0.9 | PDX (mm): 1.1 | Grade: PC3030T | Stock: Yes
ER11-14W PC5030T Type: External | Hand: Right | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.16 | PDY (mm): 1.0 | PDX (mm): 1.2 | Grade: PC5030T | Stock: Yes
ER16-72W PC3030T Type: External | Hand: Right | Threads per inch (TPI): 72 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.23 | PDY (mm): 0.7 | PDX (mm): 0.4 | Grade: PC3030T | Stock: Yes
ER16-60W PC3030T Type: External | Hand: Right | Threads per inch (TPI): 60 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.27 | PDY (mm): 0.7 | PDX (mm): 0.4 | Grade: PC3030T | Stock: Yes
ER16-56W PC3030T Type: External | Hand: Right | Threads per inch (TPI): 56 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.29 | PDY (mm): 0.7 | PDX (mm): 0.4 | Grade: PC3030T | Stock: Yes
ER16-48W PC3030T Type: External | Hand: Right | Threads per inch (TPI): 48 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.34 | PDY (mm): 0.6 | PDX (mm): PDY | Grade: PC3030T | Stock: Yes
ER16-40W PC5030T Type: External | Hand: Right | Threads per inch (TPI): 40 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.41 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
ER16-40W PC3030T Type: External | Hand: Right | Threads per inch (TPI): 40 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.41 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC3030T | Stock: Yes
ER16-36W PC5030T Type: External | Hand: Right | Threads per inch (TPI): 36 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.45 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
ER16-36W PC3030T Type: External | Hand: Right | Threads per inch (TPI): 36 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.45 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC3030T | Stock: Yes
ER16-32W PC5030T Type: External | Hand: Right | Threads per inch (TPI): 32 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.51 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grade: PC5030T | Stock: Yes
ER16-30W PC3030T Type: External | Hand: Right | Threads per inch (TPI): 30 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.55 | PDY (mm): 0.6 | PDX (mm): 0.7 | Grade: PC3030T | Stock: Yes
ER16-28W PC5030T Type: External | Hand: Right | Threads per inch (TPI): 28 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.58 | PDY (mm): 0.6 | PDX (mm): 0.7 | Grade: PC5030T | Stock: Yes
ER16-28W PC3030T Type: External | Hand: Right | Threads per inch (TPI): 28 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.58 | PDY (mm): 0.6 | PDX (mm): 0.7 | Grade: PC3030T | Stock: Yes
ER16-28W PC9070T Type: External | Hand: Right | Threads per inch (TPI): 28 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.58 | PDY (mm): 0.6 | PDX (mm): 0.7 | Grade: PC9070T | Stock: Yes
ER16-26W PC5030T Type: External | Hand: Right | Threads per inch (TPI): 26 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.63 | PDY (mm): 0.7 | PDX (mm): 0.8 | Grade: PC5030T | Stock: Yes
ER16-26W PC3030T Type: External | Hand: Right | Threads per inch (TPI): 26 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.63 | PDY (mm): 0.7 | PDX (mm): 0.8 | Grade: PC3030T | Stock: Yes
ER16-24W PC5030T Type: External | Hand: Right | Threads per inch (TPI): 24 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.68 | PDY (mm): 0.7 | PDX (mm): 0.8 | Grade: PC5030T | Stock: Yes
ER16-24W PC3030T Type: External | Hand: Right | Threads per inch (TPI): 24 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.68 | PDY (mm): 0.7 | PDX (mm): 0.8 | Grade: PC3030T | Stock: Yes
ER16-22W PC5030T Type: External | Hand: Right | Threads per inch (TPI): 22 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.74 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC5030T | Stock: Yes
ER16-22W PC3030T Type: External | Hand: Right | Threads per inch (TPI): 22 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.74 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC3030T | Stock: Yes
ER16-20W PC5030T Type: External | Hand: Right | Threads per inch (TPI): 20 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.81 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC5030T | Stock: Yes
ER16-20W PC3030T Type: External | Hand: Right | Threads per inch (TPI): 20 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.81 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC3030T | Stock: Yes
ER16-19W PC5030T Type: External | Hand: Right | Threads per inch (TPI): 19 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.86 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grade: PC5030T | Stock: Yes
ER16-19W PC3030T Type: External | Hand: Right | Threads per inch (TPI): 19 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.86 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grade: PC3030T | Stock: Yes
ER16-19W PC9070T Type: External | Hand: Right | Threads per inch (TPI): 19 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.86 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grade: PC9070T | Stock: Yes
ER16-18W PC5030T Type: External | Hand: Right | Threads per inch (TPI): 18 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.90 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grade: PC5030T | Stock: Yes
ER16-18W PC3030T Type: External | Hand: Right | Threads per inch (TPI): 18 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.90 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grade: PC3030T | Stock: Yes
ER16-16W PC5030T Type: External | Hand: Right | Threads per inch (TPI): 16 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.02 | PDY (mm): 0.9 | PDX (mm): 1.1 | Grade: PC5030T | Stock: Yes
ER16-16W PC3030T Type: External | Hand: Right | Threads per inch (TPI): 16 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.02 | PDY (mm): 0.9 | PDX (mm): 1.1 | Grade: PC3030T | Stock: Yes
ER16-14W PC5030T Type: External | Hand: Right | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.16 | PDY (mm): 1.0 | PDX (mm): 1.2 | Grade: PC5030T | Stock: Yes
ER16-14W PC3030T Type: External | Hand: Right | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.16 | PDY (mm): 1.0 | PDX (mm): 1.2 | Grade: PC3030T | Stock: Yes
ER16-14W PC9070T Type: External | Hand: Right | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.16 | PDY (mm): 1.0 | PDX (mm): 1.2 | Grade: PC9070T | Stock: Yes
ER16-12W PC5030T Type: External | Hand: Right | Threads per inch (TPI): 12 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.36 | PDY (mm): 1.1 | PDX (mm): 1.4 | Grade: PC5030T | Stock: Yes
ER16-12W PC3030T Type: External | Hand: Right | Threads per inch (TPI): 12 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.36 | PDY (mm): 1.1 | PDX (mm): 1.4 | Grade: PC3030T | Stock: Yes
ER16-11W PC5030T Type: External | Hand: Right | Threads per inch (TPI): 11 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.48 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC5030T | Stock: Yes
ER16-11W PC3030T Type: External | Hand: Right | Threads per inch (TPI): 11 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.48 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC3030T | Stock: Yes
ER16-11W PC9070T Type: External | Hand: Right | Threads per inch (TPI): 11 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.48 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC9070T | Stock: Yes
ER16-10W PC5030T Type: External | Hand: Right | Threads per inch (TPI): 10 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.63 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC5030T | Stock: Yes
ER16-10W PC3030T Type: External | Hand: Right | Threads per inch (TPI): 10 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.63 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC3030T | Stock: Yes
ER16-9W PC5030T Type: External | Hand: Right | Threads per inch (TPI): 9 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.81 | PDY (mm): 1.2 | PDX (mm): 1.7 | Grade: PC5030T | Stock: Yes
ER16-9W PC3030T Type: External | Hand: Right | Threads per inch (TPI): 9 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.81 | PDY (mm): 1.2 | PDX (mm): 1.7 | Grade: PC3030T | Stock: Yes
ER16-8W PC5030T Type: External | Hand: Right | Threads per inch (TPI): 8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 2.03 | PDY (mm): 1.2 | PDX (mm): 1.5 | Grade: PC5030T | Stock: Yes
ER16-8W PC3030T Type: External | Hand: Right | Threads per inch (TPI): 8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 2.03 | PDY (mm): 1.2 | PDX (mm): 1.5 | Grade: PC3030T | Stock: Yes
ER22-7W PC5030T Type: External | Hand: Right | Threads per inch (TPI): 7 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 3.32 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC5030T | Stock: Yes
ER22-7W PC3030T Type: External | Hand: Right | Threads per inch (TPI): 7 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 3.32 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC3030T | Stock: Yes
ER22-6W PC5030T Type: External | Hand: Right | Threads per inch (TPI): 6 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.71 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC5030T | Stock: Yes
ER22-6W PC3030T Type: External | Hand: Right | Threads per inch (TPI): 6 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.71 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC3030T | Stock: Yes
ER22-5W PC5030T Type: External | Hand: Right | Threads per inch (TPI): 5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 3.25 | PDY (mm): 1.7 | PDX (mm): 2.4 | Grade: PC5030T | Stock: Yes
ER22-5W PC3030T Type: External | Hand: Right | Threads per inch (TPI): 5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 3.25 | PDY (mm): 1.7 | PDX (mm): 2.4 | Grade: PC3030T | Stock: Yes
ER27-4.5W PC5030T Type: External | Hand: Right | Threads per inch (TPI): 4.5 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.61 | PDY (mm): 1.8 | PDX (mm): 2.6 | Grade: PC5030T | Stock: Yes
ER27-4.5W PC3030T Type: External | Hand: Right | Threads per inch (TPI): 4.5 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.61 | PDY (mm): 1.8 | PDX (mm): 2.6 | Grade: PC3030T | Stock: Yes
ER27-4W PC5030T Type: External | Hand: Right | Threads per inch (TPI): 4 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 4.07 | PDY (mm): 2.0 | PDX (mm): 2.9 | Grade: PC5030T | Stock: Yes
EL11-72W Type: External | Hand: Left | Threads per inch (TPI): 72 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.23 | PDY (mm): 0.7 | PDX (mm): 0.4 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-60W Type: External | Hand: Left | Threads per inch (TPI): 60 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.27 | PDY (mm): 0.7 | PDX (mm): 0.4 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-56W Type: External | Hand: Left | Threads per inch (TPI): 56 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.29 | PDY (mm): 0.7 | PDX (mm): 0.4 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-48W Type: External | Hand: Left | Threads per inch (TPI): 48 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.34 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-40W Type: External | Hand: Left | Threads per inch (TPI): 40 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.41 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-36W Type: External | Hand: Left | Threads per inch (TPI): 36 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.45 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-32W Type: External | Hand: Left | Threads per inch (TPI): 32 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.51 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-28W Type: External | Hand: Left | Threads per inch (TPI): 28 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.58 | PDY (mm): 0.6 | PDX (mm): 0.7 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-26W Type: External | Hand: Left | Threads per inch (TPI): 26 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.63 | PDY (mm): 0.7 | PDX (mm): 0.8 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-24W Type: External | Hand: Left | Threads per inch (TPI): 24 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.68 | PDY (mm): 0.7 | PDX (mm): 0.8 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-22W Type: External | Hand: Left | Threads per inch (TPI): 22 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.74 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-20W Type: External | Hand: Left | Threads per inch (TPI): 20 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.81 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-19W Type: External | Hand: Left | Threads per inch (TPI): 19 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.86 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-18W Type: External | Hand: Left | Threads per inch (TPI): 18 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 0.90 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-16W Type: External | Hand: Left | Threads per inch (TPI): 16 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.02 | PDY (mm): 0.9 | PDX (mm): 1.1 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL11-14W PC3030T Type: External | Hand: Left | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 6.35 | Insert size L (mm): 11 | Thread depth HMIN (mm): 1.16 | PDY (mm): 1.0 | PDX (mm): 1.2 | Grade: PC3030T | Stock: Yes
EL16-72W Type: External | Hand: Left | Threads per inch (TPI): 72 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.23 | PDY (mm): 0.7 | PDX (mm): 0.4 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-60W Type: External | Hand: Left | Threads per inch (TPI): 60 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.27 | PDY (mm): 0.7 | PDX (mm): 0.4 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-56W Type: External | Hand: Left | Threads per inch (TPI): 56 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.29 | PDY (mm): 0.7 | PDX (mm): 0.4 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-48W Type: External | Hand: Left | Threads per inch (TPI): 48 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.34 | PDY (mm): 0.6 | PDX (mm): PDY | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-40W Type: External | Hand: Left | Threads per inch (TPI): 40 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.41 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-36W Type: External | Hand: Left | Threads per inch (TPI): 36 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.45 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-32W Type: External | Hand: Left | Threads per inch (TPI): 32 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.51 | PDY (mm): 0.6 | PDX (mm): 0.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-30W Type: External | Hand: Left | Threads per inch (TPI): 30 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.55 | PDY (mm): 0.6 | PDX (mm): 0.7 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-28W Type: External | Hand: Left | Threads per inch (TPI): 28 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.58 | PDY (mm): 0.6 | PDX (mm): 0.7 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-26W Type: External | Hand: Left | Threads per inch (TPI): 26 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.63 | PDY (mm): 0.7 | PDX (mm): 0.8 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-24W Type: External | Hand: Left | Threads per inch (TPI): 24 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.68 | PDY (mm): 0.7 | PDX (mm): 0.8 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-22W Type: External | Hand: Left | Threads per inch (TPI): 22 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.74 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-20W PC5030T Type: External | Hand: Left | Threads per inch (TPI): 20 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.81 | PDY (mm): 0.8 | PDX (mm): 0.9 | Grade: PC5030T | Stock: Yes
EL16-19W PC5030T Type: External | Hand: Left | Threads per inch (TPI): 19 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.86 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grade: PC5030T | Stock: Yes
EL16-18W Type: External | Hand: Left | Threads per inch (TPI): 18 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 0.90 | PDY (mm): 0.8 | PDX (mm): 1.0 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-16W Type: External | Hand: Left | Threads per inch (TPI): 16 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.02 | PDY (mm): 0.9 | PDX (mm): 1.1 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-14W PC5030T Type: External | Hand: Left | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.16 | PDY (mm): 1.0 | PDX (mm): 1.2 | Grade: PC5030T | Stock: Yes
EL16-12W PC5030T Type: External | Hand: Left | Threads per inch (TPI): 12 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.36 | PDY (mm): 1.1 | PDX (mm): 1.4 | Grade: PC5030T | Stock: Yes
EL16-11W PC5030T Type: External | Hand: Left | Threads per inch (TPI): 11 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.48 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC5030T | Stock: Yes
EL16-10W Type: External | Hand: Left | Threads per inch (TPI): 10 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.63 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-9W Type: External | Hand: Left | Threads per inch (TPI): 9 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.81 | PDY (mm): 1.2 | PDX (mm): 1.7 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL16-8W Type: External | Hand: Left | Threads per inch (TPI): 8 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 2.03 | PDY (mm): 1.2 | PDX (mm): 1.5 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL22-7W Type: External | Hand: Left | Threads per inch (TPI): 7 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 3.32 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL22-6W PC3030T Type: External | Hand: Left | Threads per inch (TPI): 6 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 2.71 | PDY (mm): 1.6 | PDX (mm): 2.3 | Grade: PC3030T | Stock: Yes
EL22-5W Type: External | Hand: Left | Threads per inch (TPI): 5 | Inscribed circle IC (mm): 12.7 | Insert size L (mm): 22 | Thread depth HMIN (mm): 3.25 | PDY (mm): 1.7 | PDX (mm): 2.4 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL27-4.5W Type: External | Hand: Left | Threads per inch (TPI): 4.5 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 3.61 | PDY (mm): 1.8 | PDX (mm): 2.6 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
EL27-4W Type: External | Hand: Left | Threads per inch (TPI): 4 | Inscribed circle IC (mm): 15.875 | Insert size L (mm): 27 | Thread depth HMIN (mm): 4.07 | PDY (mm): 2.0 | PDX (mm): 2.9 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
