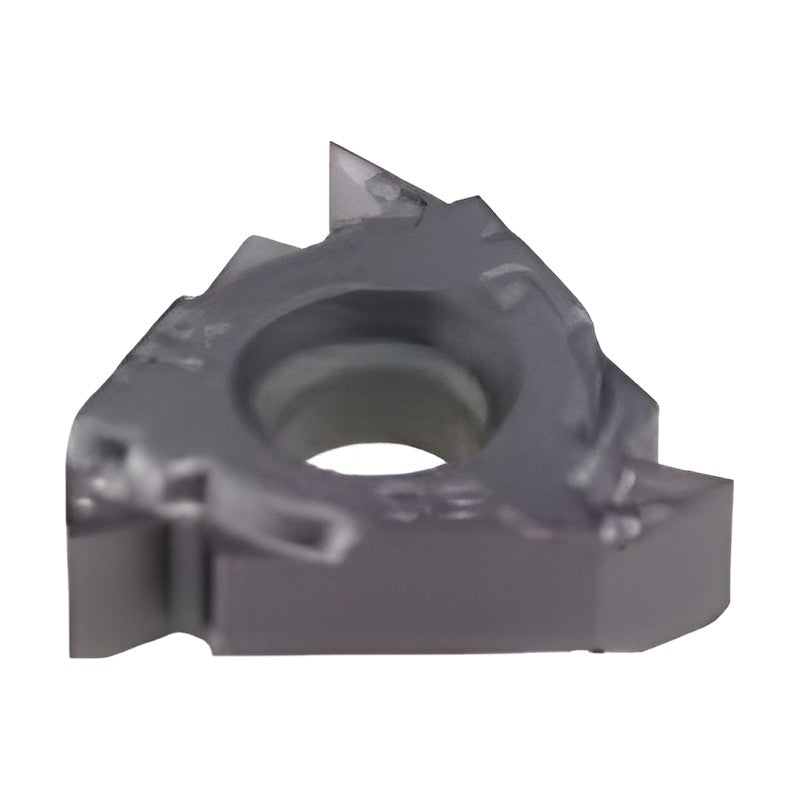

Korloy Threading Insert Whitworth Internal M Chip Breaker

Korloy Threading Insert Whitworth Internal M Chip Breaker

Full profile threading inserts for Whitworth threads, internal machining, with M chip breaker.

Key features

  • Laid-down 3-edge threading insert for internal threading
  • M chip breaker for improved chip control
  • Precision-ground profile for high-quality thread surface finish
  • Right- and left-hand versions
  • Grades: PC5030T (universal PVD), PC3030T, PC9070T, PC5300
  • Applicable holders: IR(L)H / IR(L)H-C

Specifications

Thread standard Whitworth
Profile Full profile
Thread type Internal
Insert type Laid-down threading insert
Chip breaker M
Type Internal
Hand Right
Inscribed circle IC (mm) 9.525
Insert size L (mm) 16
IRM16-14W Type: Internal | Hand: Right | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.16 | PDY (mm): 1.0 | PDX (mm): 1.2 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IRM16-11W PC3030T Type: Internal | Hand: Right | Threads per inch (TPI): 11 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.48 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC3030T | Stock: Yes
Threading InsertsKorloy
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Korloy Threading Insert Whitworth Internal M Chip Breaker

Brand Korloy·Threading Inserts

Available part numbers (2)

IRM16-14W, IRM16-11W PC3030T

How to order

Send the Korloy part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
IRM16-14WType: Internal | Hand: Right | Threads per inch (TPI): 14 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.16 | PDY (mm): 1.0 | PDX (mm): 1.2 | Grades: PC5030T / PC3030T / PC9070T / PC5300 | Stock: Not marked as stock item
IRM16-11W PC3030TType: Internal | Hand: Right | Threads per inch (TPI): 11 | Inscribed circle IC (mm): 9.525 | Insert size L (mm): 16 | Thread depth HMIN (mm): 1.48 | PDY (mm): 1.1 | PDX (mm): 1.5 | Grade: PC3030T | Stock: Yes
