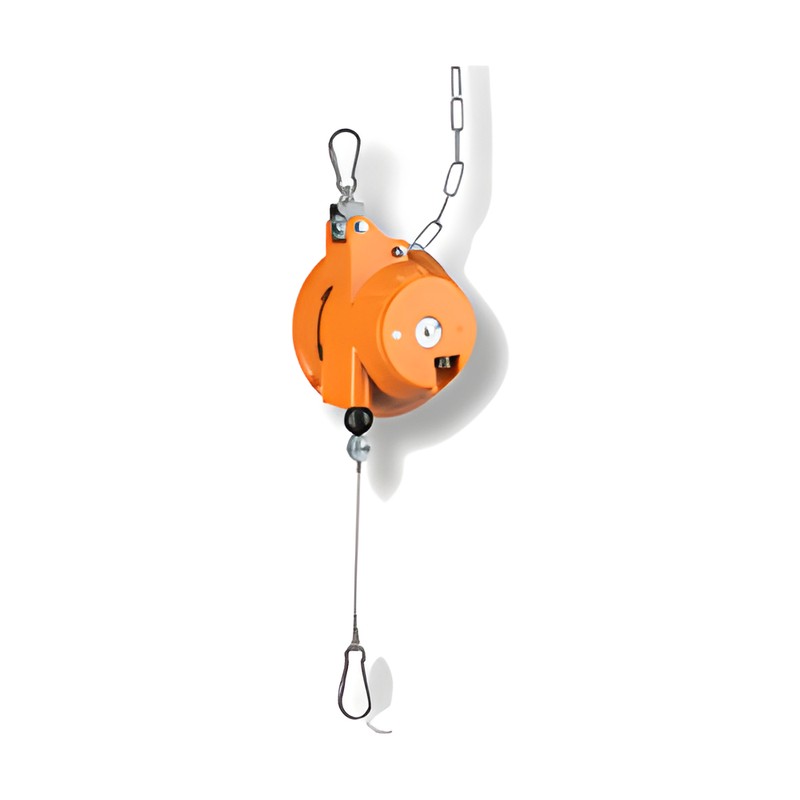

Kromer 7230/7231 Rust-Free Series 72 Balancer (3-21 kg)

Kromer 7230/7231 Rust-Free Series 72 Balancer (3-21 kg)

Rust-free edition of the Kromer series 72 balancer 7230/7231 for 3-21 kg, without or with automatic ratchet lock.

Key features

  • Flexible stainless steel cable and stainless snap hooks
  • Food-grade grease (NSF conform)
  • High-strength stainless steel safety chain
  • Impact- and abrasion-resistant plastic housing
  • Without (7230) or with (7231) automatic ratchet lock

Specifications

Load range 3.0-21.0 kg
Cable travel 2000 mm
Cable Flexible stainless steel
Lubricant Food-grade (NSF)
Lock 7230 without / 7231 with ratchet lock
Certifications GS, DIN 15112, CE
Edition Rust-free, Series 72
Source Kromer 72 Series Balancer Catalog (EN 09-2025) / Kromer Series 72 user manual
7230000131 Load range: 3.0-5.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 2.90 kg
7231000131 Load range: 3.0-5.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 3.10 kg
7230000132 Load range: 4.5-7.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 3.10 kg
7231000132 Load range: 4.5-7.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 3.30 kg
7230000133 Load range: 6.0-10.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 3.20 kg
7231000133 Load range: 6.0-10.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 3.40 kg
7230000134 Load range: 9.0-14.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 3.40 kg
7231000134 Load range: 9.0-14.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 3.60 kg
7230000135 Load range: 13.0-17.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 3.60 kg
7231000135 Load range: 13.0-17.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 3.80 kg
7230000136 Load range: 16.0-21.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 3.80 kg
7231000136 Load range: 16.0-21.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 4.00 kg
Spring BalancersKromer
12 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kromer 7230/7231 Rust-Free Series 72 Balancer (3-21 kg)

Brand Kromer·Spring Balancers

Available part numbers (12)

7230000131, 7231000131, 7230000132, 7231000132, 7230000133, 7231000133, 7230000134, 7231000134, 7230000135, 7231000135 + 2 more — see full table ↓

How to order

Send the Kromer part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
About the manufacturerKromer supplier profile →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
7230000131Load range: 3.0-5.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 2.90 kg
7231000131Load range: 3.0-5.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 3.10 kg
7230000132Load range: 4.5-7.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 3.10 kg
7231000132Load range: 4.5-7.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 3.30 kg
7230000133Load range: 6.0-10.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 3.20 kg
7231000133Load range: 6.0-10.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 3.40 kg
7230000134Load range: 9.0-14.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 3.40 kg
7231000134Load range: 9.0-14.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 3.60 kg
7230000135Load range: 13.0-17.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 3.60 kg
7231000135Load range: 13.0-17.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 3.80 kg
7230000136Load range: 16.0-21.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 3.80 kg
7231000136Load range: 16.0-21.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 4.00 kg
