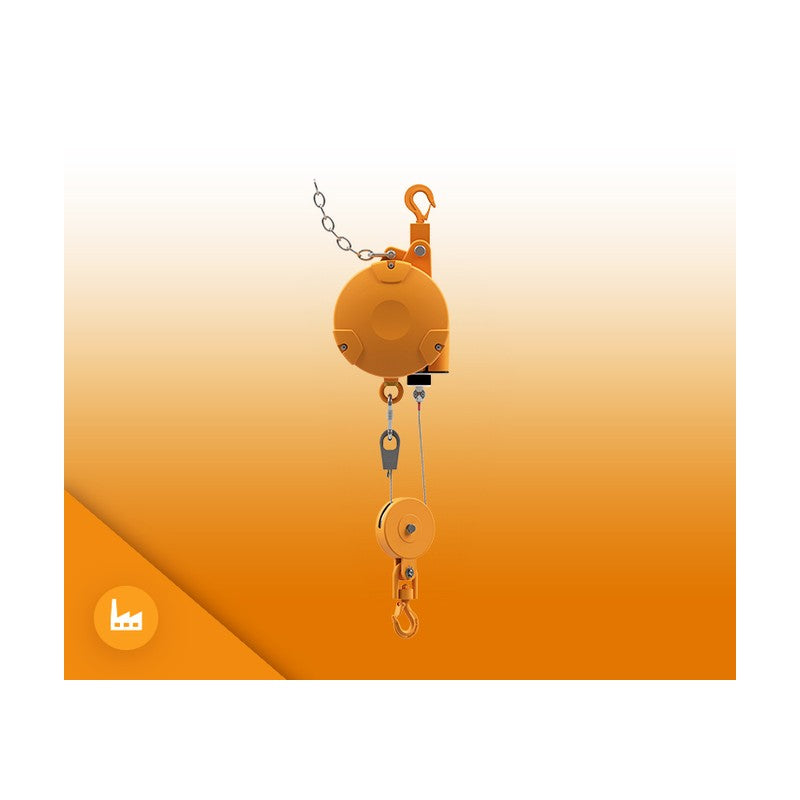

Kromer 8261 Spring Balancer (150-300 kg, 1500 mm Travel)

Kromer 8261 Spring Balancer (150-300 kg, 1500 mm Travel)

Kromer heavy-load spring balancer for 150-300 kg, supplied with deflection pulley for 1500 mm cable travel.

Key features

  • Cable travel with deflection pulley
  • Chill-cast aluminium housing and cable drum
  • Encapsulated high-strength suspension spring with freewheel protection
  • Infinitely variable load setting via endless screw
  • Cable overload protection via cable extension limit stop
  • GS-certified, DIN 15112

Specifications

Load range 150.0-300.0 kg
Cable travel 1500 mm
Housing Chill-cast aluminium
Cable High-strength steel, deflection pulley
Fall protection Safety expansion chain
Certifications GS, DIN 15112
Edition Industrial
Source Kromer website Type 8261 / Kromer General Catalog (EN 09-2026)
8261000001 Load range: 150.0-175.0 kg | Cable travel: 1500 mm | Weight: 41.1 kg | GTIN: 4262466532815
8261000002 Load range: 175.0-200.0 kg | Cable travel: 1500 mm | Weight: 42.0 kg | GTIN: 4262466532822
8261000003 Load range: 200.0-225.0 kg | Cable travel: 1500 mm | Weight: 43.5 kg | GTIN: 4262466532839
8261000004 Load range: 225.0-250.0 kg | Cable travel: 1500 mm | Weight: 45.1 kg | GTIN: 4262466532846
8261000005 Load range: 250.0-275.0 kg | Cable travel: 1500 mm | Weight: 46.5 kg | GTIN: 4262466532853
8261000006 Load range: 275.0-300.0 kg | Cable travel: 1500 mm | Weight: 47.8 kg | GTIN: 4262466532860
Spring BalancersKromer
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kromer 8261 Spring Balancer (150-300 kg, 1500 mm Travel)

Brand Kromer·Spring Balancers

Available part numbers (6)

8261000001, 8261000002, 8261000003, 8261000004, 8261000005, 8261000006

How to order

Send the Kromer part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
About the manufacturerKromer supplier profile →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
8261000001Load range: 150.0-175.0 kg | Cable travel: 1500 mm | Weight: 41.1 kg | GTIN: 4262466532815
8261000002Load range: 175.0-200.0 kg | Cable travel: 1500 mm | Weight: 42.0 kg | GTIN: 4262466532822
8261000003Load range: 200.0-225.0 kg | Cable travel: 1500 mm | Weight: 43.5 kg | GTIN: 4262466532839
8261000004Load range: 225.0-250.0 kg | Cable travel: 1500 mm | Weight: 45.1 kg | GTIN: 4262466532846
8261000005Load range: 250.0-275.0 kg | Cable travel: 1500 mm | Weight: 46.5 kg | GTIN: 4262466532853
8261000006Load range: 275.0-300.0 kg | Cable travel: 1500 mm | Weight: 47.8 kg | GTIN: 4262466532860
