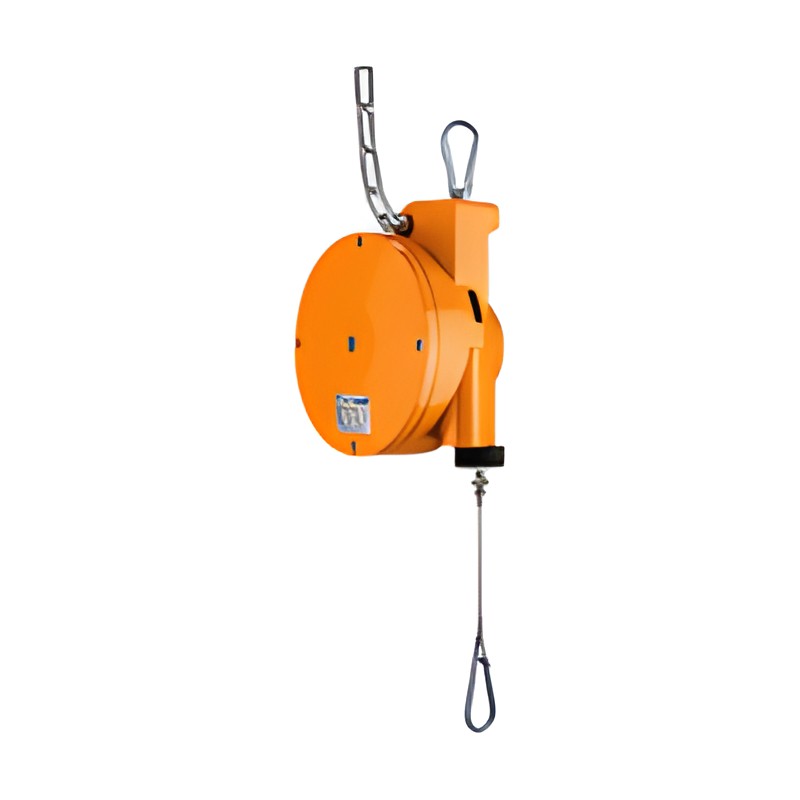

• Kromer 7235/7236 Series 72 Balancer (15-55 kg, 2000 mm Travel)
1 1

Kromer 7235/7236 Series 72 Balancer (15-55 kg, 2000 mm Travel)

Kromer 7235/7236 Series 72 Balancer (15-55 kg, 2000 mm Travel)

Kromer series 72 aluminium spring balancer for 15-55 kg, without (7235) or with (7236) automatic ratchet lock.

Key features

  • High-strength aluminium housing and cable drum
  • Embedded ball bearings
  • Worm gear load adjustment
  • Spring fracture safeguard; steel safety chain
  • Without (7235) or with (7236) automatic ratchet lock

Specifications

Load range 15.0-55.0 kg
Cable travel 2000 mm
Housing High-strength aluminium
Load setting Worm gear
Lock 7235 without / 7236 with ratchet lock
Certifications GS, DIN 15112, CE
Series 72
Source Kromer 72 Series Balancer Catalog (EN 09-2025) / Kromer Series 72 user manual
7235000001 Load range: 15.0-25.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 7.80 kg
7236000001 Load range: 15.0-25.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 8.90 kg
7235000002 Load range: 25.0-35.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 8.90 kg
7236000002 Load range: 25.0-35.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 10.00 kg
7235000003 Load range: 35.0-45.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 9.50 kg
7236000003 Load range: 35.0-45.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 10.60 kg
7235000004 Load range: 45.0-55.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 9.75 kg
7236000004 Load range: 45.0-55.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 10.85 kg
Spring BalancersKromer
8 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kromer 7235/7236 Series 72 Balancer (15-55 kg, 2000 mm Travel)

Brand Kromer·Spring Balancers

Available part numbers (8)

7235000001, 7236000001, 7235000002, 7236000002, 7235000003, 7236000003, 7235000004, 7236000004

How to order

Send the Kromer part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
About the manufacturerKromer supplier profile →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
7235000001Load range: 15.0-25.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 7.80 kg
7236000001Load range: 15.0-25.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 8.90 kg
7235000002Load range: 25.0-35.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 8.90 kg
7236000002Load range: 25.0-35.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 10.00 kg
7235000003Load range: 35.0-45.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 9.50 kg
7236000003Load range: 35.0-45.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 10.60 kg
7235000004Load range: 45.0-55.0 kg | Cable travel: 2000 mm | Ratchet lock: No | Weight: 9.75 kg
7236000004Load range: 45.0-55.0 kg | Cable travel: 2000 mm | Ratchet lock: Yes | Weight: 10.85 kg
