Kromer 8235 ATEX Balancer (15-55 kg, 2000 mm Travel)

Kromer 8235 ATEX Balancer (15-55 kg, 2000 mm Travel)

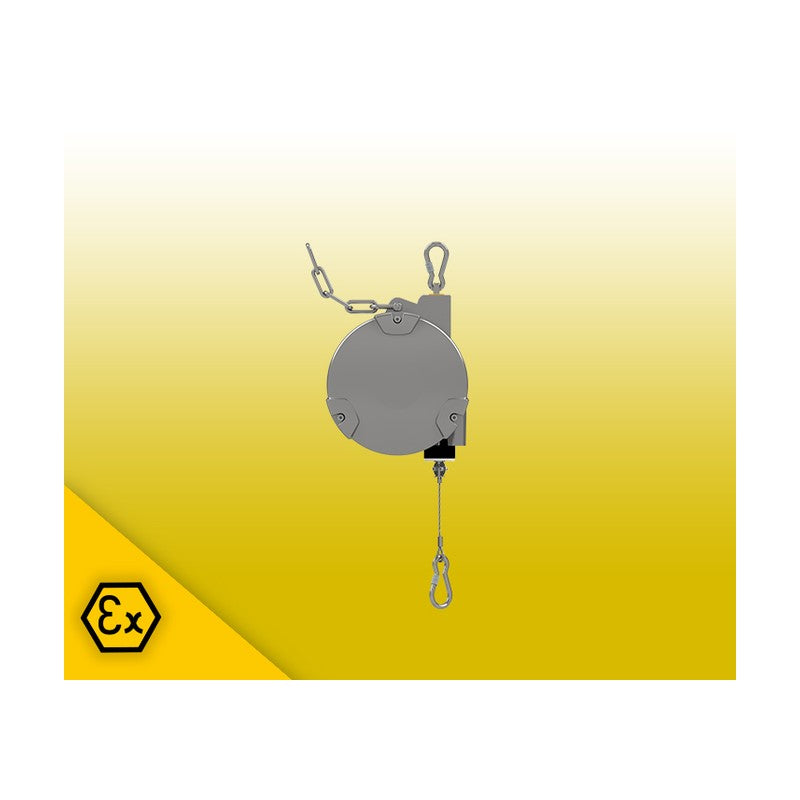

Kromer ATEX-edition spring balancer type 8235 for use in explosive gas (Zone 1) and dust (Zone 21) atmospheres, with integrated ground connection.

Key features

  • ATEX gas: II 2G Ex h IIB T6 Gb X
  • ATEX dust: II 2D Ex h IIIC T85°C Db X
  • Integrated grounding connection against static charging
  • Aluminium housing; cable drum of conductive plastic; stainless steel support cable
  • Sealed ball bearing and long-life spring
  • DIN 15112

Specifications

Load range 15.0-55.0 kg
Cable travel 2000 mm
ATEX gas II 2G Ex h IIB T6 Gb X
ATEX dust II 2D Ex h IIIC T85°C Db X
Housing Aluminium
Cable Stainless steel
Certifications ATEX, DIN 15112
Edition ATEX
Source Kromer website ATEX 8235 / Kromer General Catalog (EN 09-2026)
8235030001 Load range: 15.0-25.0 kg | Cable travel: 2000 mm | Weight: 8.0 kg | GTIN: 4262466530415
8235030002 Load range: 25.0-35.0 kg | Cable travel: 2000 mm | Weight: 9.1 kg | GTIN: 4262466530439
8235030003 Load range: 35.0-45.0 kg | Cable travel: 2000 mm | Weight: 9.7 kg | GTIN: 4262466530453
8235030004 Load range: 45.0-55.0 kg | Cable travel: 2000 mm | Weight: 9.9 kg | GTIN: 4262466530477
Spring BalancersKromer
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kromer 8235 ATEX Balancer (15-55 kg, 2000 mm Travel)

Brand Kromer·Spring Balancers

Available part numbers (4)

8235030001, 8235030002, 8235030003, 8235030004

How to order

Send the Kromer part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
About the manufacturerKromer supplier profile →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
8235030001Load range: 15.0-25.0 kg | Cable travel: 2000 mm | Weight: 8.0 kg | GTIN: 4262466530415
8235030002Load range: 25.0-35.0 kg | Cable travel: 2000 mm | Weight: 9.1 kg | GTIN: 4262466530439
8235030003Load range: 35.0-45.0 kg | Cable travel: 2000 mm | Weight: 9.7 kg | GTIN: 4262466530453
8235030004Load range: 45.0-55.0 kg | Cable travel: 2000 mm | Weight: 9.9 kg | GTIN: 4262466530477
