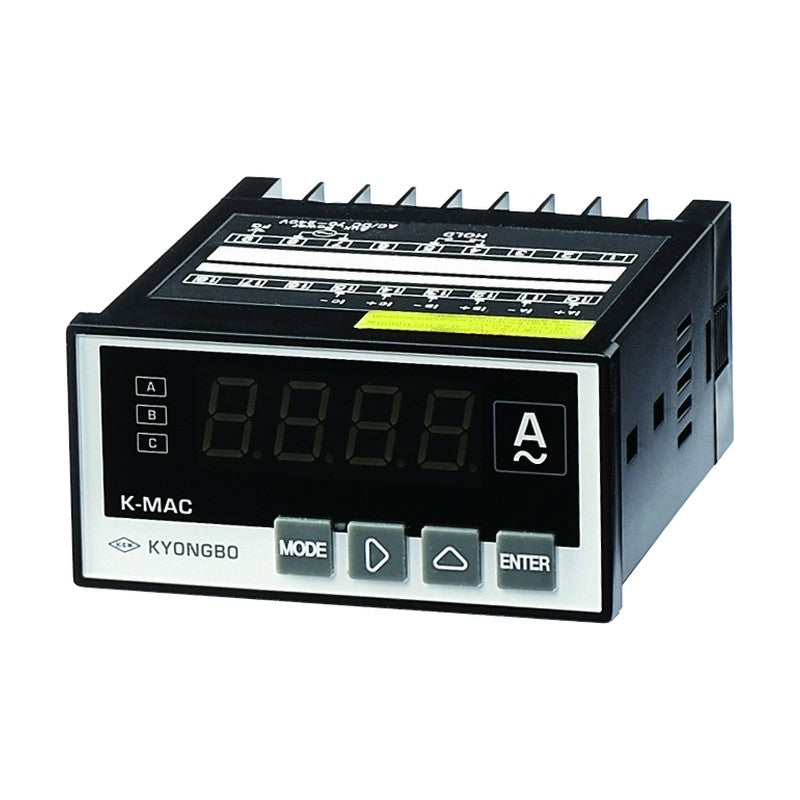

Kyongbo Electric 3-Phase AC Ammeter and Voltmeter K-MAC AA5 / AV6

Kyongbo Electric 3-Phase AC Ammeter and Voltmeter K-MAC AA5 / AV6

96 x 48 mm digital panel meter showing 3-phase AC current or voltage, with phase selection by simple key operation.

Key features

  • 0.56 inch 7-segment LED display, 9999 free range
  • Error correction function, 'HErr' shown on over-range input
  • Programmable display ratio
  • Wide auxiliary power range AC/DC 70-240 V
  • RS-485 interface for host system connection
  • 3-phase values checked by simple key operation

Specifications

Display 0.56 inch 7-segment LED
Accuracy +/-0.2% FS +/-2 digit
Aux. Power AC/DC 70-240 V (free voltage)
Size (WxHxD) 96 x 48 x 97 mm
Measuring Range 120% of rated input
Display Ratio Programmable
K-MAC AA5N Measuring Function: 3-phase AC current | Input: AC 1 A or AC 5 A (3-phase) | Version: Display only
K-MAC AA5C Measuring Function: 3-phase AC current | Input: AC 1 A or AC 5 A (3-phase) | Version: Output signal type | Output: Relay 2a, RS-485 Modbus RTU
K-MAC AV6N Measuring Function: 3-phase AC voltage | Input: AC 110, 190, 220, 380 or 600 V (3-phase) | Version: Display only
K-MAC AV6C Measuring Function: 3-phase AC voltage | Input: AC 110, 190, 220, 380 or 600 V (3-phase) | Version: Output signal type | Output: Relay 2a, RS-485 Modbus RTU
Digital Panel MetersKyongbo Electric
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric 3-Phase AC Ammeter and Voltmeter K-MAC AA5 / AV6

Brand Kyongbo Electric·Digital Panel Meters

Available part numbers (4)

K-MAC AA5N, K-MAC AA5C, K-MAC AV6N, K-MAC AV6C

How to order

Send the Kyongbo Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
K-MAC AA5NMeasuring Function: 3-phase AC current | Input: AC 1 A or AC 5 A (3-phase) | Version: Display only
K-MAC AA5CMeasuring Function: 3-phase AC current | Input: AC 1 A or AC 5 A (3-phase) | Version: Output signal type | Output: Relay 2a, RS-485 Modbus RTU
K-MAC AV6NMeasuring Function: 3-phase AC voltage | Input: AC 110, 190, 220, 380 or 600 V (3-phase) | Version: Display only
K-MAC AV6CMeasuring Function: 3-phase AC voltage | Input: AC 110, 190, 220, 380 or 600 V (3-phase) | Version: Output signal type | Output: Relay 2a, RS-485 Modbus RTU
