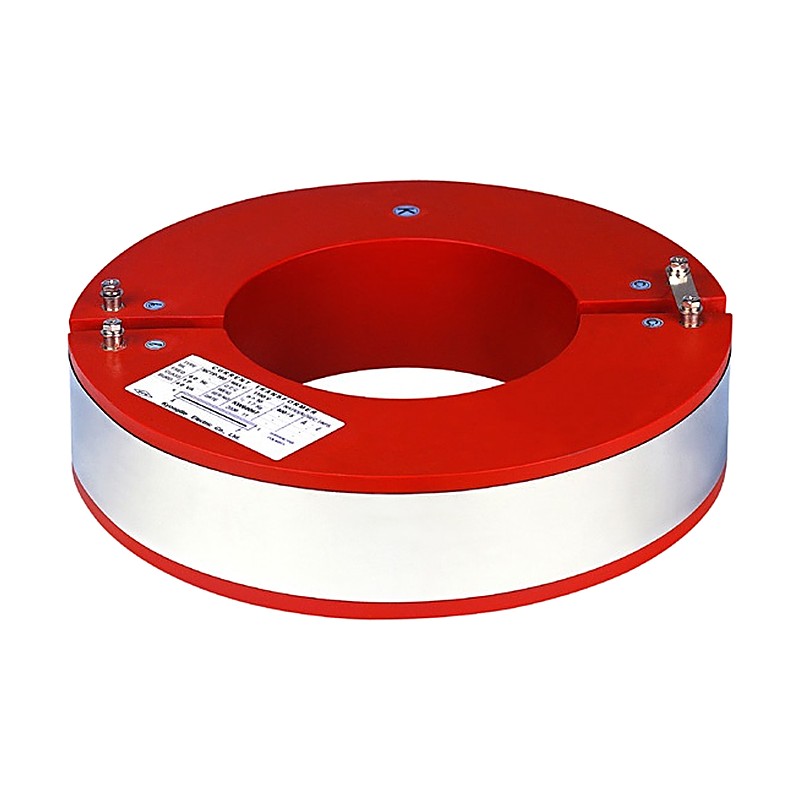

Kyongbo Electric Split Core Current Transformer SCT-160

Kyongbo Electric Split Core Current Transformer SCT-160

Split-core current transformer with 160 mm window for metering and protection, polyester molded, 0.6 kV insulation level, to IEEE C57.13, JEC 1201 and IEC 61869-2.

Key features

  • Split core for installation without disconnecting the conductor
  • For metering and protection
  • Insulation level 0.6 kV, BIL 10 kV full wave
  • Polyester molding

Specifications

Frequency 60 Hz (others on request)
Insulation Level 0.6 kV, BIL 10 kV full wave
SCT-160 Current Ratio: 100/5~3000/5 | Protection Class (IEEE): C10~C200 | Metering Class (IEEE): 0.3 (B-0.1~B-1.8) | Metering Class (JEC / IEC): 3.0 / 1.0 | Window: dia. 160 mm | Outer Diameter: 300 mm | Width: 70 mm | Weight: approx. 17 kg
Current TransformersKyongbo Electric
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric Split Core Current Transformer SCT-160

Brand Kyongbo Electric·Current Transformers

Available part numbers (1)

SCT-160

How to order

Send the Kyongbo Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SCT-160Current Ratio: 100/5~3000/5 | Protection Class (IEEE): C10~C200 | Metering Class (IEEE): 0.3 (B-0.1~B-1.8) | Metering Class (JEC / IEC): 3.0 / 1.0 | Window: dia. 160 mm | Outer Diameter: 300 mm | Width: 70 mm | Weight: approx. 17 kg
