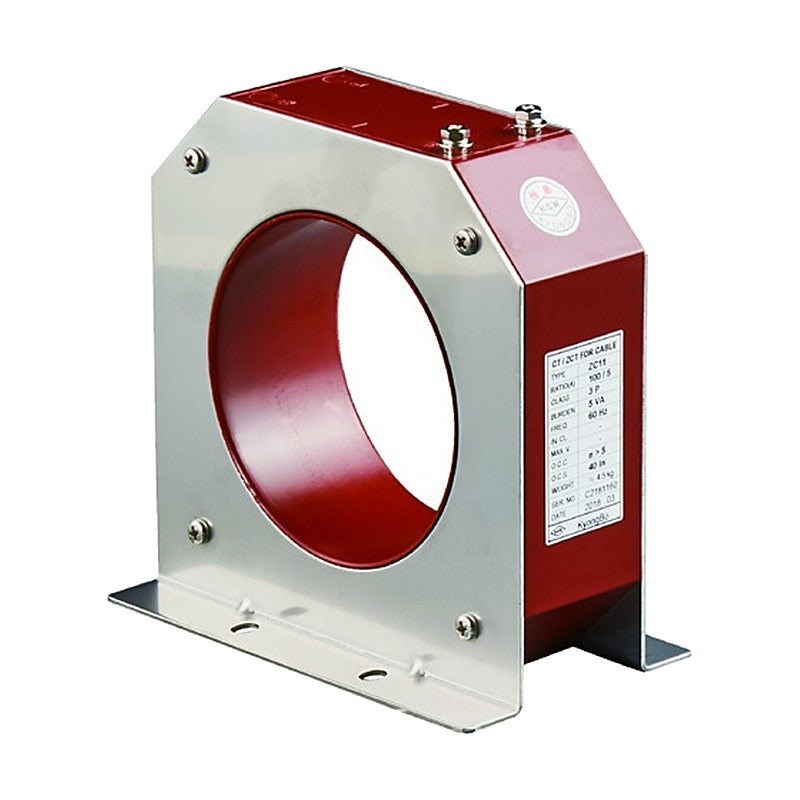

Kyongbo Electric Zero Phase Current Transformer ZC Series (5 A Secondary)

Kyongbo Electric Zero Phase Current Transformer ZC Series (5 A Secondary)

Cable-through zero phase current transformer (ZCT) with 5 A secondary for 300 A, 100 A or 50 A zero-phase primary current, polyester molded, to JEC 1201.

Key features

  • Cable-through window type
  • Polyester molding insulation
  • Over-current factor n>5
  • ZC40 not available for 50 A

Specifications

Standard JEC 1201
Frequency 60 Hz (others on request)
Zero-Phase Primary Current 300 A / 100 A / 50 A
Zero-Phase Secondary Current 5 A
Accuracy Class 3P
Rated Burden 15 VA (300 A) / 5 VA (100 A) / 2.5 VA (50 A)
Over-Current Factor n>5
ZC09 Window Diameter (mm): 95 | Width A (mm): 153 | Height C (mm): 156 | Depth E (mm): 58 | Base F (mm): 100 | Weight: approx. 4 kg
ZC11 Window Diameter (mm): 110 | Width A (mm): 170 | Height C (mm): 172 | Depth E (mm): 58 | Base F (mm): 100 | Weight: approx. 4.5 kg
ZC15 Window Diameter (mm): 150 | Width A (mm): 220 | Height C (mm): 222 | Depth E (mm): 55 | Base F (mm): 100 | Weight: approx. 6.5 kg
ZC20 Window Diameter (mm): 200 | Width A (mm): 282 | Height C (mm): 284 | Depth E (mm): 55 | Base F (mm): 100 | Weight: approx. 9 kg
ZC40 Window Diameter (mm): 400 | Width A (mm): 370 | Height C (mm): 50 | Weight: approx. 9 kg
Current TransformersKyongbo Electric
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric Zero Phase Current Transformer ZC Series (5 A Secondary)

Brand Kyongbo Electric·Current Transformers

Available part numbers (5)

ZC09, ZC11, ZC15, ZC20, ZC40

How to order

Send the Kyongbo Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
ZC09Window Diameter (mm): 95 | Width A (mm): 153 | Height C (mm): 156 | Depth E (mm): 58 | Base F (mm): 100 | Weight: approx. 4 kg
ZC11Window Diameter (mm): 110 | Width A (mm): 170 | Height C (mm): 172 | Depth E (mm): 58 | Base F (mm): 100 | Weight: approx. 4.5 kg
ZC15Window Diameter (mm): 150 | Width A (mm): 220 | Height C (mm): 222 | Depth E (mm): 55 | Base F (mm): 100 | Weight: approx. 6.5 kg
ZC20Window Diameter (mm): 200 | Width A (mm): 282 | Height C (mm): 284 | Depth E (mm): 55 | Base F (mm): 100 | Weight: approx. 9 kg
ZC40Window Diameter (mm): 400 | Width A (mm): 370 | Height C (mm): 50 | Weight: approx. 9 kg
