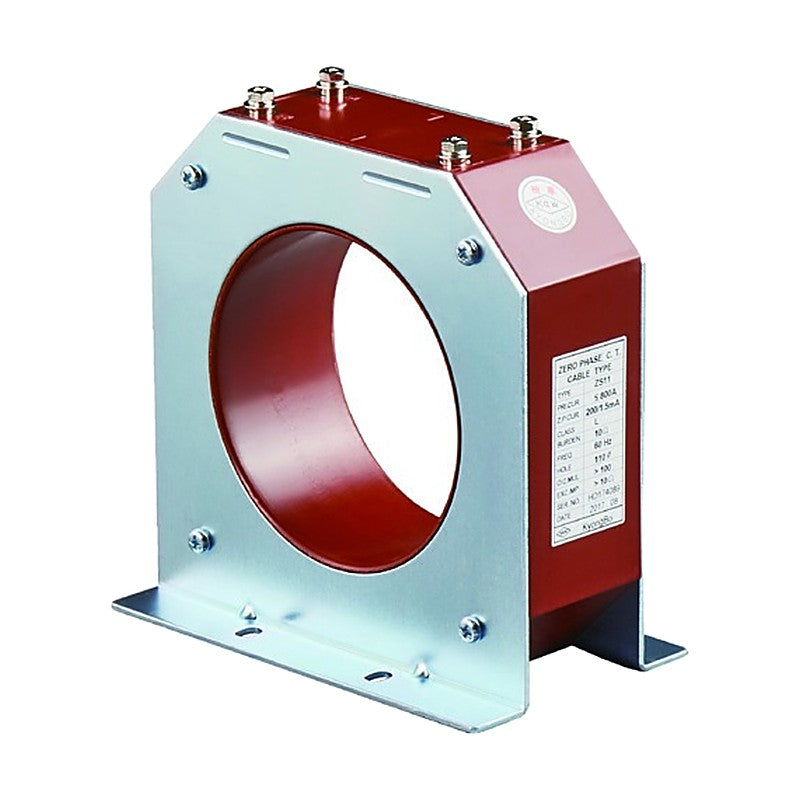

Kyongbo Electric Zero Phase Current Transformer ZS Series (200 mA / 1.5 mA)

Kyongbo Electric Zero Phase Current Transformer ZS Series (200 mA / 1.5 mA)

Cable-through zero phase current transformer (ZCT) with 200 mA / 1.5 mA zero-sequence rating and epoxy molding, to JEC 1201.

Key features

  • Cable-through window type
  • Epoxy molding insulation
  • Insulation level depends on the cable and bushing voltage used
  • L class and H class accuracy

Specifications

Standard JEC 1201
Frequency 50/60 Hz
Rated Zero-Sequence Current Primary 200 mA / Secondary 1.5 mA
Accuracy Class L class (1.0~2.0 mA), H class (1.2~1.8 mA), n>100
Rated Burden 10 ohm (PF 0.5 lag)
Insulation Epoxy molding
ZS06 Primary Current (A): 0~400 | Window Diameter (mm): 63 | Width A (mm): 117 | Height C (mm): 119 | Depth E (mm): 45 | Base F (mm): 90 | Weight: approx. 1.5 kg
ZS09 Primary Current (A): 0~600 | Window Diameter (mm): 95 | Width A (mm): 153 | Height C (mm): 156 | Depth E (mm): 58 | Base F (mm): 100 | Weight: approx. 2 kg
ZS11 Primary Current (A): 0~800 | Window Diameter (mm): 110 | Width A (mm): 170 | Height C (mm): 172 | Depth E (mm): 58 | Base F (mm): 100 | Weight: approx. 2.5 kg
ZS15 Primary Current (A): 0~1500 | Window Diameter (mm): 150 | Width A (mm): 220 | Height C (mm): 222 | Depth E (mm): 55 | Base F (mm): 100 | Weight: approx. 3.5 kg
ZS20 Primary Current (A): 0~2000 | Window Diameter (mm): 200 | Width A (mm): 282 | Height C (mm): 284 | Depth E (mm): 55 | Base F (mm): 100 | Weight: approx. 5.5 kg
ZS40 Primary Current (A): 0~4000 | Window Diameter (mm): 400 | Width A (mm): 370 | Height C (mm): 50 | Weight: approx. 9 kg
Current TransformersKyongbo Electric
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric Zero Phase Current Transformer ZS Series (200 mA / 1.5 mA)

Brand Kyongbo Electric·Current Transformers

Available part numbers (6)

ZS06, ZS09, ZS11, ZS15, ZS20, ZS40
