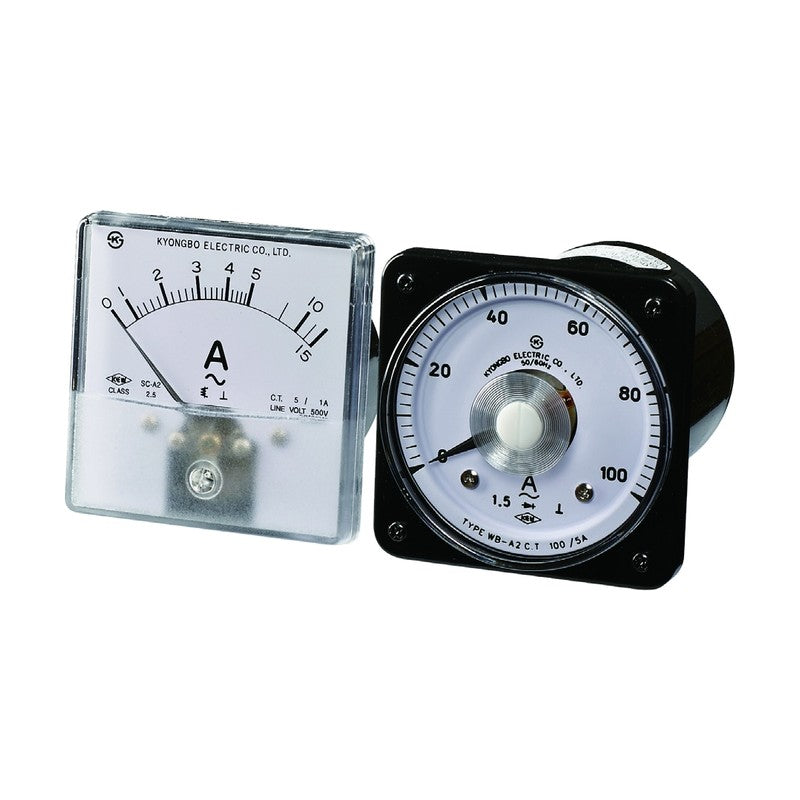

Kyongbo Electric AC Ammeter A2

Kyongbo Electric AC Ammeter A2

AC ammeter for direct connection or CT connection in square and wide angle cases.

Key features

  • Direct connection 1-30 A
  • CT connection CT ratio x 5 A or 1 A
  • Extended scale 200-500% (500% wide angle only)

Specifications

Case Color Black (Munsell N1.5)
Dimensions See catalog pages 324-325
Input AC 5 A or AC 1 A
Frequency 50/60 Hz
SC-A2 Size: 80 x 80 mm | Scale Form: Square | Operating Principle: Moving iron | Accuracy Class: 2.5% | Burden: 1.0 VA | Weight: approx. 230 g
SB-A2 Size: 100 x 84 mm | Scale Form: Square | Operating Principle: Moving iron | Accuracy Class: 1.5% | Burden: 1.0 VA | Weight: approx. 260 g
SA-A2 Size: 120 x 100 mm | Scale Form: Square | Operating Principle: Moving iron | Accuracy Class: 1.5% | Burden: 1.0 VA | Weight: approx. 310 g
WB-A2 Size: 80 x 80 mm | Scale Form: Wide angle | Operating Principle: Rectifier | Accuracy Class: 1.5% | Burden: 1.5 VA | Weight: approx. 380 g
WA-A2 Size: 110 x 110 mm | Scale Form: Wide angle | Operating Principle: Rectifier | Accuracy Class: 1.5% | Burden: 1.5 VA | Weight: approx. 510 g
Analog Panel MetersKyongbo Electric
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric AC Ammeter A2

Brand Kyongbo Electric·Analog Panel Meters

Available part numbers (5)

SC-A2, SB-A2, SA-A2, WB-A2, WA-A2

How to order

Send the Kyongbo Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SC-A2Size: 80 x 80 mm | Scale Form: Square | Operating Principle: Moving iron | Accuracy Class: 2.5% | Burden: 1.0 VA | Weight: approx. 230 g
SB-A2Size: 100 x 84 mm | Scale Form: Square | Operating Principle: Moving iron | Accuracy Class: 1.5% | Burden: 1.0 VA | Weight: approx. 260 g
SA-A2Size: 120 x 100 mm | Scale Form: Square | Operating Principle: Moving iron | Accuracy Class: 1.5% | Burden: 1.0 VA | Weight: approx. 310 g
WB-A2Size: 80 x 80 mm | Scale Form: Wide angle | Operating Principle: Rectifier | Accuracy Class: 1.5% | Burden: 1.5 VA | Weight: approx. 380 g
WA-A2Size: 110 x 110 mm | Scale Form: Wide angle | Operating Principle: Rectifier | Accuracy Class: 1.5% | Burden: 1.5 VA | Weight: approx. 510 g
