Kyongbo Electric AC Ammeter K-MAC AA Series

Kyongbo Electric AC Ammeter K-MAC AA Series

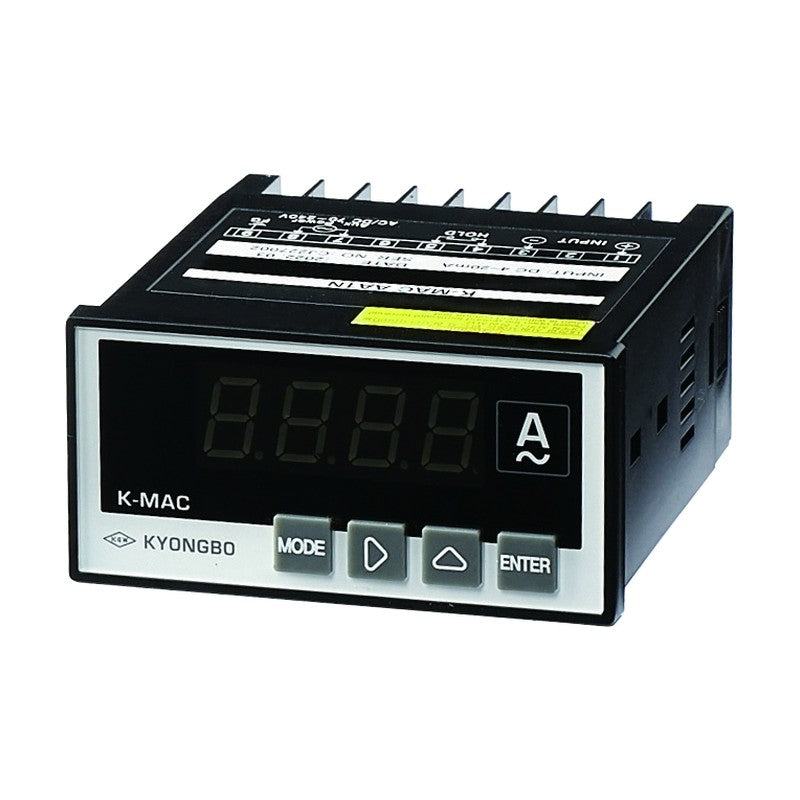

96 x 48 mm digital panel ac ammeter with 0.56 inch LED display for ac current measurement.

Key features

  • 0.56 inch 7-segment LED display, 9999 free range
  • Error correction function, 'HErr' shown on over-range input
  • Programmable display ratio
  • Wide auxiliary power range AC/DC 70-240 V
  • High/low relay outputs and various output signals (T models)
  • RS-485 interface for host system connection (T models)

Specifications

Display 0.56 inch 7-segment LED
Accuracy +/-0.2% FS +/-2 digit
Aux. Power AC/DC 70-240 V (free voltage)
Size (WxHxD) 96 x 48 x 97 mm
Measuring Range 120% of rated input
Display Ratio Programmable
K-MAC AA1N Measuring Function: AC current | Input: DC 4-20 mA | Version: Display only
K-MAC AA3N Measuring Function: AC current | Input: AC 1 A or AC 5 A | Version: Display only
K-MAC AA1T Measuring Function: AC current | Input: DC 4-20 mA | Version: Output signal type | Output: Relay 2a 5 A at AC 250 V / DC 30 V, DC 4-20 mA retransmission, RS-485 Modbus RTU 9600/19200 bps
K-MAC AA3T Measuring Function: AC current | Input: AC 1 A or AC 5 A | Version: Output signal type | Output: Relay 2a 5 A at AC 250 V / DC 30 V, DC 4-20 mA retransmission, RS-485 Modbus RTU 9600/19200 bps
Digital Panel MetersKyongbo Electric
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric AC Ammeter K-MAC AA Series

Brand Kyongbo Electric·Digital Panel Meters

Available part numbers (4)

K-MAC AA1N, K-MAC AA3N, K-MAC AA1T, K-MAC AA3T

How to order

Send the Kyongbo Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
K-MAC AA1NMeasuring Function: AC current | Input: DC 4-20 mA | Version: Display only
K-MAC AA3NMeasuring Function: AC current | Input: AC 1 A or AC 5 A | Version: Display only
K-MAC AA1TMeasuring Function: AC current | Input: DC 4-20 mA | Version: Output signal type | Output: Relay 2a 5 A at AC 250 V / DC 30 V, DC 4-20 mA retransmission, RS-485 Modbus RTU 9600/19200 bps
K-MAC AA3TMeasuring Function: AC current | Input: AC 1 A or AC 5 A | Version: Output signal type | Output: Relay 2a 5 A at AC 250 V / DC 30 V, DC 4-20 mA retransmission, RS-485 Modbus RTU 9600/19200 bps
