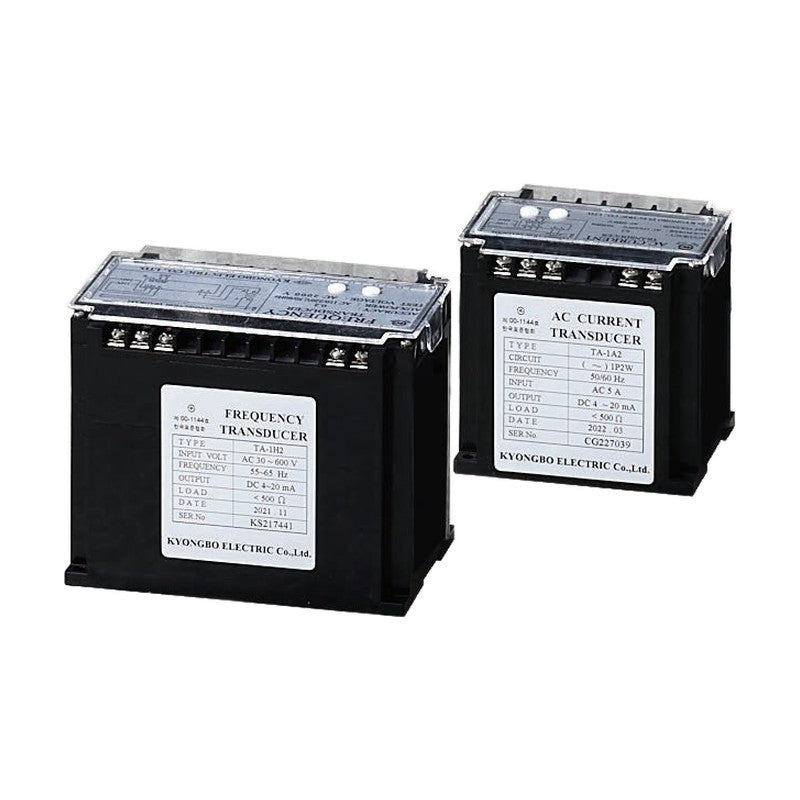

Kyongbo Electric AC Current Transducer TA / TV-A

Kyongbo Electric AC Current Transducer TA / TV-A

AC current transducer converting AC current to a proportional DC current or voltage signal for remote metering, recorders and control systems.

Key features

  • High accuracy
  • Quick response time
  • Low output ripple
  • Input and output fully insulated
  • Readily accessible span and zero adjustment
  • Order-made input, output, aux. power and frequency available

Specifications

Auxiliary Power AC 110 / 220 V
Frequency 50 / 60 Hz
Mounting DIN rail, ABS case
Accuracy 0.2% of span
Ripple 0.5% P-P of span
Response Time 0.4 s (0-99%)
TA-1A1 Circuit: 1P2W | Output Mode: DC current | Output: 0-1 mA | Load: < 10 kOhm | Rated Input: AC 5 A or 1 A | Burden: 1.0 VA/phase | Weight: approx. 480 g | Case: TS
TA-1A2 Circuit: 1P2W | Output Mode: DC current | Output: 4-20 mA | Load: < 500 Ohm | Rated Input: AC 5 A or 1 A | Burden: 1.0 VA/phase | Weight: approx. 480 g | Case: TS
TA-3A1 Circuit: 3P3W | Output Mode: DC current | Output: 0-1 mA | Load: < 10 kOhm | Rated Input: AC 5 A or 1 A | Burden: 1.0 VA/phase | Weight: approx. 780 g | Case: TL
TA-3A2 Circuit: 3P3W | Output Mode: DC current | Output: 4-20 mA | Load: < 500 Ohm | Rated Input: AC 5 A or 1 A | Burden: 1.0 VA/phase | Weight: approx. 780 g | Case: TL
TA-4A1 Circuit: 3P4W | Output Mode: DC current | Output: 0-1 mA | Load: < 10 kOhm | Rated Input: AC 5 A or 1 A | Burden: 1.0 VA/phase | Weight: approx. 780 g | Case: TL
TA-4A2 Circuit: 3P4W | Output Mode: DC current | Output: 4-20 mA | Load: < 500 Ohm | Rated Input: AC 5 A or 1 A | Burden: 1.0 VA/phase | Weight: approx. 780 g | Case: TL
TV-1A1 Circuit: 1P2W | Output Mode: DC voltage | Output: 0-1 V | Load: > 200 Ohm | Rated Input: AC 5 A or 1 A | Burden: 1.0 VA/phase | Weight: approx. 480 g | Case: TS
TV-1A2 Circuit: 1P2W | Output Mode: DC voltage | Output: 1-5 V | Load: > 1 kOhm | Rated Input: AC 5 A or 1 A | Burden: 1.0 VA/phase | Weight: approx. 480 g | Case: TS
TV-3A1 Circuit: 3P3W | Output Mode: DC voltage | Output: 0-1 V | Load: > 200 Ohm | Rated Input: AC 5 A or 1 A | Burden: 1.0 VA/phase | Weight: approx. 780 g | Case: TL
TV-3A2 Circuit: 3P3W | Output Mode: DC voltage | Output: 1-5 V | Load: > 1 kOhm | Rated Input: AC 5 A or 1 A | Burden: 1.0 VA/phase | Weight: approx. 780 g | Case: TL
TV-4A1 Circuit: 3P4W | Output Mode: DC voltage | Output: 0-1 V | Load: > 200 Ohm | Rated Input: AC 5 A or 1 A | Burden: 1.0 VA/phase | Weight: approx. 780 g | Case: TL
TV-4A2 Circuit: 3P4W | Output Mode: DC voltage | Output: 1-5 V | Load: > 1 kOhm | Rated Input: AC 5 A or 1 A | Burden: 1.0 VA/phase | Weight: approx. 780 g | Case: TL
TA-1A1T Circuit: 1P2W | Output Mode: DC current | Output: 0-1 mA | Load: < 10 kOhm | Rated Input: AC 5 A or 1 A | Sensing: True RMS (crest factor 1:1 to 3:1) | Burden: 1.0 VA | Weight: approx. 480 g | Case: TS
TA-1A2T Circuit: 1P2W | Output Mode: DC current | Output: 4-20 mA | Load: < 500 Ohm | Rated Input: AC 5 A or 1 A | Sensing: True RMS (crest factor 1:1 to 3:1) | Burden: 1.0 VA | Weight: approx. 480 g | Case: TS
TV-1A1T Circuit: 1P2W | Output Mode: DC voltage | Output: 0-1 V | Load: > 200 Ohm | Rated Input: AC 5 A or 1 A | Sensing: True RMS (crest factor 1:1 to 3:1) | Burden: 1.0 VA | Weight: approx. 480 g | Case: TS
TV-1A2T Circuit: 1P2W | Output Mode: DC voltage | Output: 1-5 V | Load: > 1 kOhm | Rated Input: AC 5 A or 1 A | Sensing: True RMS (crest factor 1:1 to 3:1) | Burden: 1.0 VA | Weight: approx. 480 g | Case: TS
Power TransducersKyongbo Electric
16 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric AC Current Transducer TA / TV-A

Brand Kyongbo Electric·Power Transducers

Available part numbers (16)

TA-1A1, TA-1A2, TA-3A1, TA-3A2, TA-4A1, TA-4A2, TV-1A1, TV-1A2, TV-3A1, TV-3A2 + 6 more — see full table ↓

How to order

Send the Kyongbo Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
TA-1A1Circuit: 1P2W | Output Mode: DC current | Output: 0-1 mA | Load: < 10 kOhm | Rated Input: AC 5 A or 1 A | Burden: 1.0 VA/phase | Weight: approx. 480 g | Case: TS
TA-1A2Circuit: 1P2W | Output Mode: DC current | Output: 4-20 mA | Load: < 500 Ohm | Rated Input: AC 5 A or 1 A | Burden: 1.0 VA/phase | Weight: approx. 480 g | Case: TS
TA-3A1Circuit: 3P3W | Output Mode: DC current | Output: 0-1 mA | Load: < 10 kOhm | Rated Input: AC 5 A or 1 A | Burden: 1.0 VA/phase | Weight: approx. 780 g | Case: TL
TA-3A2Circuit: 3P3W | Output Mode: DC current | Output: 4-20 mA | Load: < 500 Ohm | Rated Input: AC 5 A or 1 A | Burden: 1.0 VA/phase | Weight: approx. 780 g | Case: TL
TA-4A1Circuit: 3P4W | Output Mode: DC current | Output: 0-1 mA | Load: < 10 kOhm | Rated Input: AC 5 A or 1 A | Burden: 1.0 VA/phase | Weight: approx. 780 g | Case: TL
TA-4A2Circuit: 3P4W | Output Mode: DC current | Output: 4-20 mA | Load: < 500 Ohm | Rated Input: AC 5 A or 1 A | Burden: 1.0 VA/phase | Weight: approx. 780 g | Case: TL
TV-1A1Circuit: 1P2W | Output Mode: DC voltage | Output: 0-1 V | Load: > 200 Ohm | Rated Input: AC 5 A or 1 A | Burden: 1.0 VA/phase | Weight: approx. 480 g | Case: TS
TV-1A2Circuit: 1P2W | Output Mode: DC voltage | Output: 1-5 V | Load: > 1 kOhm | Rated Input: AC 5 A or 1 A | Burden: 1.0 VA/phase | Weight: approx. 480 g | Case: TS
TV-3A1Circuit: 3P3W | Output Mode: DC voltage | Output: 0-1 V | Load: > 200 Ohm | Rated Input: AC 5 A or 1 A | Burden: 1.0 VA/phase | Weight: approx. 780 g | Case: TL
TV-3A2Circuit: 3P3W | Output Mode: DC voltage | Output: 1-5 V | Load: > 1 kOhm | Rated Input: AC 5 A or 1 A | Burden: 1.0 VA/phase | Weight: approx. 780 g | Case: TL
TV-4A1Circuit: 3P4W | Output Mode: DC voltage | Output: 0-1 V | Load: > 200 Ohm | Rated Input: AC 5 A or 1 A | Burden: 1.0 VA/phase | Weight: approx. 780 g | Case: TL
TV-4A2Circuit: 3P4W | Output Mode: DC voltage | Output: 1-5 V | Load: > 1 kOhm | Rated Input: AC 5 A or 1 A | Burden: 1.0 VA/phase | Weight: approx. 780 g | Case: TL
TA-1A1TCircuit: 1P2W | Output Mode: DC current | Output: 0-1 mA | Load: < 10 kOhm | Rated Input: AC 5 A or 1 A | Sensing: True RMS (crest factor 1:1 to 3:1) | Burden: 1.0 VA | Weight: approx. 480 g | Case: TS
TA-1A2TCircuit: 1P2W | Output Mode: DC current | Output: 4-20 mA | Load: < 500 Ohm | Rated Input: AC 5 A or 1 A | Sensing: True RMS (crest factor 1:1 to 3:1) | Burden: 1.0 VA | Weight: approx. 480 g | Case: TS
TV-1A1TCircuit: 1P2W | Output Mode: DC voltage | Output: 0-1 V | Load: > 200 Ohm | Rated Input: AC 5 A or 1 A | Sensing: True RMS (crest factor 1:1 to 3:1) | Burden: 1.0 VA | Weight: approx. 480 g | Case: TS
TV-1A2TCircuit: 1P2W | Output Mode: DC voltage | Output: 1-5 V | Load: > 1 kOhm | Rated Input: AC 5 A or 1 A | Sensing: True RMS (crest factor 1:1 to 3:1) | Burden: 1.0 VA | Weight: approx. 480 g | Case: TS
