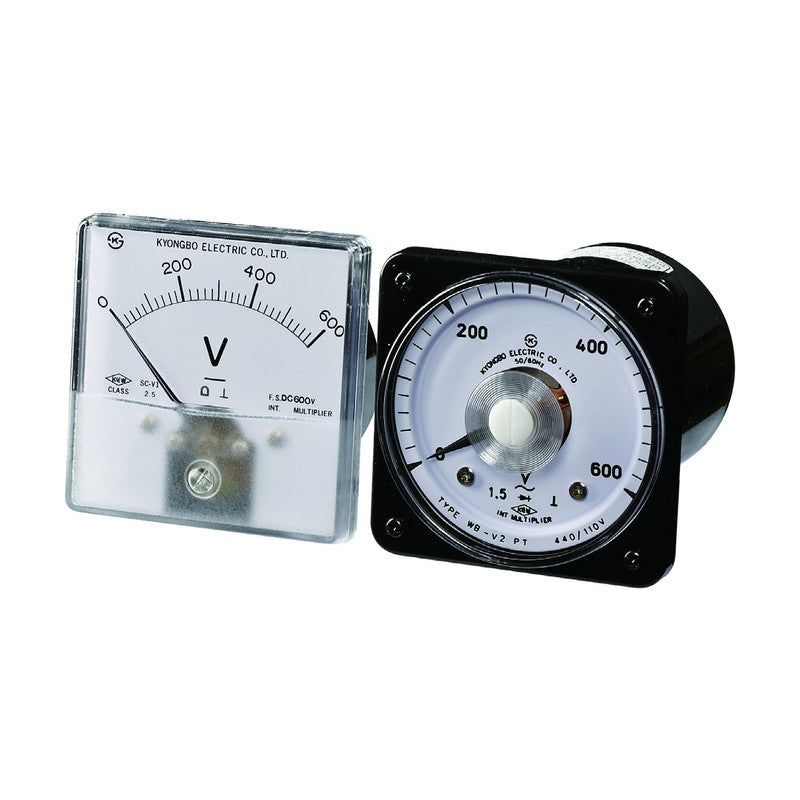

Kyongbo Electric AC Voltmeter V2

Kyongbo Electric AC Voltmeter V2

AC voltmeter in square and wide angle cases; above AC 300 V use with a VT and a 150 V meter.

Key features

  • Moving iron or rectifier type
  • AC 600 V meter available by order

Specifications

Case Color Black (Munsell N1.5)
Dimensions See catalog pages 324-325
Frequency 50/60 Hz
SC-V2 Size: 80 x 80 mm | Scale Form: Square | Input: AC 30-300 V (moving iron, class 2.5%, 5.0 VA) or AC 30-600 V (rectifier, class 1.5%, 0.5 VA) | Weight: approx. 250 g
SB-V2 Size: 100 x 84 mm | Scale Form: Square | Input: AC 30-300 V (moving iron, class 1.5%, 5.0 VA) or AC 30-600 V (rectifier, class 1.5%, 0.5 VA) | Weight: approx. 300 g
SA-V2 Size: 120 x 100 mm | Scale Form: Square | Input: AC 30-300 V (moving iron, class 1.5%, 5.0 VA) or AC 30-600 V (rectifier, class 1.5%, 0.5 VA) | Weight: approx. 350 g
WB-V2 Size: 80 x 80 mm | Scale Form: Wide angle | Input: AC 30-600 V (rectifier) | Accuracy Class: 1.5% | Burden: 0.5 VA | Weight: approx. 320 g
WA-V2 Size: 110 x 110 mm | Scale Form: Wide angle | Input: AC 30-600 V (rectifier) | Accuracy Class: 1.5% | Burden: 0.5 VA | Weight: approx. 450 g
Analog Panel MetersKyongbo Electric
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric AC Voltmeter V2

Brand Kyongbo Electric·Analog Panel Meters

Available part numbers (5)

SC-V2, SB-V2, SA-V2, WB-V2, WA-V2

How to order

Send the Kyongbo Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SC-V2Size: 80 x 80 mm | Scale Form: Square | Input: AC 30-300 V (moving iron, class 2.5%, 5.0 VA) or AC 30-600 V (rectifier, class 1.5%, 0.5 VA) | Weight: approx. 250 g
SB-V2Size: 100 x 84 mm | Scale Form: Square | Input: AC 30-300 V (moving iron, class 1.5%, 5.0 VA) or AC 30-600 V (rectifier, class 1.5%, 0.5 VA) | Weight: approx. 300 g
SA-V2Size: 120 x 100 mm | Scale Form: Square | Input: AC 30-300 V (moving iron, class 1.5%, 5.0 VA) or AC 30-600 V (rectifier, class 1.5%, 0.5 VA) | Weight: approx. 350 g
WB-V2Size: 80 x 80 mm | Scale Form: Wide angle | Input: AC 30-600 V (rectifier) | Accuracy Class: 1.5% | Burden: 0.5 VA | Weight: approx. 320 g
WA-V2Size: 110 x 110 mm | Scale Form: Wide angle | Input: AC 30-600 V (rectifier) | Accuracy Class: 1.5% | Burden: 0.5 VA | Weight: approx. 450 g
