Kyongbo Electric DC Ammeter A1

Kyongbo Electric DC Ammeter A1

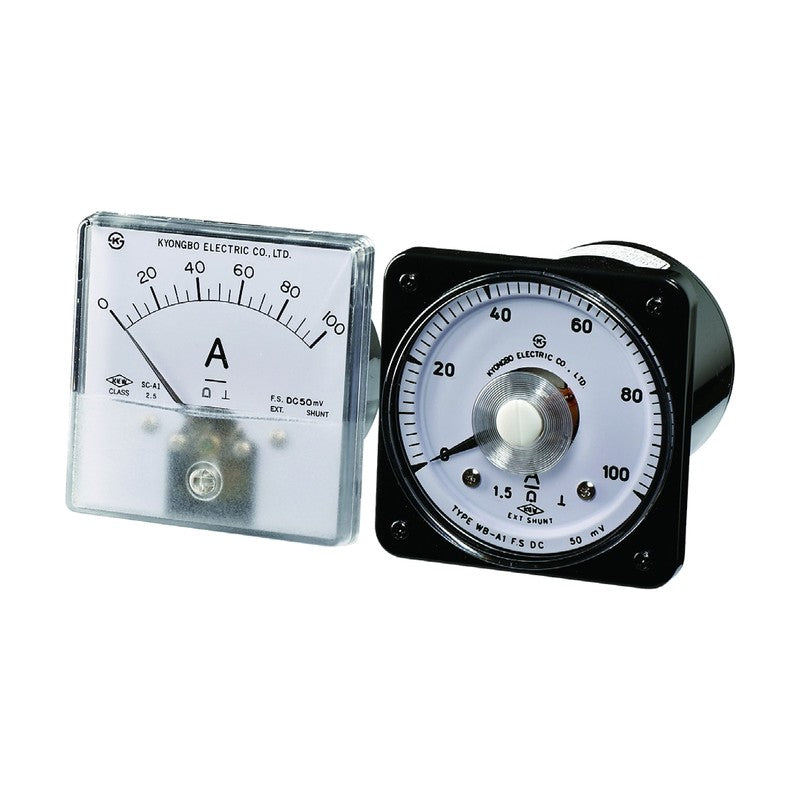

Moving coil DC ammeter in square (S type) and wide angle (W type) cases.

Key features

  • Direct connection 200 uA to 30 A with internal shunt
  • 50 mV or 100 mV input with external shunt up to DC 10000 A

Specifications

Case Color Black (Munsell N1.5)
Dimensions See catalog pages 324-325
Input DC 50 mV (option)
Accuracy Class 1.5%
Burden 50 mV drop
Operating Principle Moving coil
SC-A1 Size: 80 x 80 mm | Scale Form: Square | Weight: approx. 200 g
SB-A1 Size: 100 x 84 mm | Scale Form: Square | Weight: approx. 220 g
SA-A1 Size: 120 x 100 mm | Scale Form: Square | Weight: approx. 260 g
WB-A1 Size: 80 x 80 mm | Scale Form: Wide angle | Weight: approx. 320 g
WA-A1 Size: 110 x 110 mm | Scale Form: Wide angle | Weight: approx. 450 g
Analog Panel MetersKyongbo Electric
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric DC Ammeter A1

Brand Kyongbo Electric·Analog Panel Meters

Available part numbers (5)

SC-A1, SB-A1, SA-A1, WB-A1, WA-A1

How to order

Send the Kyongbo Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SC-A1Size: 80 x 80 mm | Scale Form: Square | Weight: approx. 200 g
SB-A1Size: 100 x 84 mm | Scale Form: Square | Weight: approx. 220 g
SA-A1Size: 120 x 100 mm | Scale Form: Square | Weight: approx. 260 g
WB-A1Size: 80 x 80 mm | Scale Form: Wide angle | Weight: approx. 320 g
WA-A1Size: 110 x 110 mm | Scale Form: Wide angle | Weight: approx. 450 g
