• Kyongbo Electric DC Voltmeter K-MAC DV Series
1 1

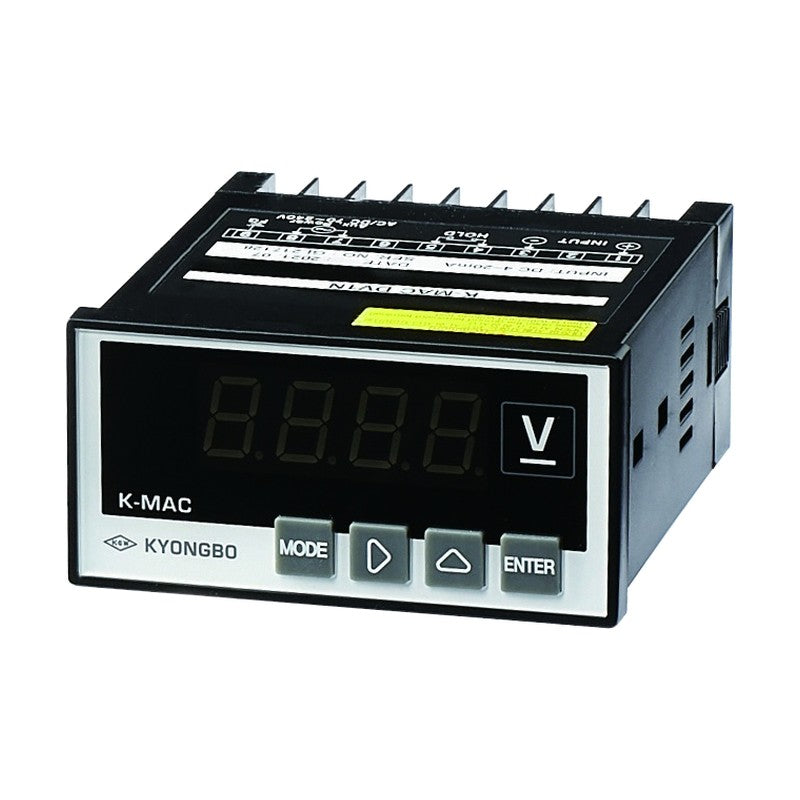

Kyongbo Electric DC Voltmeter K-MAC DV Series

Kyongbo Electric DC Voltmeter K-MAC DV Series

96 x 48 mm digital panel dc voltmeter with 0.56 inch LED display for dc voltage measurement.

Key features

  • 0.56 inch 7-segment LED display, 9999 free range
  • Error correction function, 'HErr' shown on over-range input
  • Programmable display ratio
  • Wide auxiliary power range AC/DC 70-240 V
  • High/low relay outputs and various output signals (T models)
  • RS-485 interface for host system connection (T models)

Specifications

Display 0.56 inch 7-segment LED
Accuracy +/-0.2% FS +/-2 digit
Aux. Power AC/DC 70-240 V (free voltage)
Size (WxHxD) 96 x 48 x 97 mm
Measuring Range 120% of rated input
Display Ratio Programmable
K-MAC DV1N Measuring Function: DC voltage | Input: DC 4-20 mA | Version: Display only
K-MAC DV2N Measuring Function: DC voltage | Input: DC 150 V, 300 V or 600 V | Version: Display only
K-MAC DV1T Measuring Function: DC voltage | Input: DC 4-20 mA | Version: Output signal type | Output: Relay 2a 5 A at AC 250 V / DC 30 V, DC 4-20 mA retransmission, RS-485 Modbus RTU 9600/19200 bps
K-MAC DV2T Measuring Function: DC voltage | Input: DC 150 V, 300 V or 600 V | Version: Output signal type | Output: Relay 2a 5 A at AC 250 V / DC 30 V, DC 4-20 mA retransmission, RS-485 Modbus RTU 9600/19200 bps
Digital Panel MetersKyongbo Electric
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric DC Voltmeter K-MAC DV Series

Brand Kyongbo Electric·Digital Panel Meters

Available part numbers (4)

K-MAC DV1N, K-MAC DV2N, K-MAC DV1T, K-MAC DV2T

How to order

Send the Kyongbo Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
K-MAC DV1NMeasuring Function: DC voltage | Input: DC 4-20 mA | Version: Display only
K-MAC DV2NMeasuring Function: DC voltage | Input: DC 150 V, 300 V or 600 V | Version: Display only
K-MAC DV1TMeasuring Function: DC voltage | Input: DC 4-20 mA | Version: Output signal type | Output: Relay 2a 5 A at AC 250 V / DC 30 V, DC 4-20 mA retransmission, RS-485 Modbus RTU 9600/19200 bps
K-MAC DV2TMeasuring Function: DC voltage | Input: DC 150 V, 300 V or 600 V | Version: Output signal type | Output: Relay 2a 5 A at AC 250 V / DC 30 V, DC 4-20 mA retransmission, RS-485 Modbus RTU 9600/19200 bps
