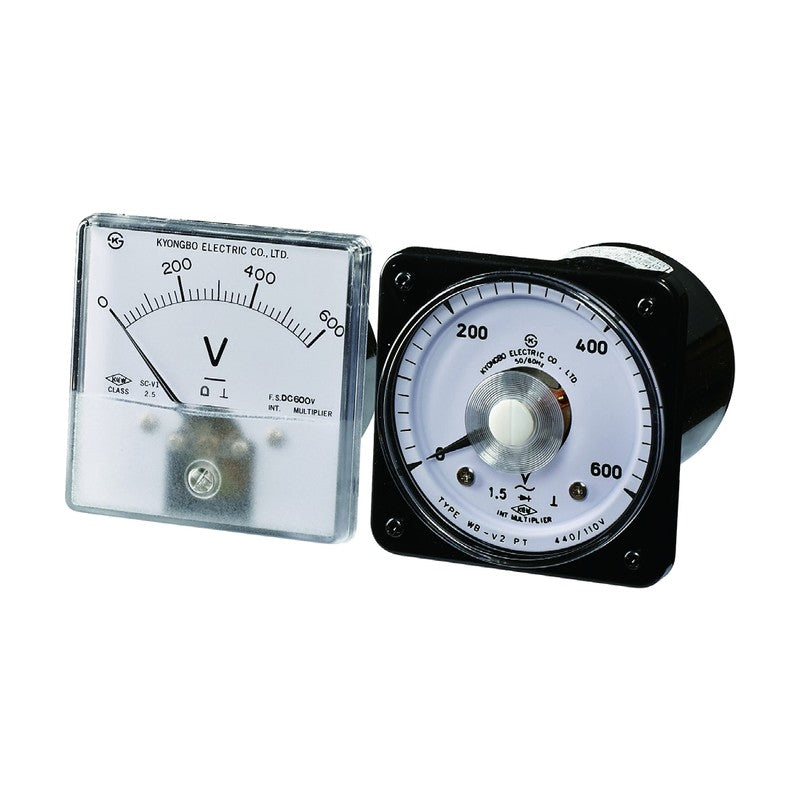

Kyongbo Electric DC Voltmeter V1

Kyongbo Electric DC Voltmeter V1

Moving coil DC voltmeter (1 mA standard sensitivity) in square and wide angle cases.

Key features

  • Use an external multiplier with a 1 mA meter above DC 1500 V

Specifications

Case Color Black (Munsell N1.5)
Dimensions See catalog pages 324-325
Input DC 50 mV to DC 1500 V
Accuracy Class 1.5%
Burden 1 kOhm/V
Operating Principle Moving coil
SC-V1 Size: 80 x 80 mm | Scale Form: Square | Weight: approx. 200 g
SB-V1 Size: 100 x 84 mm | Scale Form: Square | Weight: approx. 250 g
SA-V1 Size: 120 x 100 mm | Scale Form: Square | Weight: approx. 300 g
WB-V1 Size: 80 x 80 mm | Scale Form: Wide angle | Weight: approx. 310 g
WA-V1 Size: 110 x 110 mm | Scale Form: Wide angle | Weight: approx. 440 g
Analog Panel MetersKyongbo Electric
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric DC Voltmeter V1

Brand Kyongbo Electric·Analog Panel Meters

Available part numbers (5)

SC-V1, SB-V1, SA-V1, WB-V1, WA-V1

How to order

Send the Kyongbo Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
SC-V1Size: 80 x 80 mm | Scale Form: Square | Weight: approx. 200 g
SB-V1Size: 100 x 84 mm | Scale Form: Square | Weight: approx. 250 g
SA-V1Size: 120 x 100 mm | Scale Form: Square | Weight: approx. 300 g
WB-V1Size: 80 x 80 mm | Scale Form: Wide angle | Weight: approx. 310 g
WA-V1Size: 110 x 110 mm | Scale Form: Wide angle | Weight: approx. 440 g
