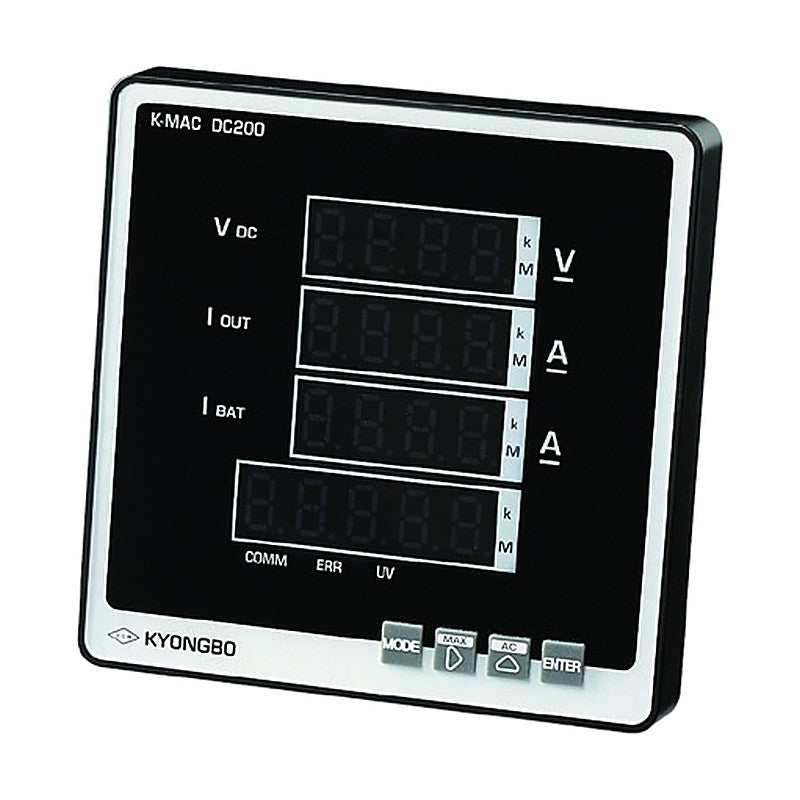

Kyongbo Electric Digital DC Meter K-MAC DC200

Kyongbo Electric Digital DC Meter K-MAC DC200

Digital DC meter for rectifier and battery systems measuring DC voltage, output current, battery current, AC values and THD.

Key features

  • Measuring accuracy 0.3%
  • Measures DC voltage, rectifier output current, battery current, AC values and THD
  • RS-485 Modbus RTU communication
  • Maximum value recording
  • 2 kV insulation between circuits
K-MAC DC200 Rated Voltage: AC 20-500 V, DC 20-300 V | Rated Current: AC 5 A | Frequency: 60 or 50 Hz | Accuracy: 0.3% FS +/-2 digit (DC) | Communication: RS-485 Modbus RTU, 9600/19200/38400 bps | Aux. Power: AC/DC 100-240 V (free voltage) | Size (WxHxD): 144 x 144 x 72.5 mm | Display: 7-segment LED, 4 windows
Digital Power MetersKyongbo Electric
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric Digital DC Meter K-MAC DC200

Brand Kyongbo Electric·Digital Power Meters

Available part numbers (1)

K-MAC DC200

How to order

Send the Kyongbo Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
K-MAC DC200Rated Voltage: AC 20-500 V, DC 20-300 V | Rated Current: AC 5 A | Frequency: 60 or 50 Hz | Accuracy: 0.3% FS +/-2 digit (DC) | Communication: RS-485 Modbus RTU, 9600/19200/38400 bps | Aux. Power: AC/DC 100-240 V (free voltage) | Size (WxHxD): 144 x 144 x 72.5 mm | Display: 7-segment LED, 4 windows
