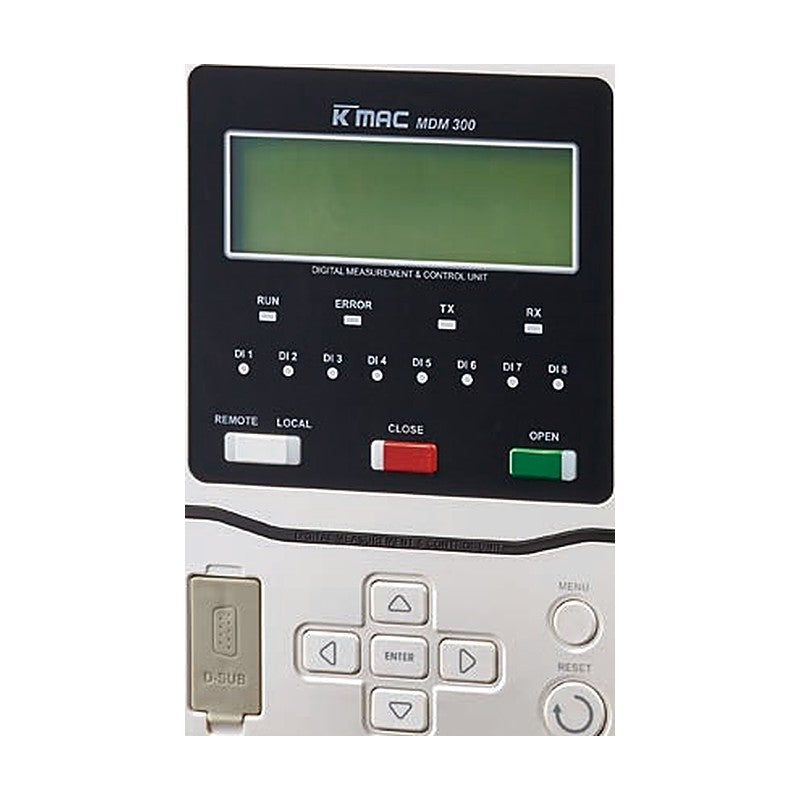

Kyongbo Electric Digital Integrated Metering and Control Equipment K-MAC MDM300

Kyongbo Electric Digital Integrated Metering and Control Equipment K-MAC MDM300

Digital concentrated display and control unit measuring voltage, current, power, power factor, frequency, harmonics, THD, TDD and K-factor with CB control, for solidly grounded and ungrounded systems.

Key features

  • 4 x 20 LCD display of settings and measured values
  • Measurement accuracy 0.2%
  • Digital inputs, digital outputs and CB control
  • Up to 512 event records
  • RS-232C and RS-485 (SCADA) with Modbus RTU
  • Password-protected settings and PC application
K-MAC MDM300 Rated Voltage: AC 110 / 220 V | Rated Current: 0.05-6 A | Frequency: 50 or 60 Hz (programmable) | Accuracy: +/-0.2% FS | Display: 4 x 20 LCD | Digital Inputs: 8 points (CB 52a/52b, AC/DC 110-220 V) | CB Control Output: 16 A at AC 250 V, 30 A at DC 125 V | Digital Outputs: 8 points, 5 A at AC 250 V / DC 30 V | Communication: RS-232C, RS-485 Modbus RTU | Size (WxHxD): 194 x 266 x 120 mm | Weight: 2.5 kg
Digital Power MetersKyongbo Electric
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric Digital Integrated Metering and Control Equipment K-MAC MDM300

Brand Kyongbo Electric·Digital Power Meters

Available part numbers (1)

K-MAC MDM300

How to order

Send the Kyongbo Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
K-MAC MDM300Rated Voltage: AC 110 / 220 V | Rated Current: 0.05-6 A | Frequency: 50 or 60 Hz (programmable) | Accuracy: +/-0.2% FS | Display: 4 x 20 LCD | Digital Inputs: 8 points (CB 52a/52b, AC/DC 110-220 V) | CB Control Output: 16 A at AC 250 V, 30 A at DC 125 V | Digital Outputs: 8 points, 5 A at AC 250 V / DC 30 V | Communication: RS-232C, RS-485 Modbus RTU | Size (WxHxD): 194 x 266 x 120 mm | Weight: 2.5 kg
