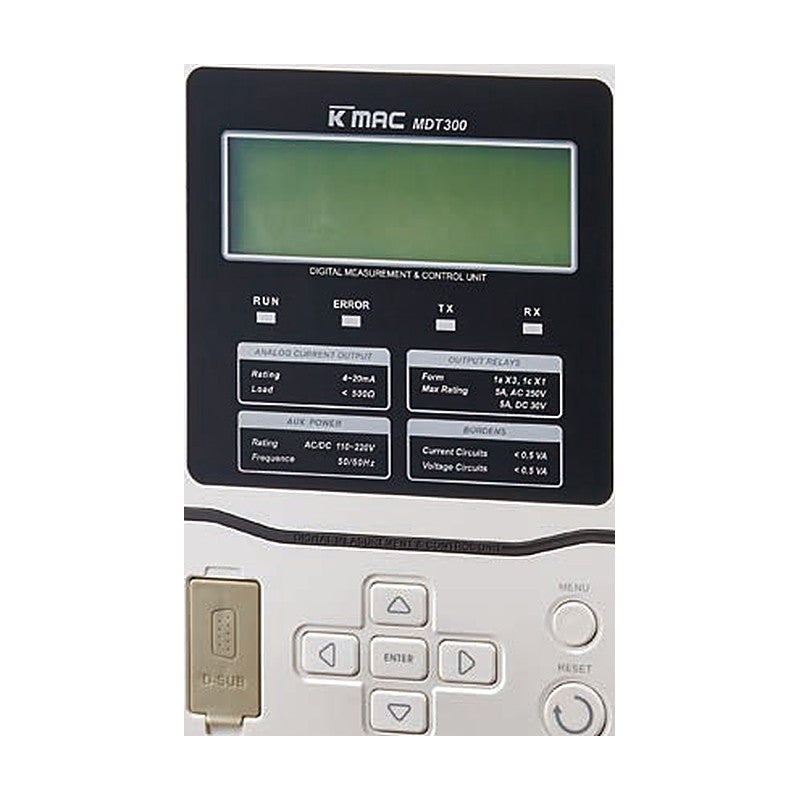

Kyongbo Electric Digital Integrated Transducer K-MAC MDT300

Kyongbo Electric Digital Integrated Transducer K-MAC MDT300

Digital integrated transducer that converts voltage, current, power, power factor and frequency into 12 channels of DC 4-20 mA output and energy into 4 pulse outputs.

Key features

  • 12 channel DC 4-20 mA analog outputs, 26 selectable modes
  • 4 pulse contact outputs, 6 selectable modes
  • 32 samples per cycle calculation
  • 4 x 20 LCD display
  • RS-232C and RS-485 Modbus RTU
  • Event, energy and MIN/MAX recording
K-MAC MDT300 Aux. Power: AC/DC 110-220 V (free voltage) | Frequency: 50 or 60 Hz | Display: 4 x 20 LCD | Current Input: AC 5 A (0-20 A), < 0.5 VA/phase | Voltage Input: AC 110 V (0-190 V), < 0.5 VA/phase | Analog Output: DC 4-20 mA x 12, response < 2 s, load < 500 Ohm, +/-0.5% | Pulse Output: 4 points, 5 A at AC 250 V / DC 30 V | Communication: RS-485, RS-232C, Modbus RTU | Standard: KS C 1708 | Size (WxHxD): 194 x 266 x 120 mm | Weight: 2.5 kg
Power TransducersKyongbo Electric
1 product code available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric Digital Integrated Transducer K-MAC MDT300

Brand Kyongbo Electric·Power Transducers

Available part numbers (1)

K-MAC MDT300

How to order

Send the Kyongbo Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
K-MAC MDT300Aux. Power: AC/DC 110-220 V (free voltage) | Frequency: 50 or 60 Hz | Display: 4 x 20 LCD | Current Input: AC 5 A (0-20 A), < 0.5 VA/phase | Voltage Input: AC 110 V (0-190 V), < 0.5 VA/phase | Analog Output: DC 4-20 mA x 12, response < 2 s, load < 500 Ohm, +/-0.5% | Pulse Output: 4 points, 5 A at AC 250 V / DC 30 V | Communication: RS-485, RS-232C, Modbus RTU | Standard: KS C 1708 | Size (WxHxD): 194 x 266 x 120 mm | Weight: 2.5 kg
