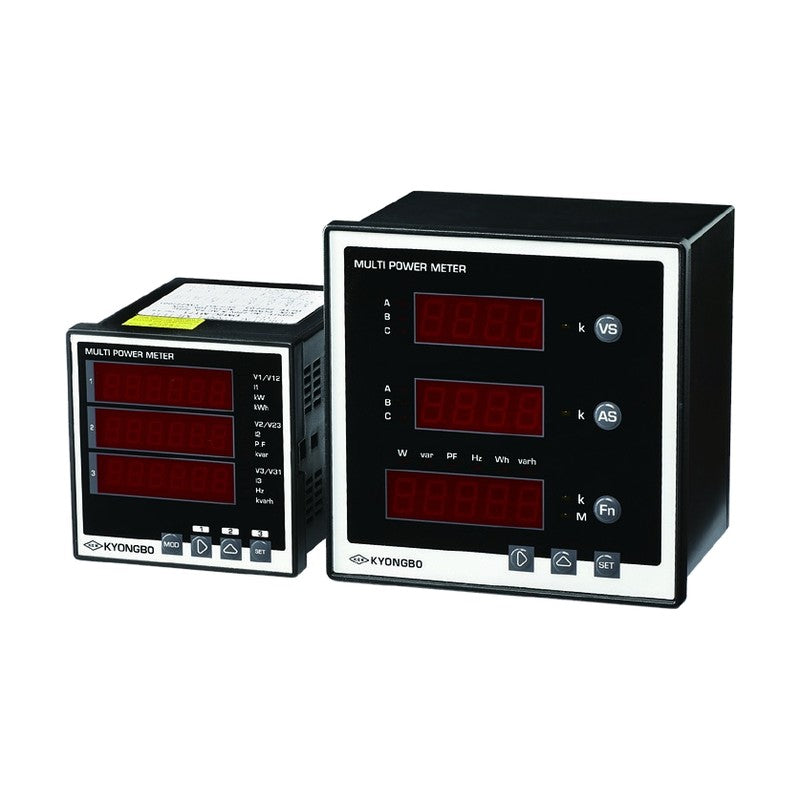

Kyongbo Electric Digital Multi Power Meter DM2 / DM4 MT71

Kyongbo Electric Digital Multi Power Meter DM2 / DM4 MT71

Digital multi power meter measuring voltage, current, power, energy, power factor and frequency of 1-phase and 3-phase circuits on one unit.

Key features

  • Measures V, A, W, var, Wh, varh, PF and Hz
  • Direct display of VT/CT primary-side values
  • Wide auxiliary power range AC/DC 100-240 V
  • RS-485 Modbus RTU communication
  • Stores data at power failure

Specifications

Input Voltage AC 220 V (AC 600 V option) / Current AC 5 A (AC 1 A option)
Wire Connection 1P2W, 1P3W, 3P3W, 3P4W
Measuring Elements V, A, W, var, Wh, varh, PF, Hz
Accuracy +/-0.5% FS (V, A), +/-1.0% FS (power, energy, PF), +/-0.1% FS (Hz)
Aux. Power AC/DC 100-240 V (free voltage)
Display 7-segment LED
DM2C-MT71 Size (WxHxD): 96 x 96 x 115 mm | Max. Indicating: 999999 x 3 lines | Output: RS-485 Modbus RTU 9600 bps
DM2S-MT71 Size (WxHxD): 96 x 96 x 115 mm | Max. Indicating: 999999 x 3 lines | Output: DC 4-20 mA, relay 2a 5 A at AC 250 V, RS-485 Modbus RTU, pulse 80 ms (one element selectable per output)
DM4N-MT71 Size (WxHxD): 144 x 144 x 112 mm | Max. Indicating: 9999 x 2 lines, 99999 x 1 line | Output: None (display only)
DM4C-MT71 Size (WxHxD): 144 x 144 x 112 mm | Max. Indicating: 9999 x 2 lines, 99999 x 1 line | Output: RS-485 Modbus RTU 9600 bps
Digital Power MetersKyongbo Electric
4 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric Digital Multi Power Meter DM2 / DM4 MT71

Brand Kyongbo Electric·Digital Power Meters

Available part numbers (4)

DM2C-MT71, DM2S-MT71, DM4N-MT71, DM4C-MT71

How to order

Send the Kyongbo Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
DM2C-MT71Size (WxHxD): 96 x 96 x 115 mm | Max. Indicating: 999999 x 3 lines | Output: RS-485 Modbus RTU 9600 bps
DM2S-MT71Size (WxHxD): 96 x 96 x 115 mm | Max. Indicating: 999999 x 3 lines | Output: DC 4-20 mA, relay 2a 5 A at AC 250 V, RS-485 Modbus RTU, pulse 80 ms (one element selectable per output)
DM4N-MT71Size (WxHxD): 144 x 144 x 112 mm | Max. Indicating: 9999 x 2 lines, 99999 x 1 line | Output: None (display only)
DM4C-MT71Size (WxHxD): 144 x 144 x 112 mm | Max. Indicating: 9999 x 2 lines, 99999 x 1 line | Output: RS-485 Modbus RTU 9600 bps
