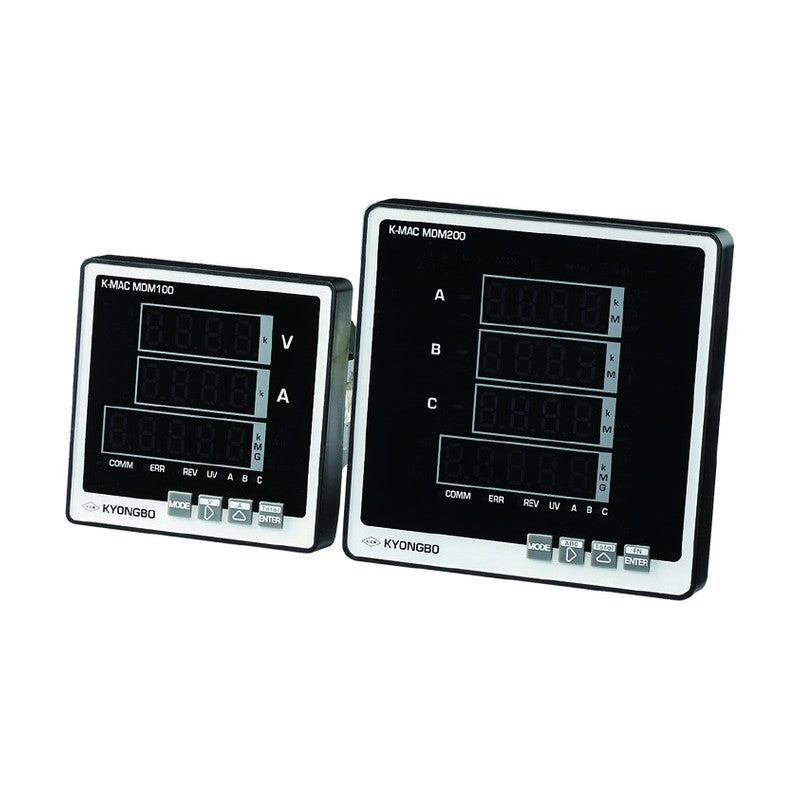

Kyongbo Electric Digital Multi Power Meter K-MAC MDM100 / MDM200

Kyongbo Electric Digital Multi Power Meter K-MAC MDM100 / MDM200

Digital multi power meter for switchboards and SCADA panels measuring voltage, current, power, energy, power factor, frequency and demand.

Key features

  • Measuring accuracy 0.2%
  • Measures V, A, W, var, VA, Wh, varh, PF, Hz and demand
  • Direct display of VT/CT primary-side values
  • RS-485 Modbus RTU communication option
  • Maximum/minimum value recording

Specifications

Input AC current / AC voltage (3 elements), rated AC 220 V / AC 5 A
Accuracy 0.2% FS +/-2 digit (V, A), class 0.5 (power)
Aux. Power AC/DC 100-240 V (free voltage)
Communication RS-485 Modbus RTU (option), 9600/19200/38400 bps
Display 7-segment LED
K-MAC MDM100 Case Size (WxHxD): 110 x 110 x 72.5 mm | Measurement: Phase/line voltage, current, phase angle, total power and energy
K-MAC MDM200 Case Size (WxHxD): 144 x 144 x 72.5 mm | Measurement: Adds average values, per-phase power, demand and extended elements
Digital Power MetersKyongbo Electric
2 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric Digital Multi Power Meter K-MAC MDM100 / MDM200

Brand Kyongbo Electric·Digital Power Meters

Available part numbers (2)

K-MAC MDM100, K-MAC MDM200

How to order

Send the Kyongbo Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
K-MAC MDM100Case Size (WxHxD): 110 x 110 x 72.5 mm | Measurement: Phase/line voltage, current, phase angle, total power and energy
K-MAC MDM200Case Size (WxHxD): 144 x 144 x 72.5 mm | Measurement: Adds average values, per-phase power, demand and extended elements
