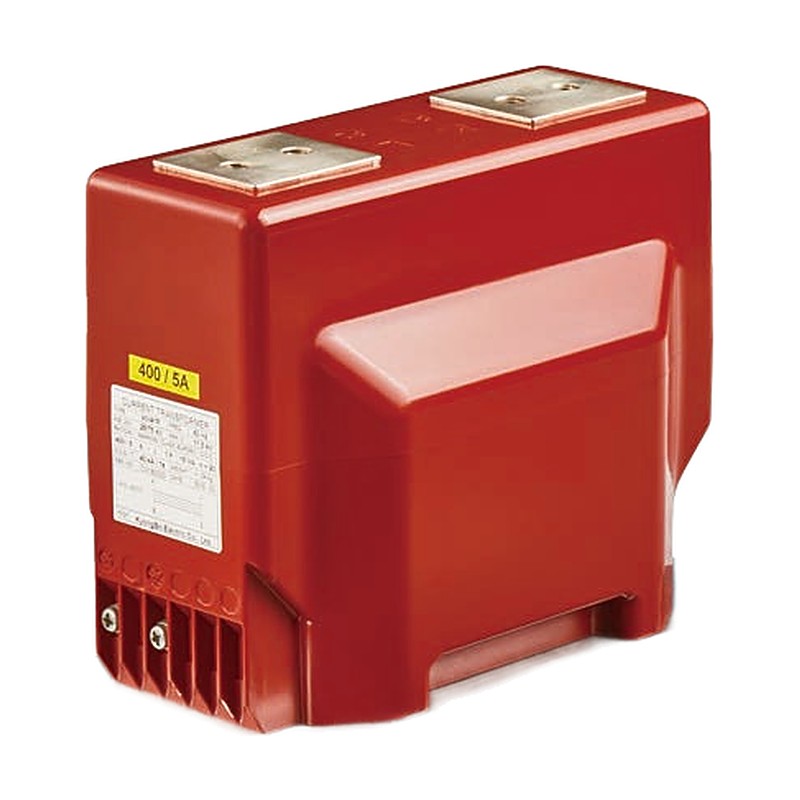

Kyongbo Electric DIN Type Indoor Winding Current Transformer 12 kV WV41 Series

Kyongbo Electric DIN Type Indoor Winding Current Transformer 12 kV WV41 Series

Indoor epoxy vacuum-molded winding-type current transformer built to DIN 42600-8 dimensions, 12 kV class, for metering and protection.

Key features

  • For metering and protection
  • Indoor use
  • Winding type
  • Dimensional standard DIN 42600-8
  • Epoxy vacuum molding insulation
  • 1-core and 2-core versions

Specifications

Rated Secondary Current 5 A or 1 A
Rated Frequency 60 Hz (others on request)
Standards KS C 1706, JEC 1201, IEC 61869-2 (IEEE C57.13 on request)
WV41 Service: Metering | Cores: 1 | Ratio: Single | Max. Voltage / Insulation (KS C 1706): 11.5 kV; 11.5/28/75 kV (10B) | Max. Voltage / Insulation (IEC 61869-2): 12 kV; 12/28/75 kV | Short-Time Current: up to 40 kA / 1 s | Rated Primary Current: up to 1200 A | Rated Burden: 15~40 VA | Accuracy Class: 1.0 | Continuous Thermal Current: 1.2 In | Weight: approx. 24 kg
WV41D Service: Metering | Cores: 1 | Ratio: Double (on request) | Max. Voltage / Insulation (KS C 1706): 11.5 kV; 11.5/28/75 kV (10B) | Short-Time Current: up to 40 kA / 1 s | Rated Primary Current: up to 1200 A | Rated Burden: 15~40 VA | Accuracy Class: 1.0 | Weight: approx. 24 kg
WV41R Service: Protection | Cores: 1 | Ratio: Single | Max. Voltage / Insulation (JEC 1201): 11.5 kV; 11.5/28/75 kV | Max. Voltage / Insulation (IEC 61869-2): 12 kV; 12/28/75 kV | Short-Time Current: up to 40 kA / 1 s | Rated Primary Current: up to 1200 A | Rated Burden: 15~30 VA | Accuracy Class: 1P (JEC) / 5P, 10P (IEC) | Over-Current Factor: n>10 or 20 | Weight: approx. 24 kg
WV41DR Service: Protection | Cores: 1 | Ratio: Double (on request) | Max. Voltage / Insulation (JEC 1201): 11.5 kV; 11.5/28/75 kV | Short-Time Current: up to 40 kA / 1 s | Rated Primary Current: up to 1200 A | Rated Burden: 15~30 VA | Accuracy Class: 1P (JEC) / 5P, 10P (IEC) | Over-Current Factor: n>10 or 20 | Weight: approx. 24 kg
2WV41R Service: Metering and Protection | Cores: 2 | Ratio: Single | Max. Voltage / Insulation (IEC 61869-2): 12 kV; 12/28/75 kV | Short-Time Current: up to 40 kA / 1 s | Rated Primary Current: up to 1200 A | Accuracy Class: 1.0/1P (JEC) / 1.0/5P, 1.0/10P (IEC) | Rated Burden: 15/15 or 25/25 VA (JEC) / 15/15 or 30/30 VA (IEC)
Current TransformersKyongbo Electric
5 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric DIN Type Indoor Winding Current Transformer 12 kV WV41 Series

Brand Kyongbo Electric·Current Transformers

Available part numbers (5)

WV41, WV41D, WV41R, WV41DR, 2WV41R

How to order

Send the Kyongbo Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
WV41Service: Metering | Cores: 1 | Ratio: Single | Max. Voltage / Insulation (KS C 1706): 11.5 kV; 11.5/28/75 kV (10B) | Max. Voltage / Insulation (IEC 61869-2): 12 kV; 12/28/75 kV | Short-Time Current: up to 40 kA / 1 s | Rated Primary Current: up to 1200 A | Rated Burden: 15~40 VA | Accuracy Class: 1.0 | Continuous Thermal Current: 1.2 In | Weight: approx. 24 kg
WV41DService: Metering | Cores: 1 | Ratio: Double (on request) | Max. Voltage / Insulation (KS C 1706): 11.5 kV; 11.5/28/75 kV (10B) | Short-Time Current: up to 40 kA / 1 s | Rated Primary Current: up to 1200 A | Rated Burden: 15~40 VA | Accuracy Class: 1.0 | Weight: approx. 24 kg
WV41RService: Protection | Cores: 1 | Ratio: Single | Max. Voltage / Insulation (JEC 1201): 11.5 kV; 11.5/28/75 kV | Max. Voltage / Insulation (IEC 61869-2): 12 kV; 12/28/75 kV | Short-Time Current: up to 40 kA / 1 s | Rated Primary Current: up to 1200 A | Rated Burden: 15~30 VA | Accuracy Class: 1P (JEC) / 5P, 10P (IEC) | Over-Current Factor: n>10 or 20 | Weight: approx. 24 kg
WV41DRService: Protection | Cores: 1 | Ratio: Double (on request) | Max. Voltage / Insulation (JEC 1201): 11.5 kV; 11.5/28/75 kV | Short-Time Current: up to 40 kA / 1 s | Rated Primary Current: up to 1200 A | Rated Burden: 15~30 VA | Accuracy Class: 1P (JEC) / 5P, 10P (IEC) | Over-Current Factor: n>10 or 20 | Weight: approx. 24 kg
2WV41RService: Metering and Protection | Cores: 2 | Ratio: Single | Max. Voltage / Insulation (IEC 61869-2): 12 kV; 12/28/75 kV | Short-Time Current: up to 40 kA / 1 s | Rated Primary Current: up to 1200 A | Accuracy Class: 1.0/1P (JEC) / 1.0/5P, 1.0/10P (IEC) | Rated Burden: 15/15 or 25/25 VA (JEC) / 15/15 or 30/30 VA (IEC)
