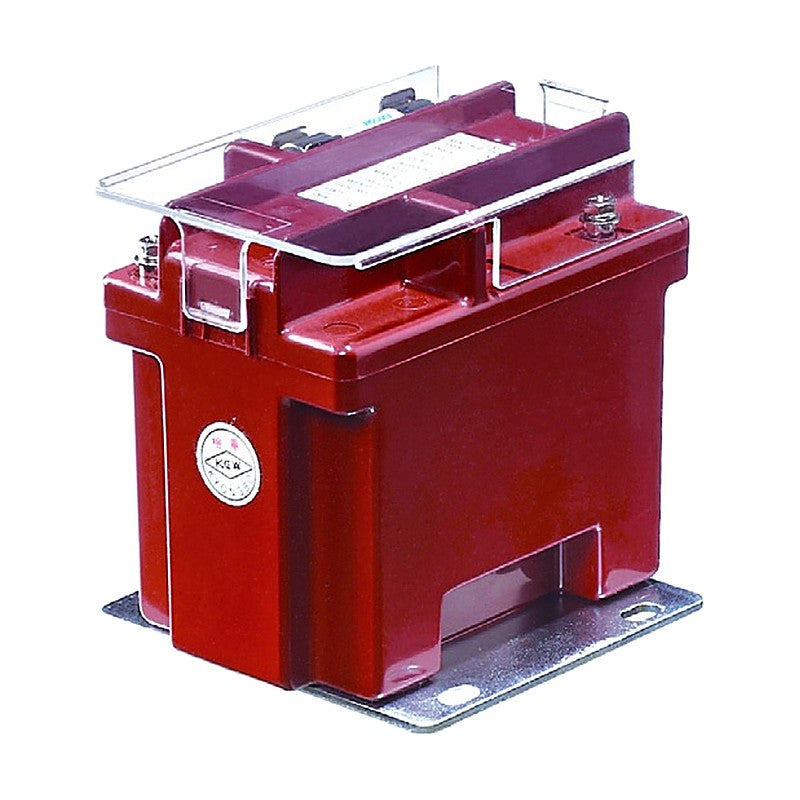

Kyongbo Electric Earthed Voltage Transformer 1.15 kV NL Series

Kyongbo Electric Earthed Voltage Transformer 1.15 kV NL Series

Single-phase line-to-earth epoxy molded voltage transformer for 1.15 kV class metering and protection, with residual winding on T models.

Key features

  • For metering and protection
  • Indoor use
  • Single phase, line-to-earth voltage transformer
  • Epoxy molded insulation
  • Residual (tertiary) winding on T models

Specifications

Standard KS C 1706 / JEC 1201 / IEC 61869-3
Max. Voltage 0.23-1.15 kV (KS/JEC), 0.72 kV (IEC)
Primary Voltage 110/sqrt3-480/sqrt3 V
Secondary Voltage 110/sqrt3 or 190/sqrt3 V
Tertiary Voltage 110/3 or 190/3 V (T models)
Frequency 60 Hz (others on request)
Case Flame retardant ABS
NL23 Class 1.0 (1P) Burden: 50 VA | Weight: approx. 4.5 kg
NL25 Class 0.5 Burden: 50 VA | Class 1.0 (1P) Burden: 100 VA | Weight: approx. 6.5 kg
NL26 Class 0.5 Burden: 100 VA | Class 1.0 (1P) Burden: 200 VA | Class 3.0 (3P) Burden: 500 VA | Weight: approx. 9.5 kg
NL23T Class 1P/3G Burden: 50/100 VA | Weight: approx. 4.5 kg
NL25T Class 1P/3G Burden: 100/200 VA | Class 1.0/3P Burden: 50/100 VA | Weight: approx. 6.5 kg
NL26T Class 1P/3G Burden: 200/500 VA | Class 1.0/3P Burden: 100/200 VA | Weight: approx. 9.5 kg
Voltage TransformersKyongbo Electric
6 product codes available in this family
Sourced direct from KoreaExport-ready supplyCompetitive pricing
RFQ List 0 Email about this

Need a different model, or a part not listed here? Send us your parts list →

Kyongbo Electric Earthed Voltage Transformer 1.15 kV NL Series

Brand Kyongbo Electric·Voltage Transformers

Available part numbers (6)

NL23, NL25, NL26, NL23T, NL25T, NL26T

How to order

Send the Kyongbo Electric part numbers and quantities through our RFQ form or to info@prosourcemro.com. We confirm price, availability and lead time within 1 business day — no account needed.

RFQ List 0 →
View full details
Product codes & specifications
0 selected
RFQ List (0)
Product codeSpec
NL23Class 1.0 (1P) Burden: 50 VA | Weight: approx. 4.5 kg
NL25Class 0.5 Burden: 50 VA | Class 1.0 (1P) Burden: 100 VA | Weight: approx. 6.5 kg
NL26Class 0.5 Burden: 100 VA | Class 1.0 (1P) Burden: 200 VA | Class 3.0 (3P) Burden: 500 VA | Weight: approx. 9.5 kg
NL23TClass 1P/3G Burden: 50/100 VA | Weight: approx. 4.5 kg
NL25TClass 1P/3G Burden: 100/200 VA | Class 1.0/3P Burden: 50/100 VA | Weight: approx. 6.5 kg
NL26TClass 1P/3G Burden: 200/500 VA | Class 1.0/3P Burden: 100/200 VA | Weight: approx. 9.5 kg
